Example Log Printout:
Date and Time,
02/23/2001 11:33:56, 24.9,
02/23/2001 11:34:56, 24.9,
02/23/2001 11:35:56, 25.0,
Synergy Controller Technical Manual, Revision H
CH1Actual, CH2Actual, CH1Setpoint, CH2Setpoint
48.0,
50.0,
51.8,
25.0 50.0
25.0 50.0
25.0 50.0

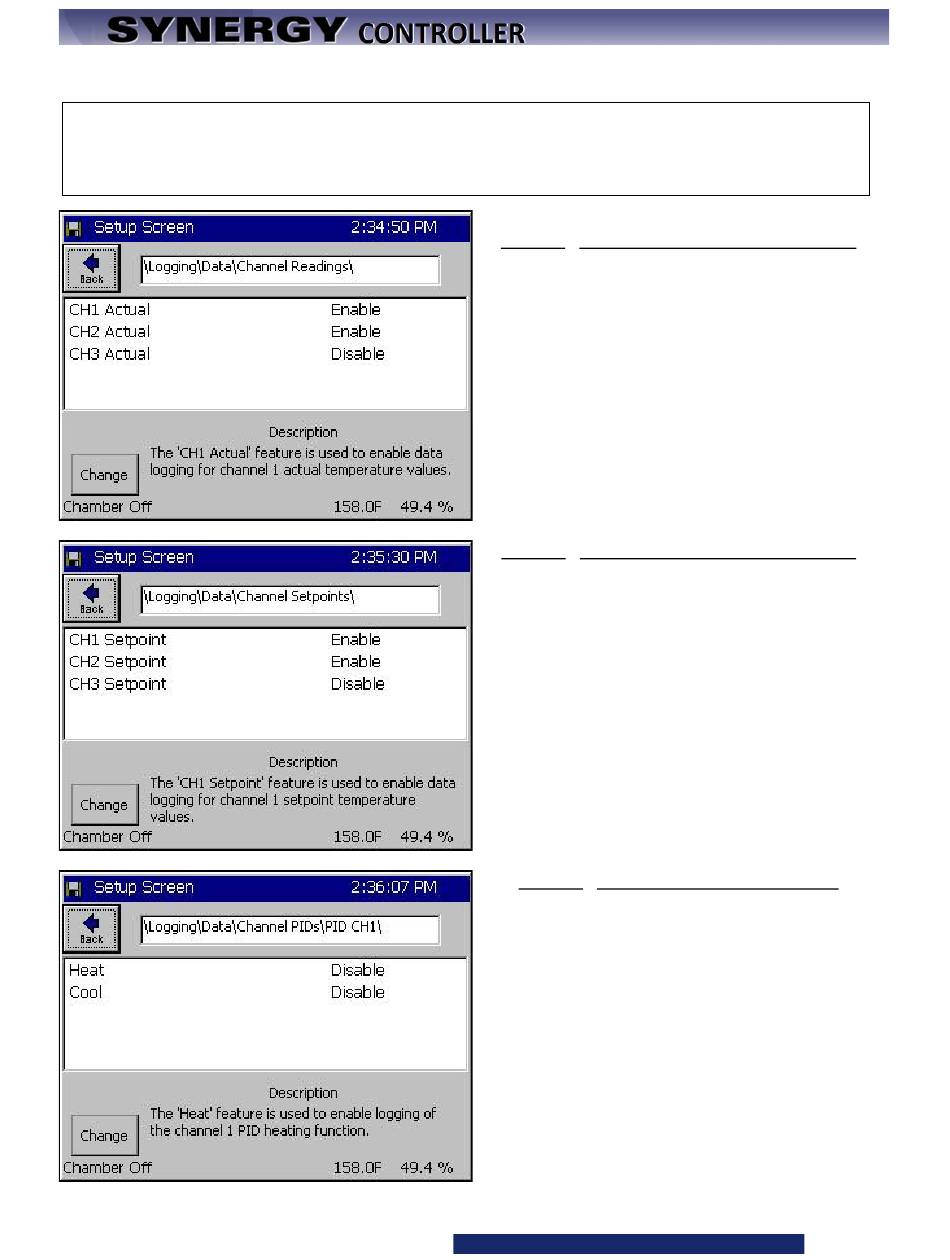

Step #2: Select the Channel Readings Folder
Use this screen to select the process values for
each selected channel for logging. Select the
channel, press the Change button, and select
Enable in the screen that follows.
♦
Return to the Logging / Data directory by
pressing the Back button.
Step #3: Select the Channel Setpoints Folder
Use this screen to enable setpoint logging for
each channel. Select the channel, press the
Change button.
Step #4: Select the Channel PIDs Folder
Control the logging of the Heat and Cool PIDs
for Channel n from this screen. These values
can be viewed in the Channel PIDs screen of the
Maintenance directory.
After selecting the Channel PIDs folder, another
screen appears that has three folders labeled
PID CH1, PID CH2, and CH3 PID.
Select the desired channel folder. The screen at
the left appears. Select Heat or Cool, press the
Change button. Return to the Logging\Data
directory by pressing the Back button.
