UUT Module Setup Procedure
This is the installation and setup procedure for one or more UUT (Unit-Under-Test) modules. If a UUT
module is already installed in your chamber, go to Step 9 in this Procedure for instructions for viewing your
thermocouple temperature readings on the Synergy Controller touch-screen. Refer to the UUT Module –
Board and Connector Layout Drawing at the end of this section.
UUT Module Specifications
♦ Up to four UUT Modules can be used with the Synergy Controller.
♦ Each module can accept up to 16 thermocouple inputs for a total of 64 inputs.
♦ The UUT module uses Type T Thermocouples.
♦ RS-485 Data Communications are used to communicate with each UUT Module.
Hardware Connections
Disconnect power to the test chamber before starting. Lock-out / Tag-out your power source.
Follow the steps below to configure the UUT Module and to make necessary connections.
♦ Power Supply Cord: Black 2-wire cord with plug-in transformer, connected to Terminal Block P1.
♦ RS-485 Interconnect 9-conductor ribbon cable, connected to Connector P6.

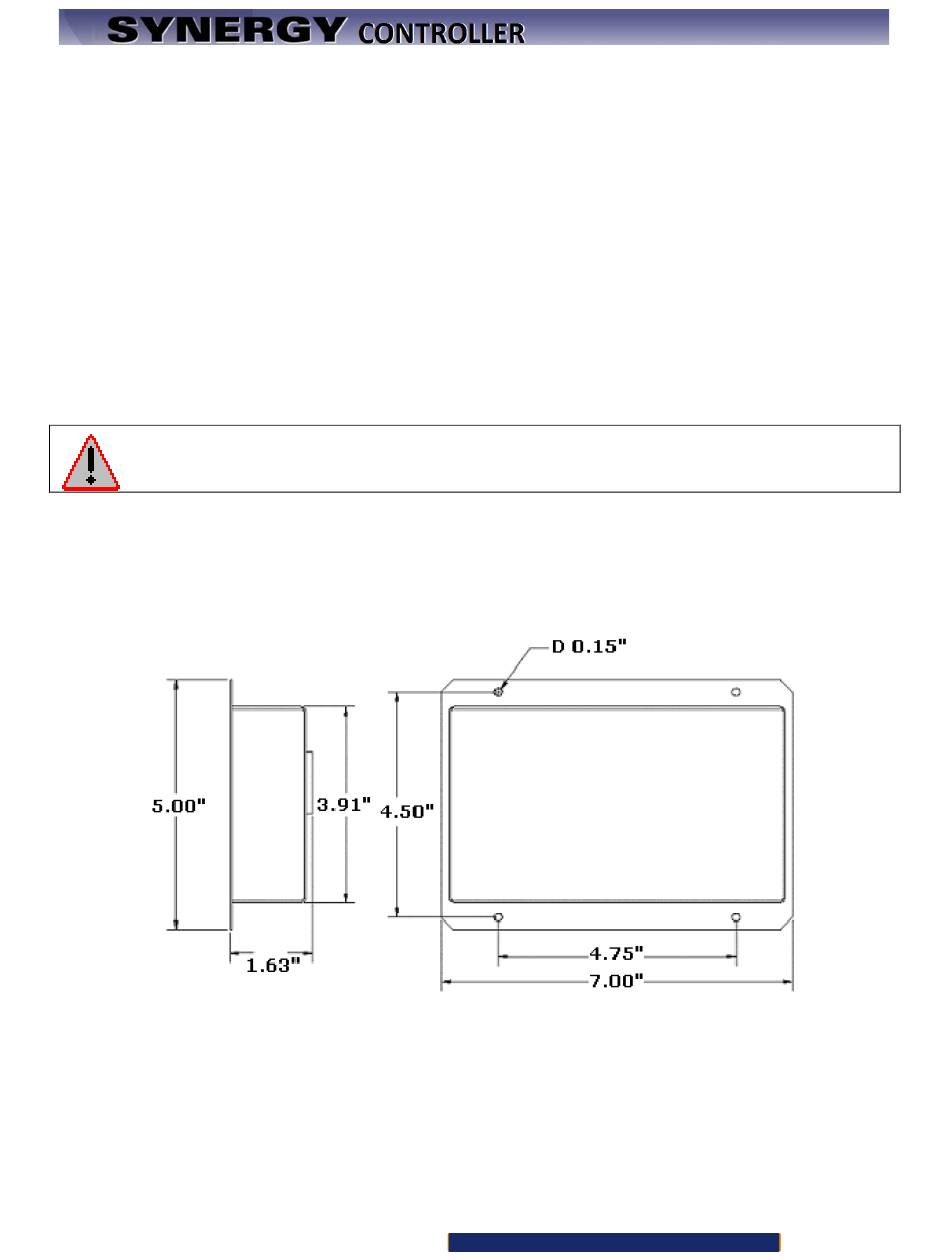

UUT Module Mechanical Drawing
