19.0 APPENDIX C DELIVERING RESULTS

This section provides an overview of the logging system features and applications which help the Synergy
Controller "Delivers Test Results"; i.e. create individual log files for each test and deliver them automatically
in either table (CSV) or chart (PDF) format over the network.

19.1 Network Printing

The network plotting capabilities of the Synergy family provide documentation and reporting efficiencies
that can enhance the performance of virtually any organization. These features automatically generate and
plot test data to a network printer and/or to a PDF file. PDF plots can be automatically e-mailed to up to
five recipients or viewed with a standard web browser using the Synergy Controller WebTouch™ Remote
feature. See Synergy Controller Application Note 90
The Synergy Controller is designed to send plots to an HPCL capable printer with an Ethernet port such as
the HP LaserJet Pro CP1525nw used in this example. The HP LaserJet Pro CP1525nw is a workgroup color
printer that prints up to 12 ppm, with a resolution of 600 x 600 dpi. Note: This network plotting feature
requires a minimum software version 3.0.2. Contact the factory to inquire about software upgrades for
your Synergy Micro 2, Synergy Quattro, or Synergy Nano controller.
To Setup the controller and the printer follow these steps:
Synergy Controller Technical Manual, Revision H
Printer Setup

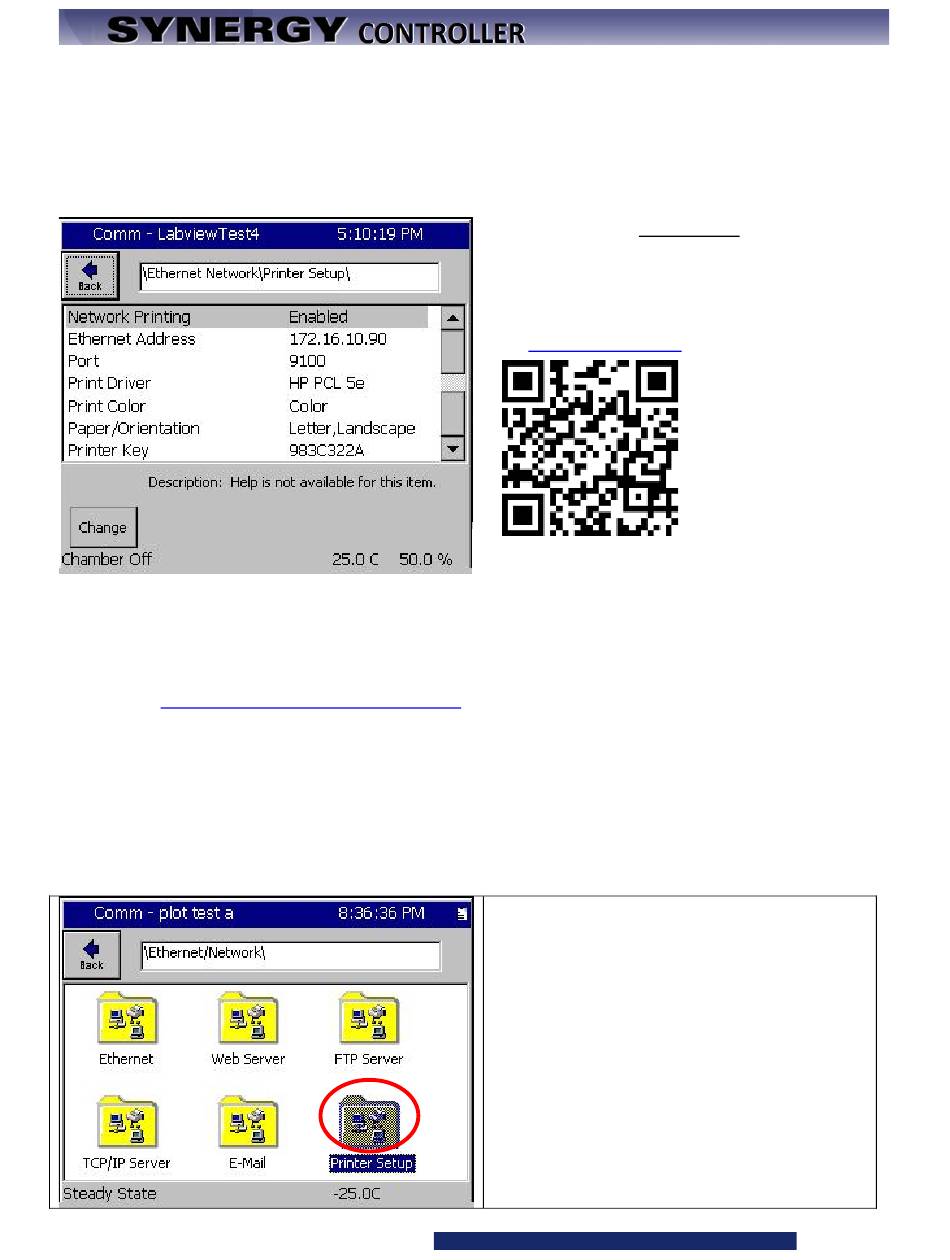

Setup the Network Printer parameter as shown on
the left according to your printer.
See Application Note 84
for detailed setup and examples.
Open up the Synergy Controller Comm screen
and browse to the Printer Setup folder as
shown at the left.
Page 304
