5.3.6 Events Screen

The Events screen is used at various times by OEMs and technicians, engineers and operators.
The OEM and Chamber Technician will utilize all of the Events screens during the chamber setup and
testing.
The Engineer/Operator uses the Events screen to monitor and control the user defined Event Outputs.
UUT Temperatures folder is used to display up to 64 T-Type Thermocouple from the UUT Thermocouple
monitoring system.
The Digital Outputs folder is a visual display of all of the controller outputs and the Digital Inputs folder is a
visual display of all of the controller inputs.
The High and Low Resolution analog inputs screens display all of the controller sensor input; i.e. RTDs,
Pressure transducers, Humidity Sensors, Vibration, Pressure and altitude sensors.
Synergy Controller Technical Manual, Revision H

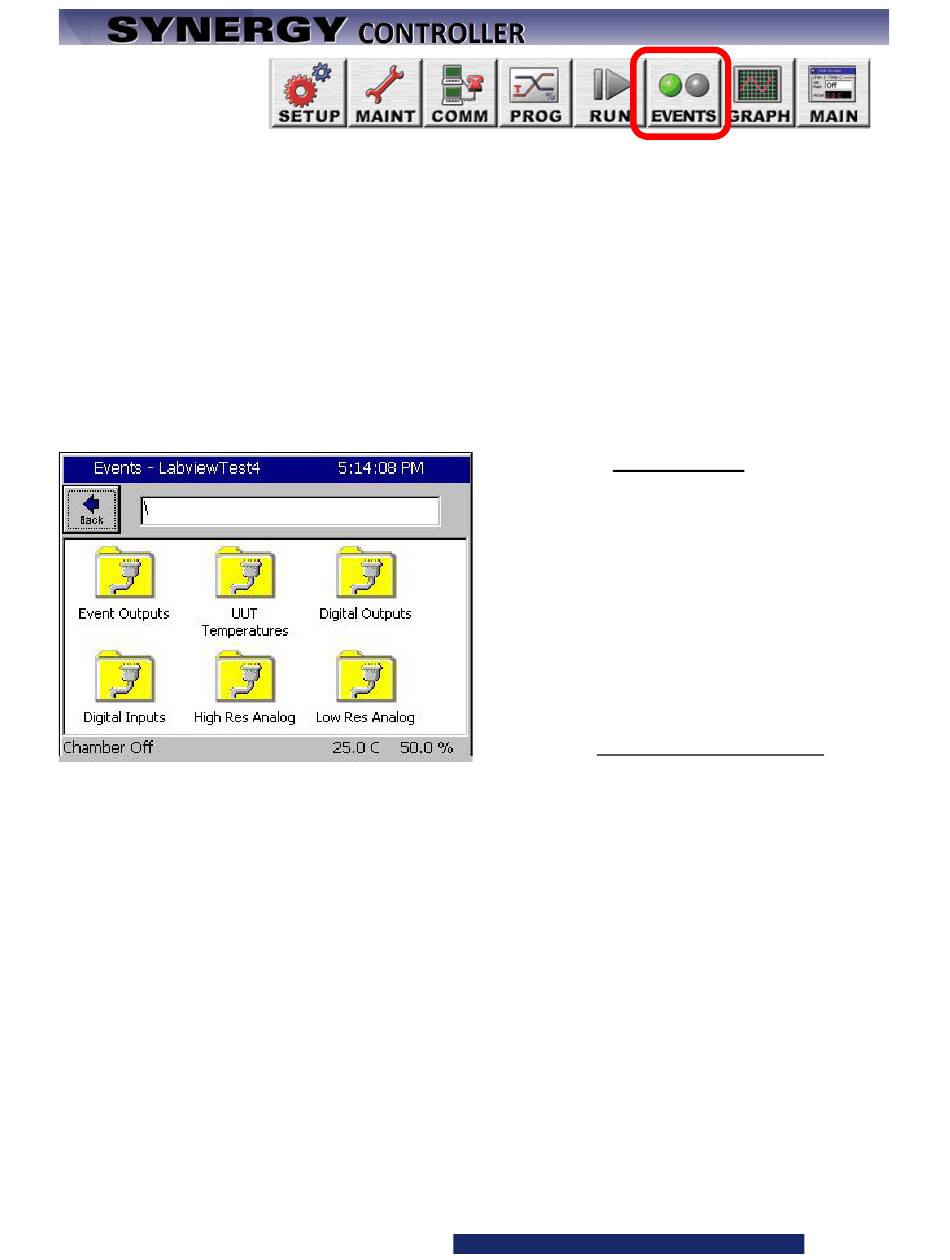

EVENTS Screen
Provides access to four different Events folders.
♦
Event Outputs
♦
UUT Temperatures
♦
Digital Outputs
♦
Digital Inputs
♦
High Resolution Analog (Inputs)
♦
Low Resolution Analog (Inputs)
Details are in Section 11.0 Events Directory.
Page 33
