22.2 Output Board Options

P/N Model
TE1151-12 Triac Output Board, 12 Channel
TE1151-6 Triac Output Board, 6 Channel
TE1151-5 Triac Output Board, 5 Channel
TE1708-6 Relay Output Board, 6 Channel
TE2251 Synergy Quattro SSR Module
BTA40-800B TRIAC 800V 40A RD-91

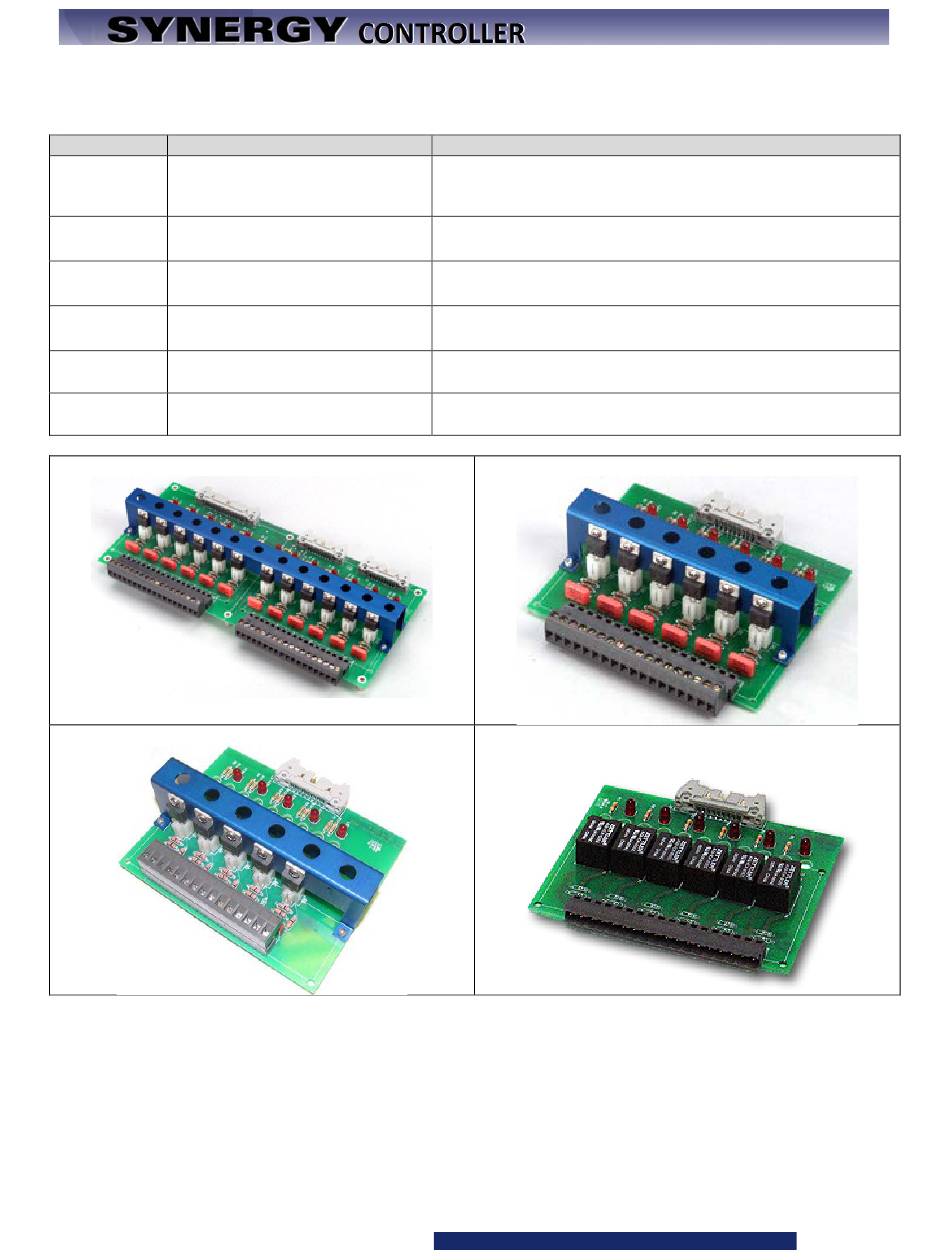

TE1151-12, Triac Output Board, 12 Channel
TE1151-5, Triac Output Board, 5 Channel
Synergy Controller Technical Manual, Revision H
Description
Outputs: 12
Load: 6 Amps, 110 - 220 VAC.
Features: Drive external triacs for larger loads
Control up to six (6) 6 Ampere AC loads, 110 - 220 VAC,
and drive external triacs for larger loads
Control up to five (5) 6 Ampere AC loads, 110 - 220 VAC,
For VersaTenn III Retrofit
Control up to six (6) 6 Ampere AC loads 110 - 220 VAC, or
DC Loads, or control signals
Synergy Quattro SSR Module, 5-Channel
Adapts directly to VersaTenn III SSR Plug.
Used with TE1151 series to create low cost SSR that can
drive compressors.
TE1151-6, Triac Output Board, 6 Channel
TE1708-6, Relay Output Board, 6 Channel
