14.4 UUT Thermocouple Data Acquisition Module Option

The UUT Module (Unit-Under-Test) is a 16-channel T-Type thermocouple data acquisition unit. Developed to
expand the input capabilities of the Synergy Controller, each UUT module allows system operators to
capture and log temperature data from the unit-under-test and other pertinent test temperatures. Up to four
modules can be attached to the Synergy Controller providing up to 64 T-Type thermocouple inputs. The
UUT data can optionally be logged and the log file may be used for analysis, graphing and reporting.
UUT Module Applications
The UUT module can be used to monitor and record multiple air temperatures and multiple product
temperatures. The controller can also control from any one of the UUT Sensor inputs.
UUT modules are particularly useful when testing products with a large thermal mass whose temperature is
slow to change. When used in conjunction with the Synergy Controller's Cascade control feature, the user
can program the chamber to ramp to temperature setpoints and Waitfor product temperature instead of the
chambers air temperature.
Synergy Controller Technical Manual, Revision H

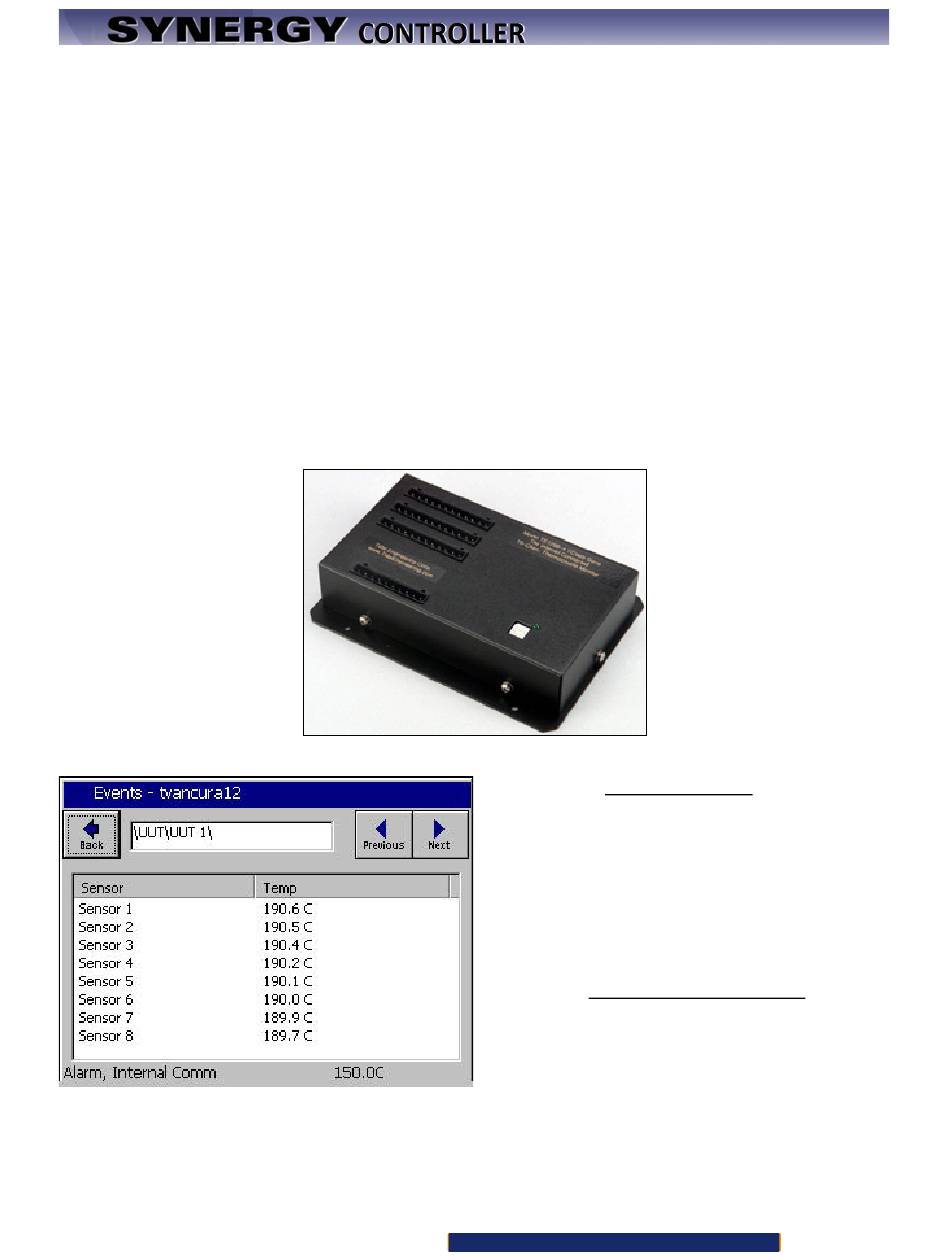

UUT Module
For UUT Modules 1 thru 8, the EVENTS\UUT
screen shows actual temperature readings of
Sensors 1 thru 8 for each UUT.
Select UUT 1 thru UUT 8 with Next or Previous
buttons.
As mentioned above, these sensors may be
logged. See Section 6.11 Setup:
UUT Temperatures
Logging.
Page 167
