Example 3
This example demonstrates the controller's setpoint query command and multi-command capability.
To setup this example we connected to the chamber as we did in Example 1, then performed the following
steps.

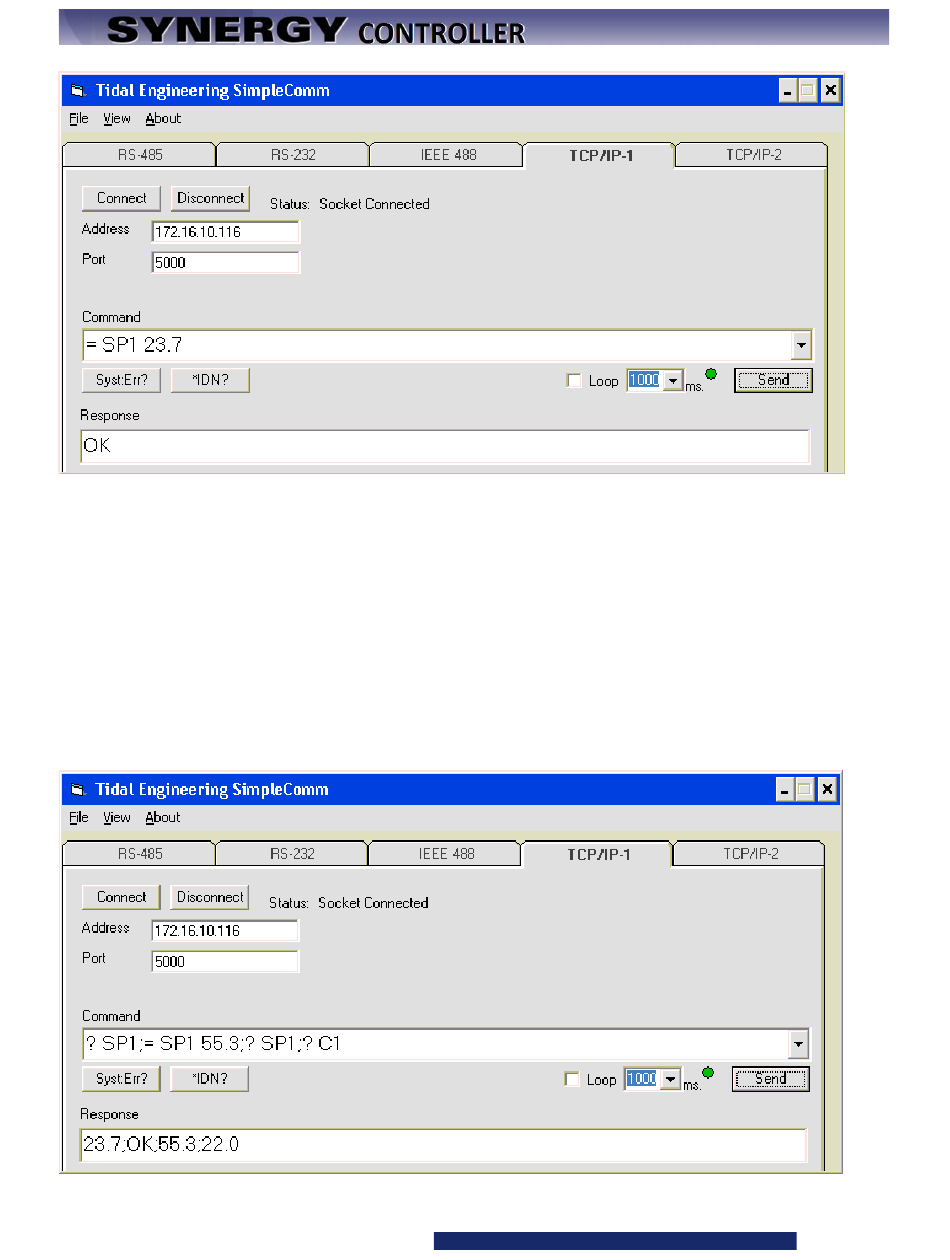

1. Type "? SP1;= SP1 55.3;? SP1;? C1" in the Command field. Note the spaces between parameters
and the semicolons between commands.
2. Press the Send button and note the Response field.
6. The controller replies with the response from each command separated by a semicolon. i.e. the first
response is the temperature setpoint.
Synergy Controller Technical Manual, Revision H
Page 326
