Testing the OCR scanner
Having followed the steps above, everything is ready and the barcode scanner should be ready to go.

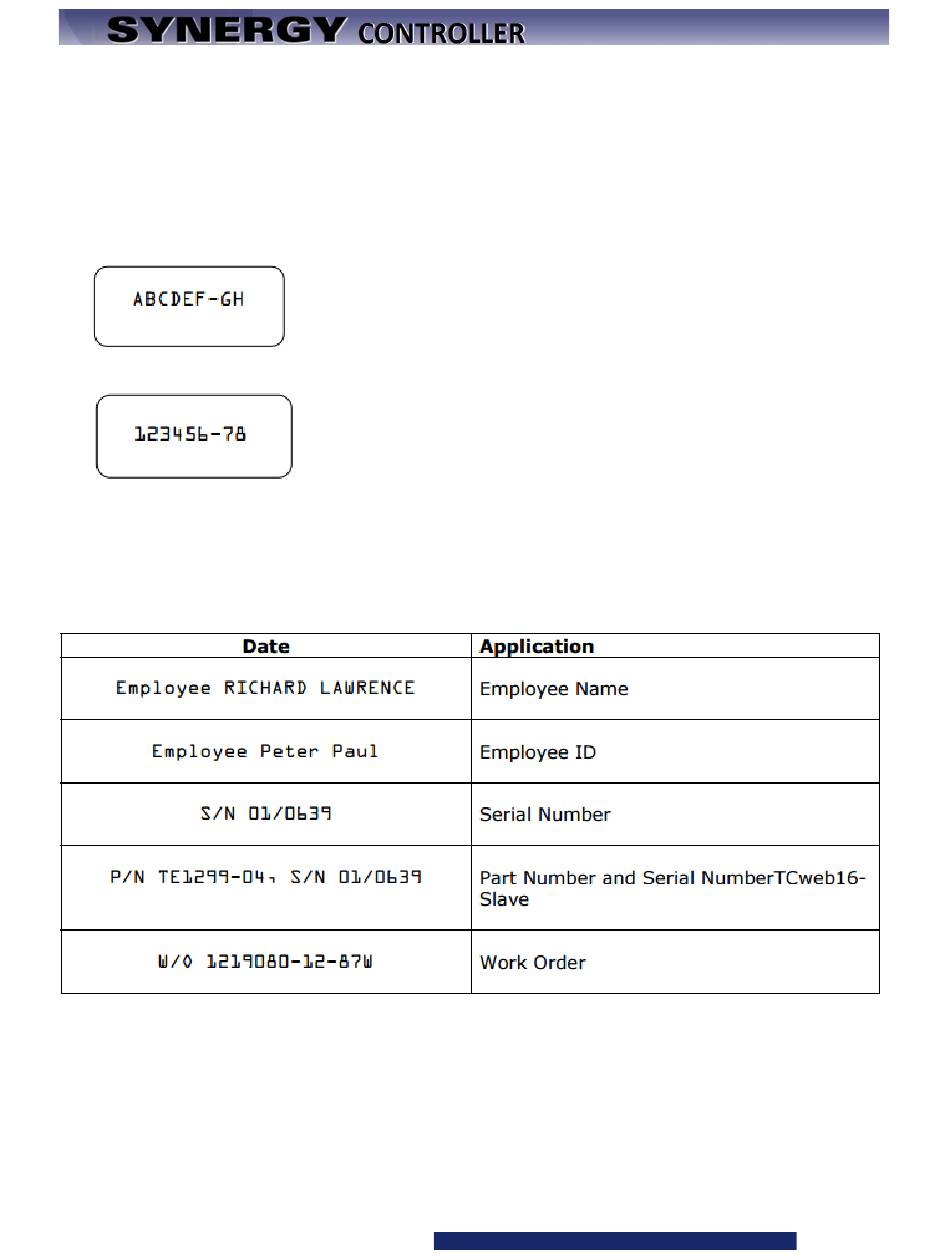

Printed below are two example OCR-A Test Labels that can be scanned to test the configuration. Scan each
label to load and run the appropriate profile in the controller. When we scan 123456-78 the controller will
load product1.vpl and start running it. When we scan ABCDEF-GH the controller will load product2.vpl and
start running it.
123456-
78
ABCDEF-
GH
Test the Bar Code scanner with Log File entries
Alternatively, create a list of part numbers, employee names etc. and print it. This can be attached near the
operator's station.
Synergy Controller Technical Manual, Revision H
Test Label 1
Test Label 2
