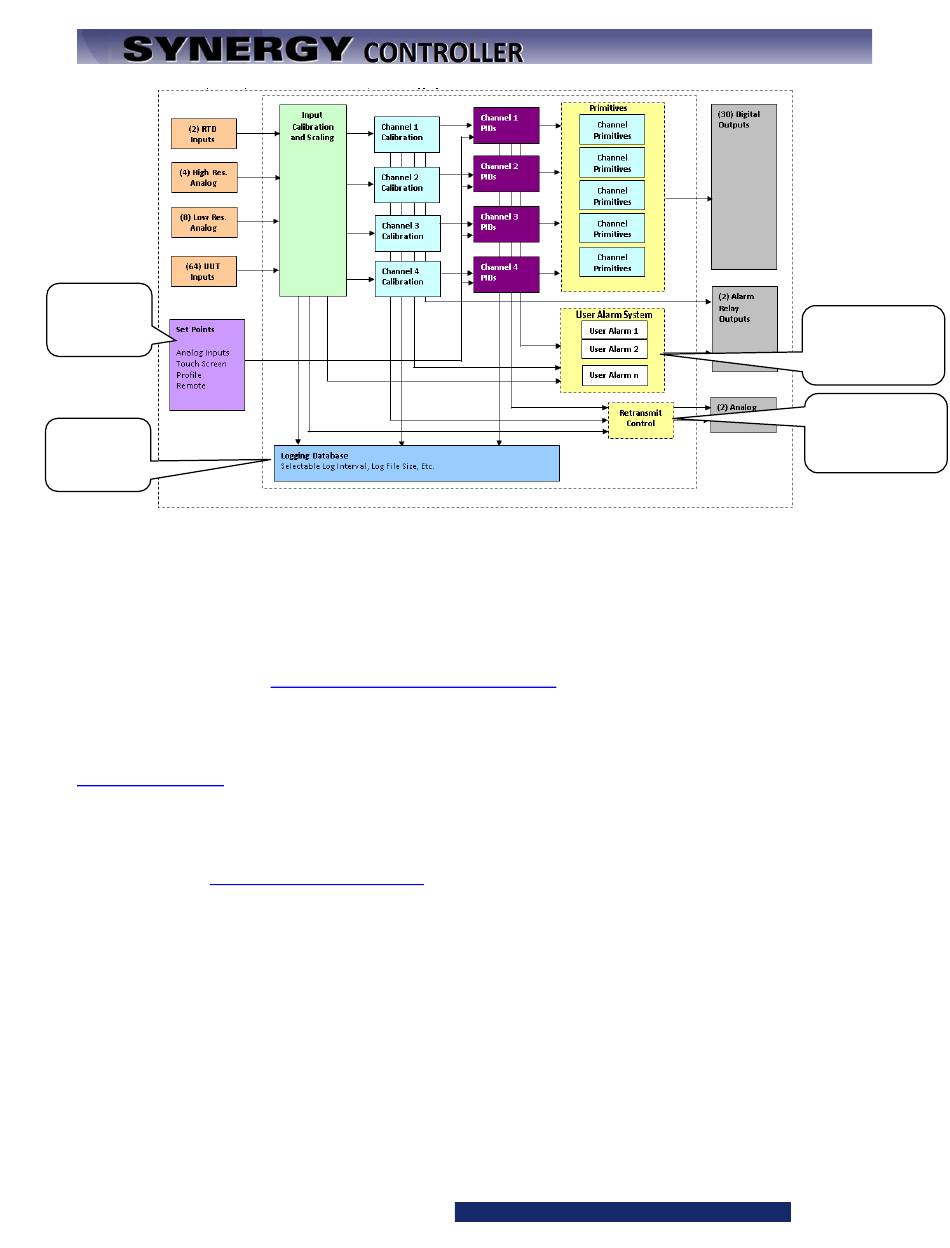

2.1.6 Channel Setpoints

Each channel has a setpoint. The setpoint can be a steady-state value, a profile generated setpoint or a
remote setpoint from a computer or PLC.

2.1.7 User Programmable Alarm System

A user programmable alarm can be specified for one or more alarms using any input or channel value.
These alarms can be used for various purposes including chamber protection, unit-under-test protection, or
chamber control. See the

2.1.8 Logging System

The logging system is used to capture test results and chamber performance data as well as alarm
conditions. The logging system can acquire data from any controller input, channel or PID output. See the
logging section 6.11 of the manual for detailed setup instructions.

2.1.9 Analog Retransmit Outputs

The Analog Retransmit Outputs can be used to retransmit process or control variables as a proportional
voltage to chart recorders or proportional control valves. There are two retransmit outputs. See Analog
Retransmits in the Special Function Section 6.4
Synergy Controller Technical Manual, Revision H
user programmable alarm Section 6.14
for more details,
for details.
