5.2.2 Function Keys

Help Key:
Screen Capture Key:
ON / OFF Keys:
Select Keys:
Synergy Controller Technical Manual, Revision H

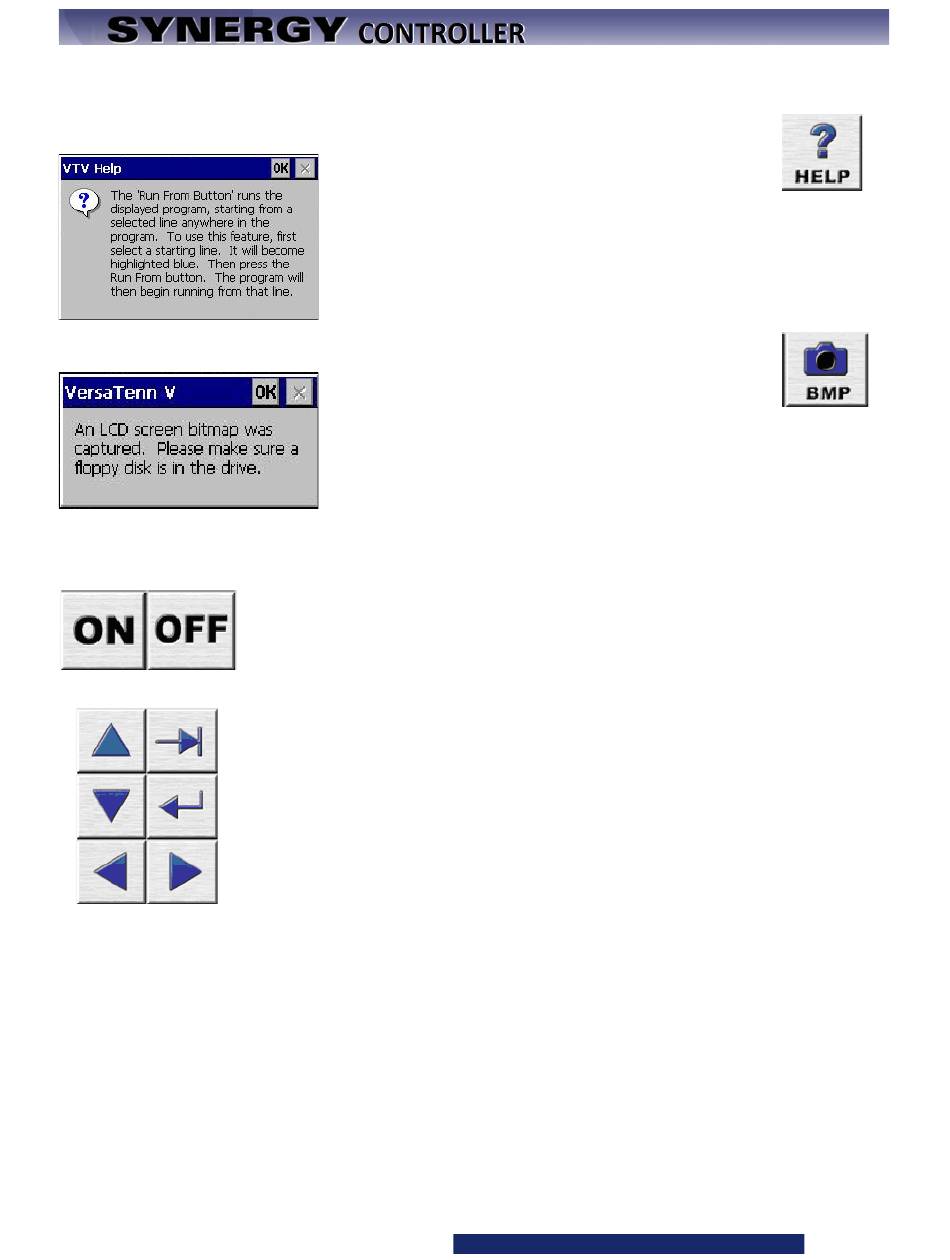

Press the Help key and then press a location on
the touch screen, a small Help window like the one
shown will appear with information to assist you.
Press OK to close the Help screen.
Press this key to capture a bitmap image of the
current screen and store it to a USB Hard Disk.
After pressing the key the window at the left will
appear. The picture will be saved in memory. To
export the bitmap to your storage media go to the
Maintenance screen and press the Export Screen
shots button.
Press OK to close the Capture screen.
These keys are used to turn the chamber On and Off.
The six keys to the right of the LCD are used to enter data and select from lists
and groups. The arrow keys move or scroll from item to item. The Enter key
selects and enters data.
