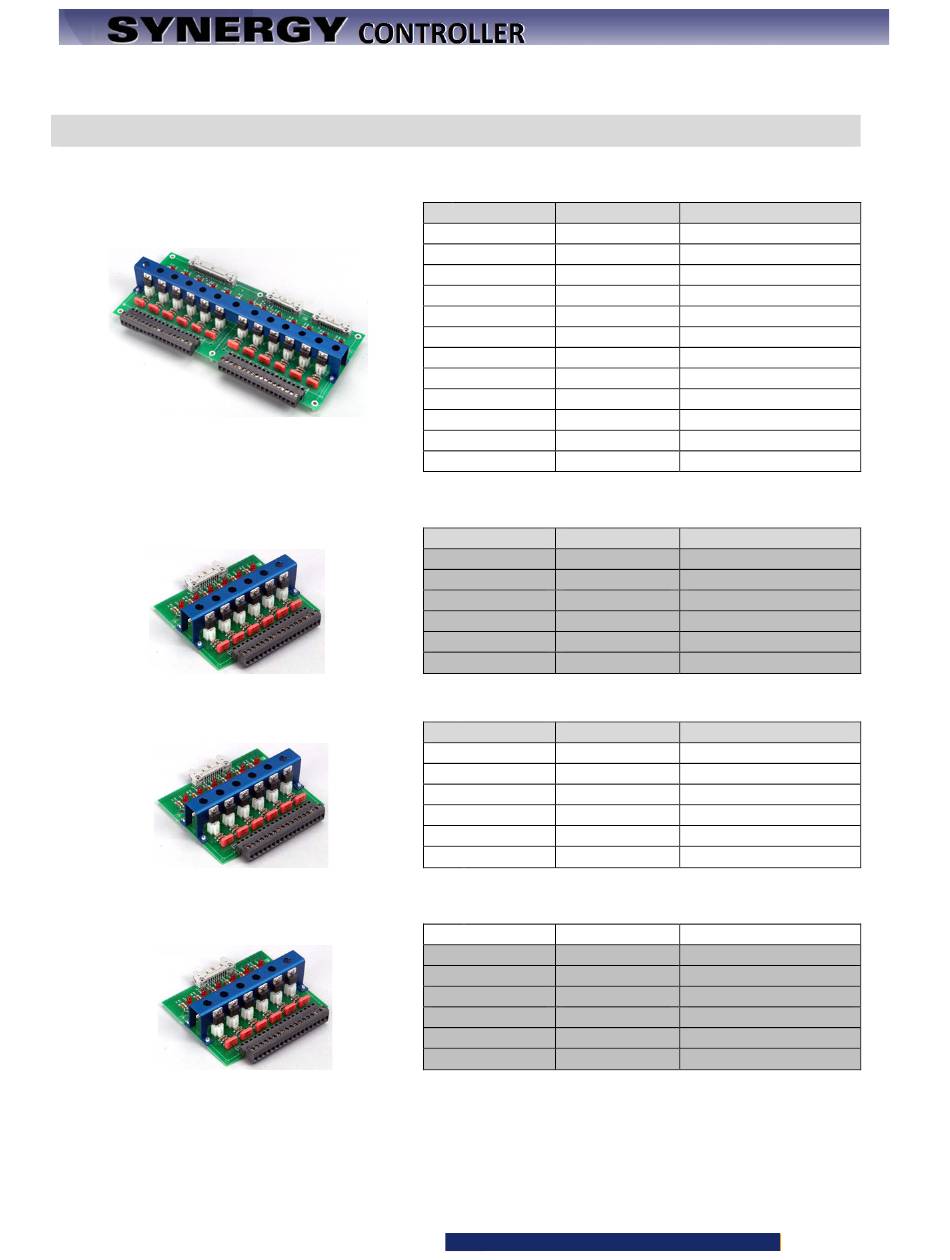

15.4.5 Generic Temperature/Pressure, Altitude and Space

Generic Temperature/Pressure, Altitude & Space
TE1151-12
TE1151-6
TE1151-6
TE1151-5
Synergy Controller Technical Manual, Revision H
1SM Outputs
SM Channel Digital Output
1 1
2 2
3 3
4 4
5 5
6 6
7 7
8 8
9 9
10 10
11 17
12 18
2SM Outputs
SM Channel Digital Output
1 25
2 26
3 27
4 28
5 29
6 30
3SM Event Outputs
SM Channel Digital Output
1 19
2 20
3 21
4 22
5 23
6 24
SSR Outputs
SM Channel Digital Output
1 25
2 26
3 27
4 28
5 29
6 30
Device
Fan
High Artificial Load
PID Heat
Boost Heat
Low Compressor
High Compressor
PID Cool
Full Cool
Low Artificial Load
Cascade
Vent BC
Vacuum
Device
Not Used
Not Used
Not Used
Not Used
Not Used
Not Used
Device
Event 1
Event 2
Event 3
Event 4
Event 5
Event 6
Device
Not Used
Not Used
Not Used
Not Used
Not Used
Not Used
