5.2.4 Screen Navigation Keys

The eight keys below the LCD are the Screen Navigation Keys (Soft keys). These are labeled: SETUP,
MAINT, COMM, PROGRAM, RUN, EVENTS, GRAPH, and MAIN. These keys provide easy navigation to the
controller's setup, operating and programming features.
All the Synergy Controller screens retain their state so when you navigate away from a screen and return,
the folder remains in the state that it as in. For example, you can navigate to the MAIN screen while entering
a parameter in the SETUP screen and when you navigate back, the SETUP screen will be as you left it.

5.2.5 Navigating to a Screen Folder Path

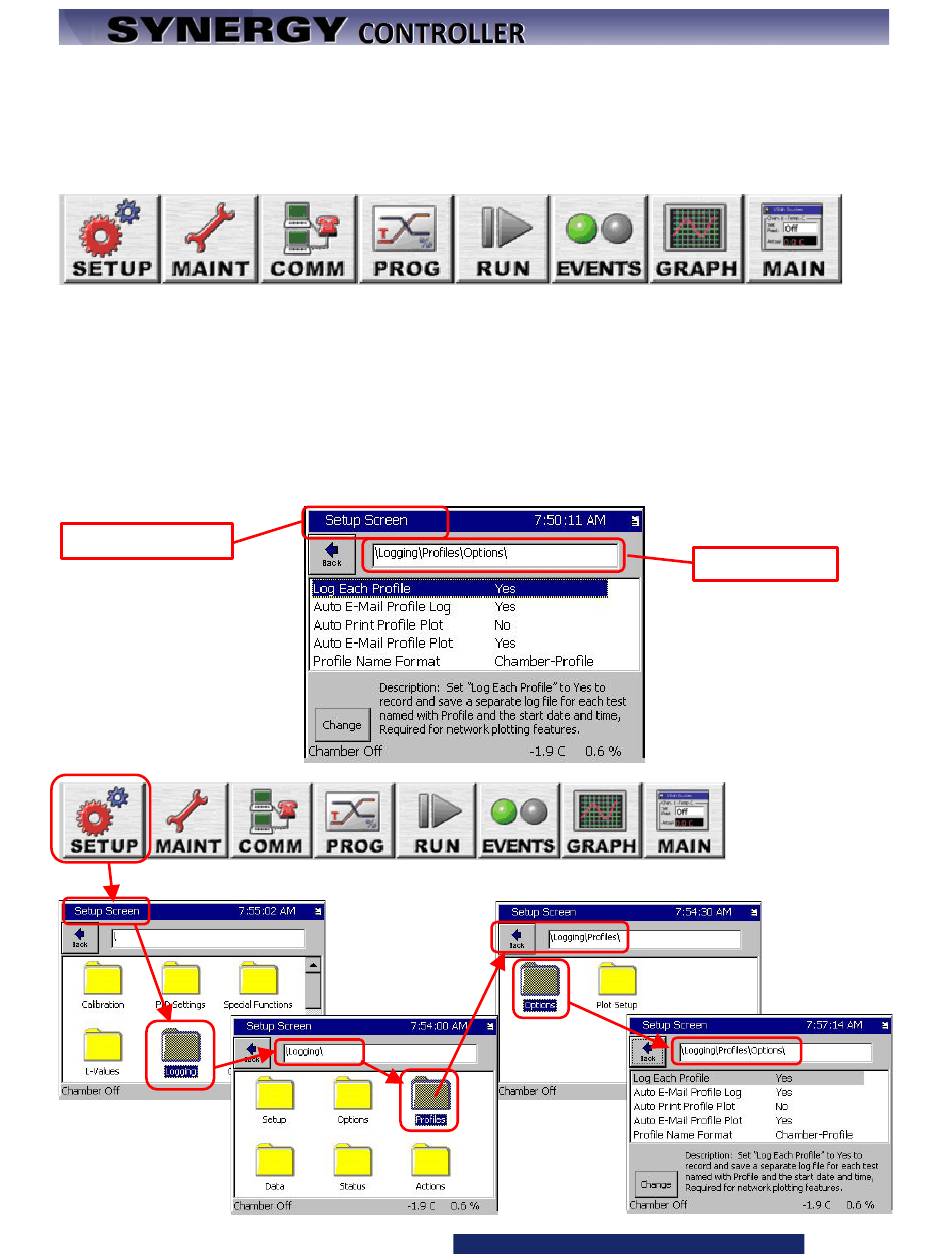

Navigating to a specific controller parameter from a screenshot in the technical manual is straightforward
using the Screen name in the title bar and Screen Folder Path at the top of the screen. See the example
shown below for the Screen Folder Path: \SETUP\Logging\Profiles\Options.
Screen Name
Folder Path
Synergy Controller Technical Manual, Revision H Page 27
