Labview ™ Driver - Tidal Engineering Synergy Series Technical Manual

19.7 LabVIEW ™ Driver
The LabVIEW driver available for the Synergy Controller provides an easy way to control and monitor the
instrument using GPIB (IEEE 488), Ethernet (TCP/IP) or RS-232 and speeds the development of test
chamber control programs in LabVIEW. The driver was developed in LabVIEW 8.0 and can be incorporated
in any application developed in LabVIEW 8.0 or higher. The driver is a LabVIEW library that contains 19
Virtual Instruments (VIs) that are specifically tailored to work with the Synergy Controller and save hours of
program development time, thus greatly reducing the cost of adding chamber control to the test development
process. The library also includes an TESynC Example.vi and TESynC GUI.vi that can be used as a quick
start reference.

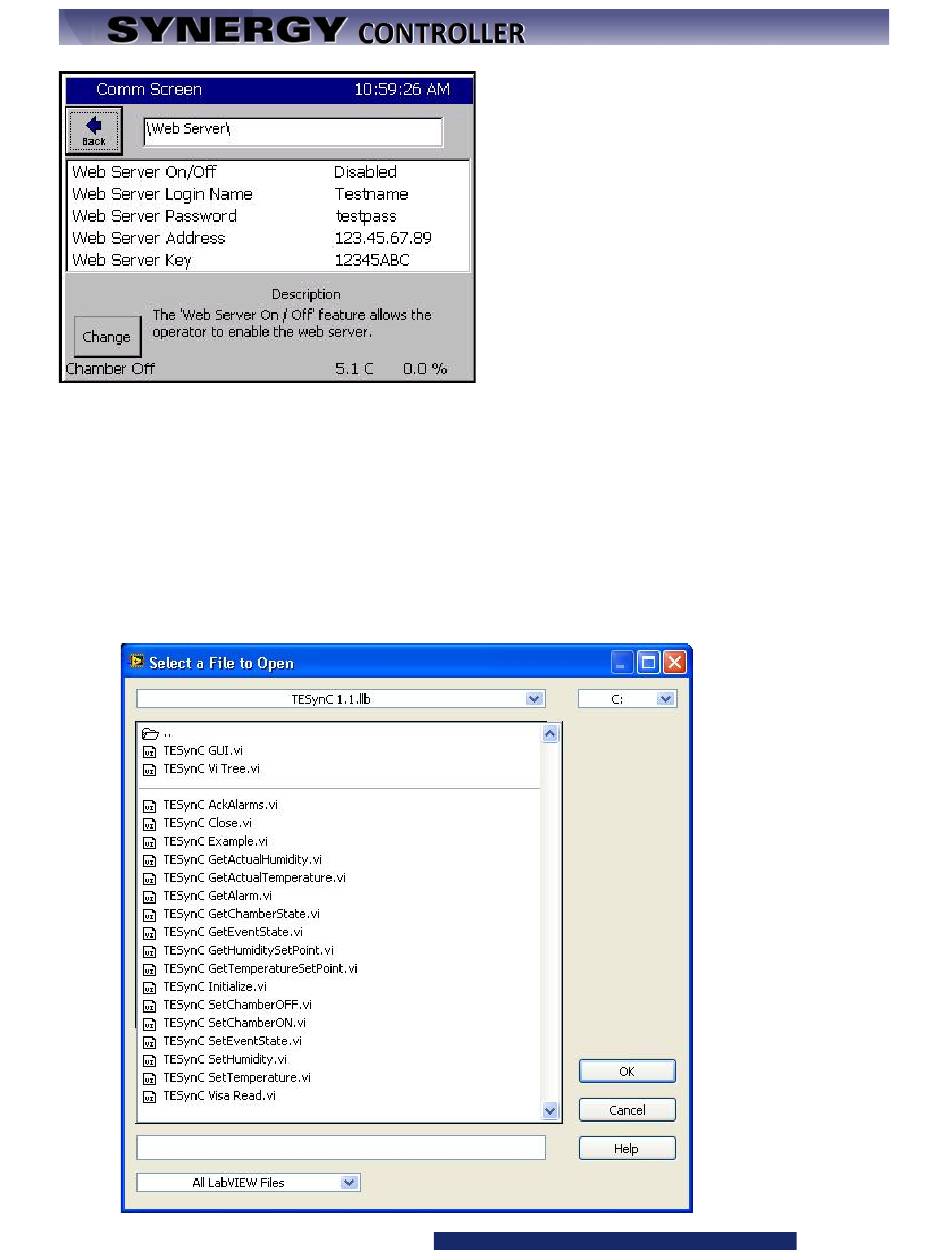

LabVIEW Library (TESynC 1.1.llb)
Synergy Controller Technical Manual, Revision H
Network Security
In today's Internet environment, network security is
a real concern. The Synergy WebTouch
Remote(tm) web server requires a username and
password that is managed from the touch screen.
To set the user name and password, select Web
Server Login Name and press the Change button.
Enter your desired Login Name on the keypad.
Press OK to return to the settings window. Repeat
the process for the Web Server Password. You will
use this name and password when you access the
Synergy Controller remotely via your web browser.
The unit's web server is now ready for use.
Page 319
