13.0 MAIN SCREEN

The Synergy Controller can run complex programs as described in the previous sections. In addition, it can
also operate at steady state conditions, i.e. manual operation. This section explains the screens and
procedures that are used to quickly setup and run your chamber at steady state conditions.
The Main screen can be customized in a variety of ways. This section covers Main screen configuration
options for:
•
Process Graph Option
•
Channel text size
•
Chamber light button options.
•
Sensor displays for additional test variables.

13.1 Steady State Operation

The MAIN screen opens when the controller is powered-up. Steady state set points are accessed from this
screen. The chamber can also be turned On and Off from this screen.

13.1.1 Entering a set point

Synergy Controller Technical Manual, Revision H
Press the MAIN Navigation Screen button.

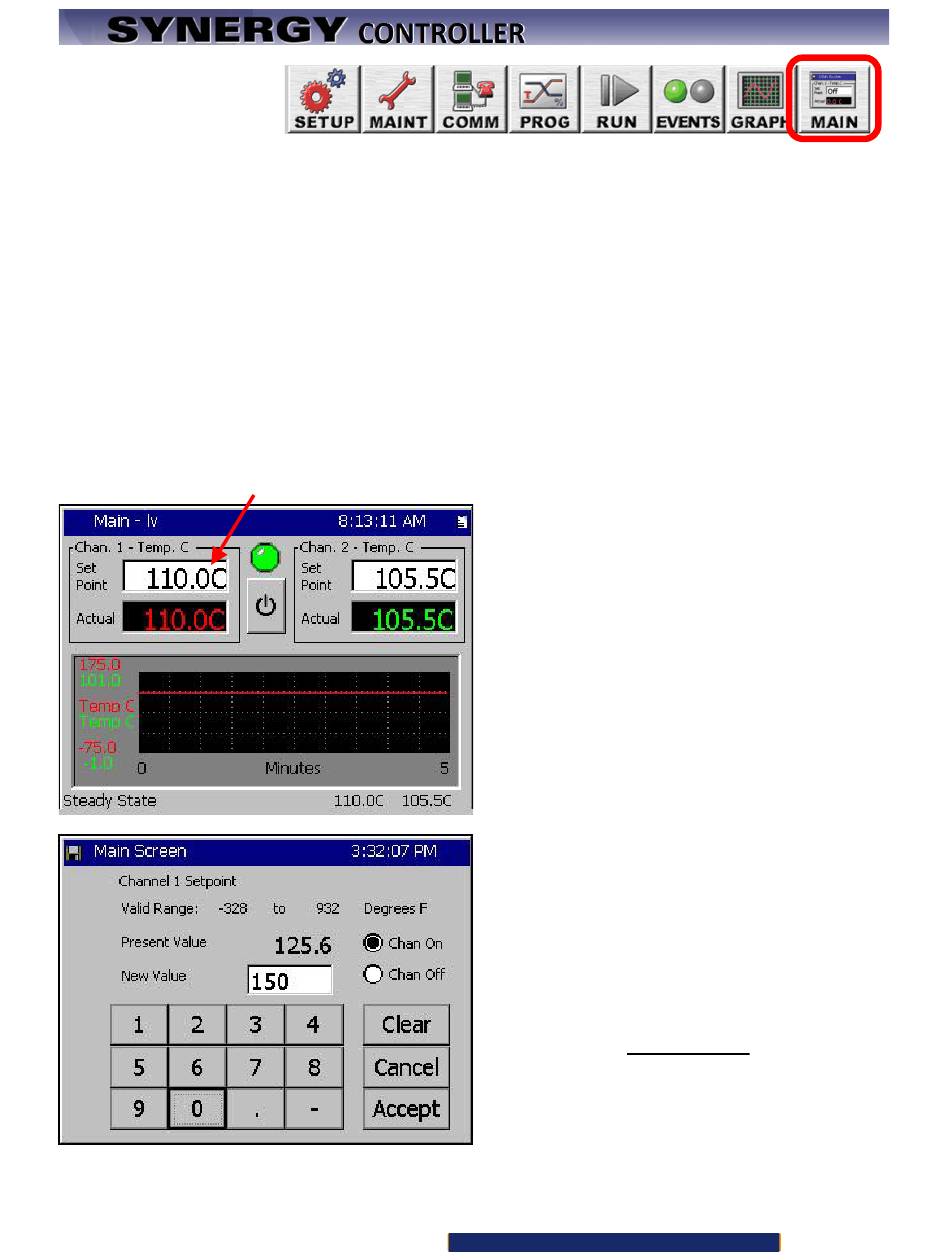

♦ Press the Setpoint text entry box for
Channel 1 to enter a setpoint. The keypad
screen appears as shown below.
♦ Enter setpoints for the other channels or
set them off with the Chan Off radio button as
required.
The keypad shows the Valid Range and the
Present Value for the setpoint.
♦
Select Chan On.
♦
Enter the New Value. Press Accept
The Main screen will appear with your new
setpoint.
Important Note
Channel 1 is the primary channel and must always
be on when the chamber is on. The Synergy
Controller will turn off Channel 2 if Channel 1 is
turned off. You can however turn off Channel 2 (for
example Humidity). To turn off channel 2, select
the Chan Off option.
