5.3 Screen Overview

This section provides a single page overview of the controller's eight screen navigation buttons and screens.
For in-depth information on each screen, go to the corresponding manual section. Screen Navigation Keys:

5.3.1 Setup Screen

The Setup screen is used at various times by OEMs and technicians, administrators, and engineers.
The OEM and Chamber Technician will utilize a variety of Setup screens during the initial installation and
calibration including: PID Settings, Calibration, Logging, Special Functions, L-Values, Chamber Setup,
Resume Behavior, User Alarms, Main Screen Setup, and Event Screen.
The Administrator can use the Panel Lock and Languages screens to control access to the chamber and
setup the controller language.
The Engineer/Operator can use the Logging screen to select the logger data, logging interval, and automatic
results delivery features. The L-Values are used to optimize the controller for a wide range of test conditions.
Synergy Controller Technical Manual, Revision H

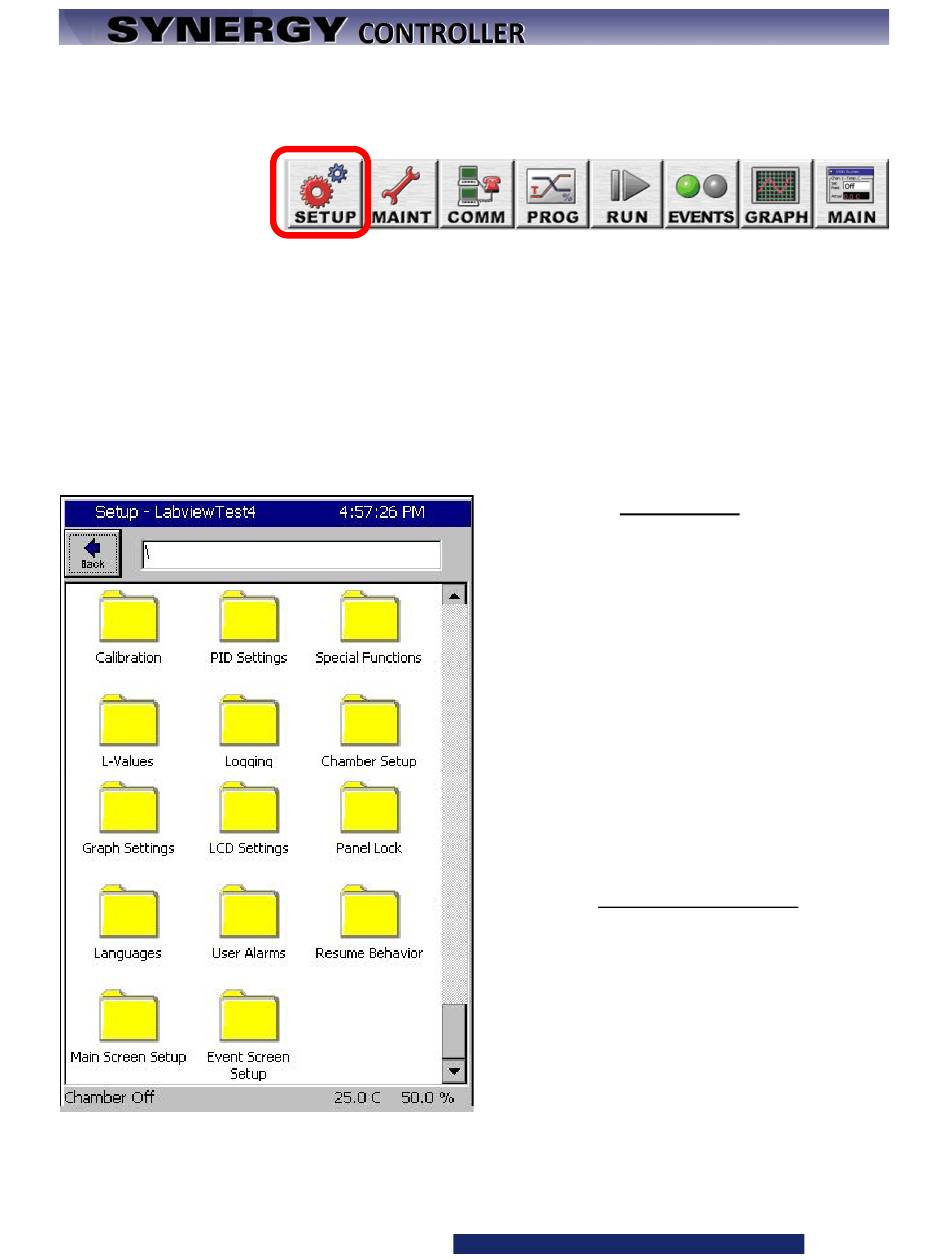

SETUP Screen
Provides access to 14 Setup folders.
♦
Calibration
♦
PID Settings
♦
Special Functions
♦
Logging
♦
L - Values
♦
Chamber Setup
♦
Graph Settings
♦
LCD Settings
♦
Panel Lock
♦
Languages
♦
User (Programmable) Alarms
♦
Resume Behavior
♦
Main Screen Setup
♦
Event Screen
Details are in Section 6.0 Setup Screen.
