11.5 High Resolution Analog Inputs

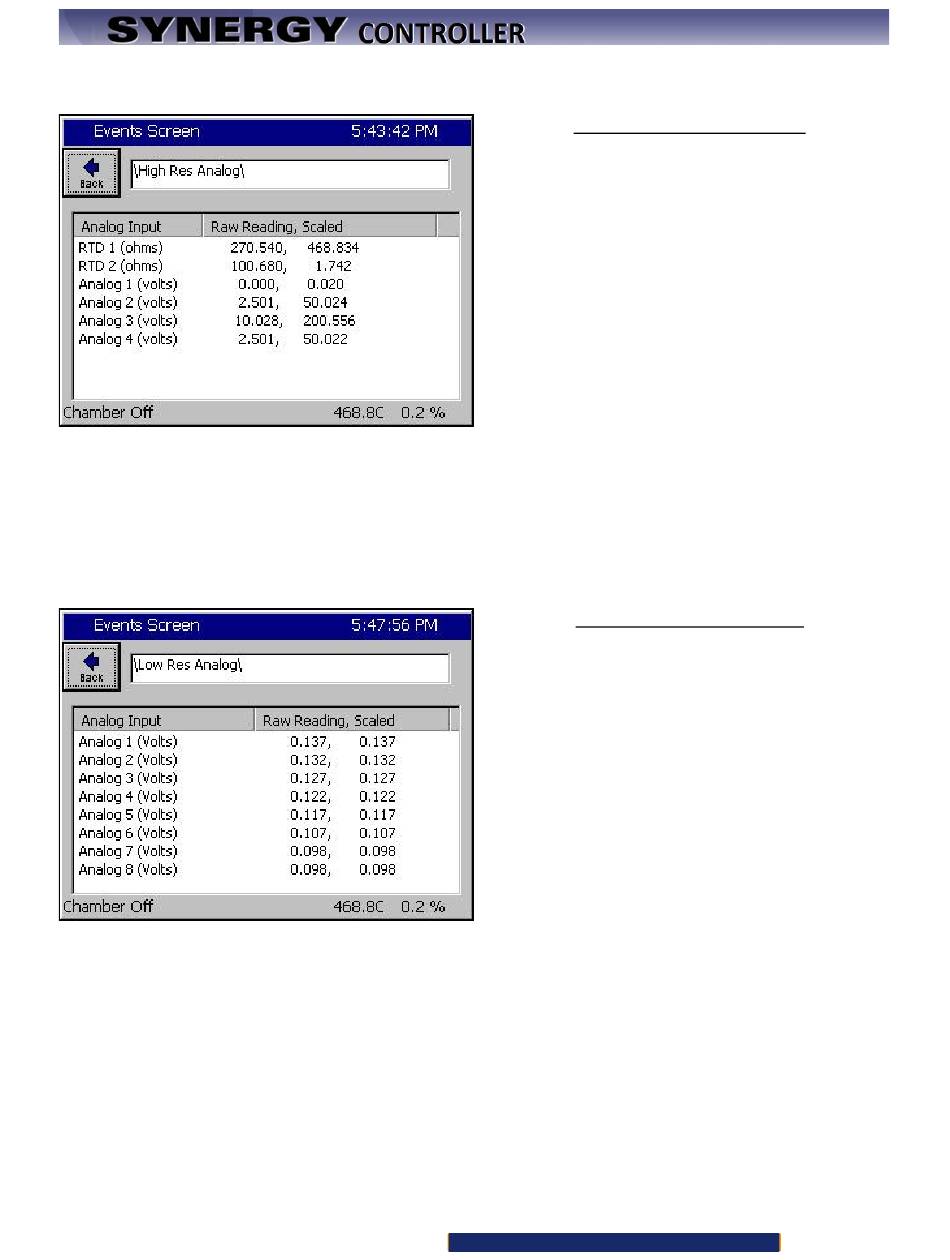

High Resolution Analog input Screen monitors the signals from process sensors or machine monitors. The
Synergy Controller displays both the Raw Reading (Volts) and the Scaled value.
Browse to the /Calibration/Input/High Res folder in the Setup screen to set the scaling for these inputs.

11.6 Low Resolution Analog Inputs

Low Resolution Analog input Screen monitors the signals from process sensors or machine monitors. The
Synergy Controller displays both the Raw Reading (Volts) and the Scaled value.
Browse to the /Calibration/Input /Low Res folder in the Setup screen to set the scaling for these inputs.
Synergy Controller Technical Manual, Revision H
High Resolution Analog Inputs
♦
RTD 1
♦
RTD 2
♦
Analog 1 (Volts)
♦
Analog 2 (Volts)
♦
Analog 3 (Volts)
♦
Analog 4 (Volts)
Low Resolution Analog Inputs
♦
Analog 1 (Volts)
♦
Analog 2 (Volts)
♦
Analog 3 (Volts)
♦
Analog 4 (Volts)
♦
Analog 5 (Volts)
♦
Analog 6 (Volts)
♦
Analog 7 (Volts)
♦
Analog 8 (Volts)
