16.2.3.3 Main Screen Product / Air Temperature Display

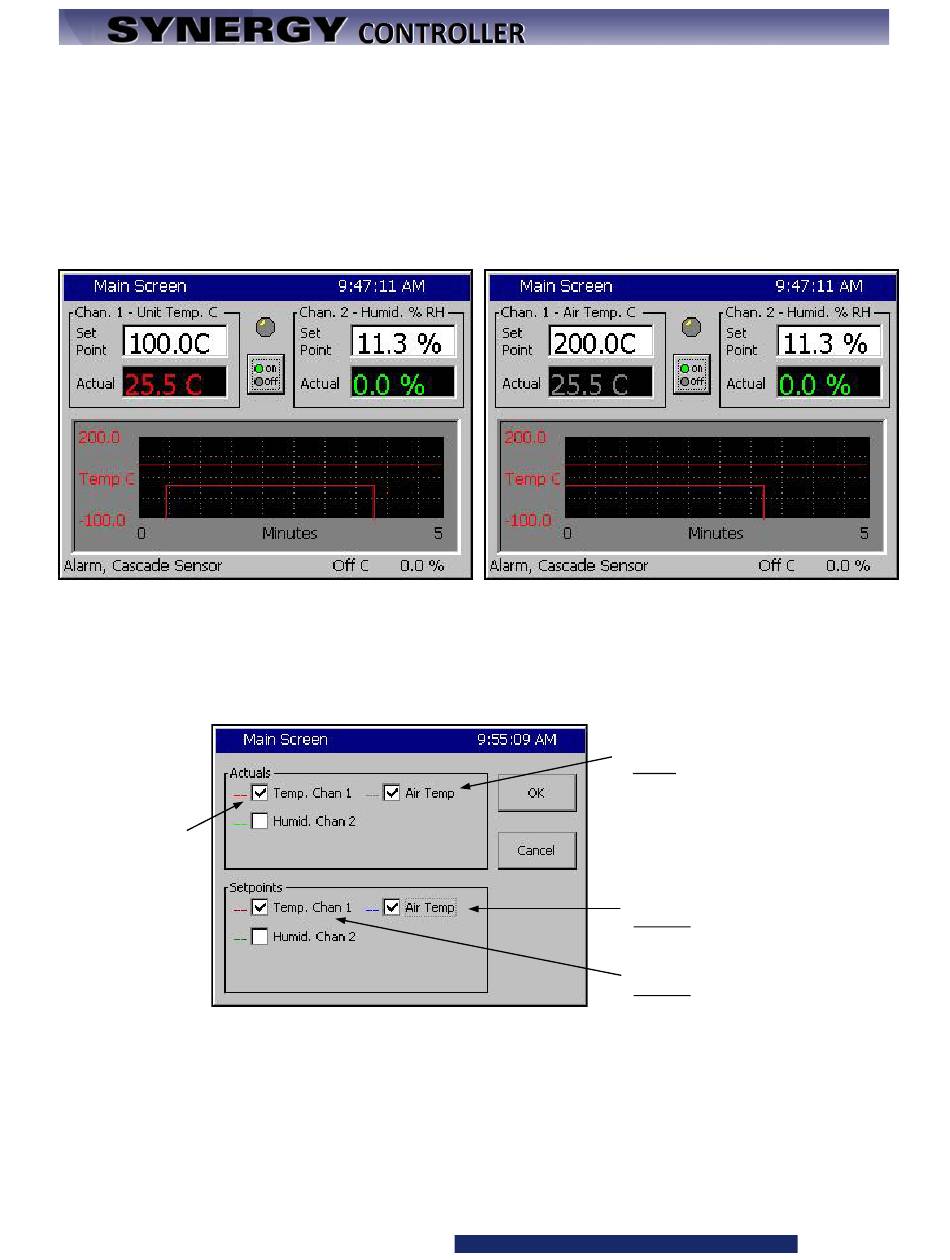

In the cascade mode, you can alternately display the setpoint / actual values of the product and air
temperature. Press the Actual temperature display box to toggle between the two modes.
When you switch modes, the color of the text in the Actual box will change from Red for the product to light
blue for the air temperature. The label in the frame around Channel 1 will also change accordingly as shown
below.
Unit (Product) Temperature
16.2.3.4 Graph Screen – Selecting Product / Air Temperature Graphing
The Graph Screen can chart the product temperature and the air temperature in cascade mode. Press
anywhere on the Graph. The screen below will appear from either display.
Unit Temp. -
Actual
Select Air Temp. in the Actuals and Setpoints frames to graph the actual air temperature and air
temperature setpoint. The actual air temperature will appear as a light blue line, and the air temperature
setpoint will appear as a dark blue line.
Select Temperature within the Actuals and Setpoints frames to graph the actual Unit temperature and Unit
(Product) temperature setpoint. The actual unit temperature will appear as a light red, line, and the unit
temperature setpoint will appear as a dark red line.
Synergy Controller Technical Manual, Revision H
Air Temperature
Air Temp. -
Actual
Air Temp. -
Setpoint
Unit Temp. -
Setpoint
