5.3.7 Graph Screen
The Graph screen is used at various times by all users; i.e. OEMs and technicians, engineers and operators
to monitor the operation of the equipment.
The Graph scaling, X and Y can be adjusted in the SETUP\Graph Settings folder.
Synergy Controller Technical Manual, Revision H

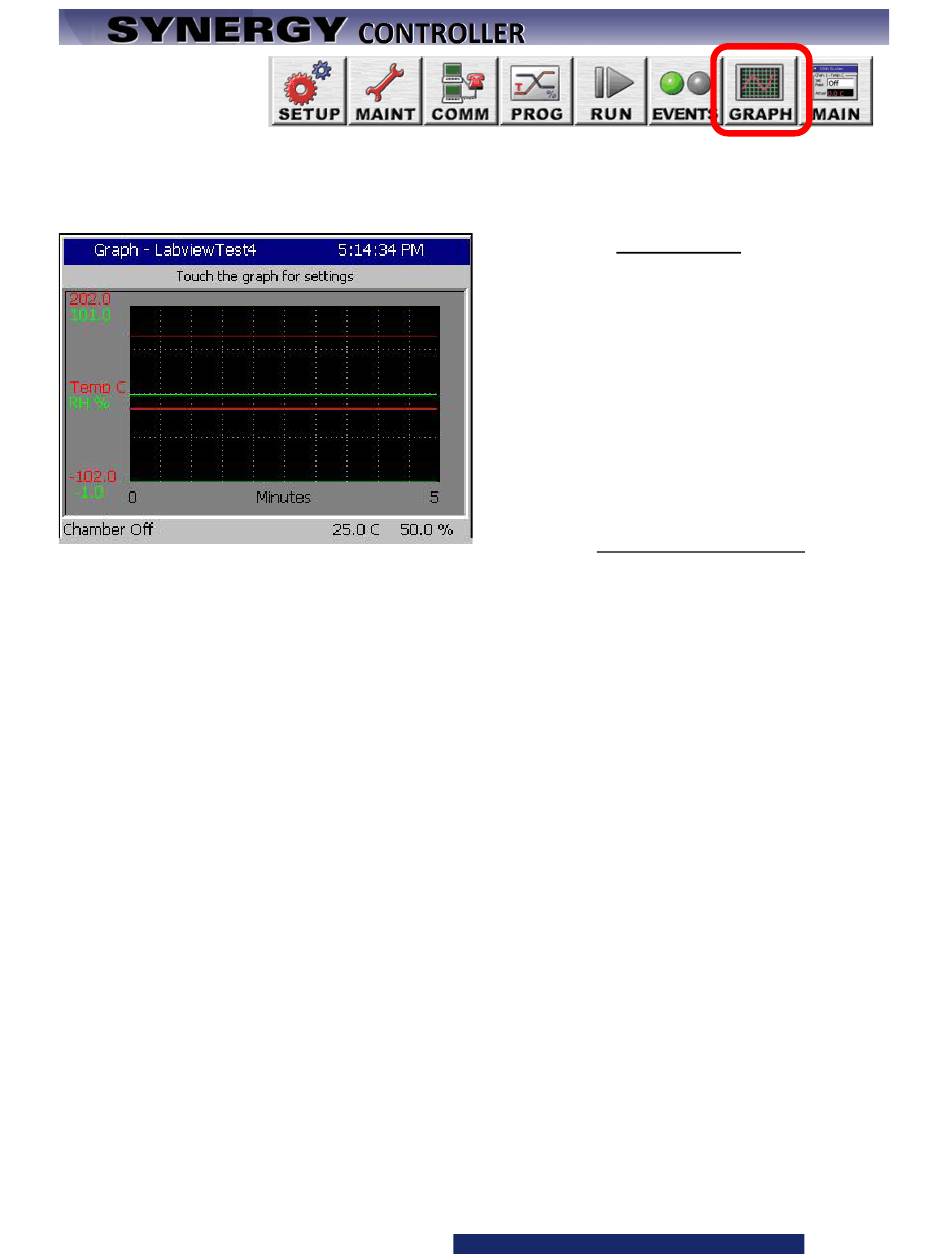

GRAPH Screen
Screen Information:
♦
Graph channel actual and setpoint values
over time.
Control Features:
♦
Access the Graph Setup Screen by
touching the graph. You can individually
enable and disable the plotting of the
setpoint and actual values for each of the
chamber variables.
Details are in
Section 12.0 Graph
Screen.
Page 34
