Tidal Engineering Synergy Series Technical Manual page 197

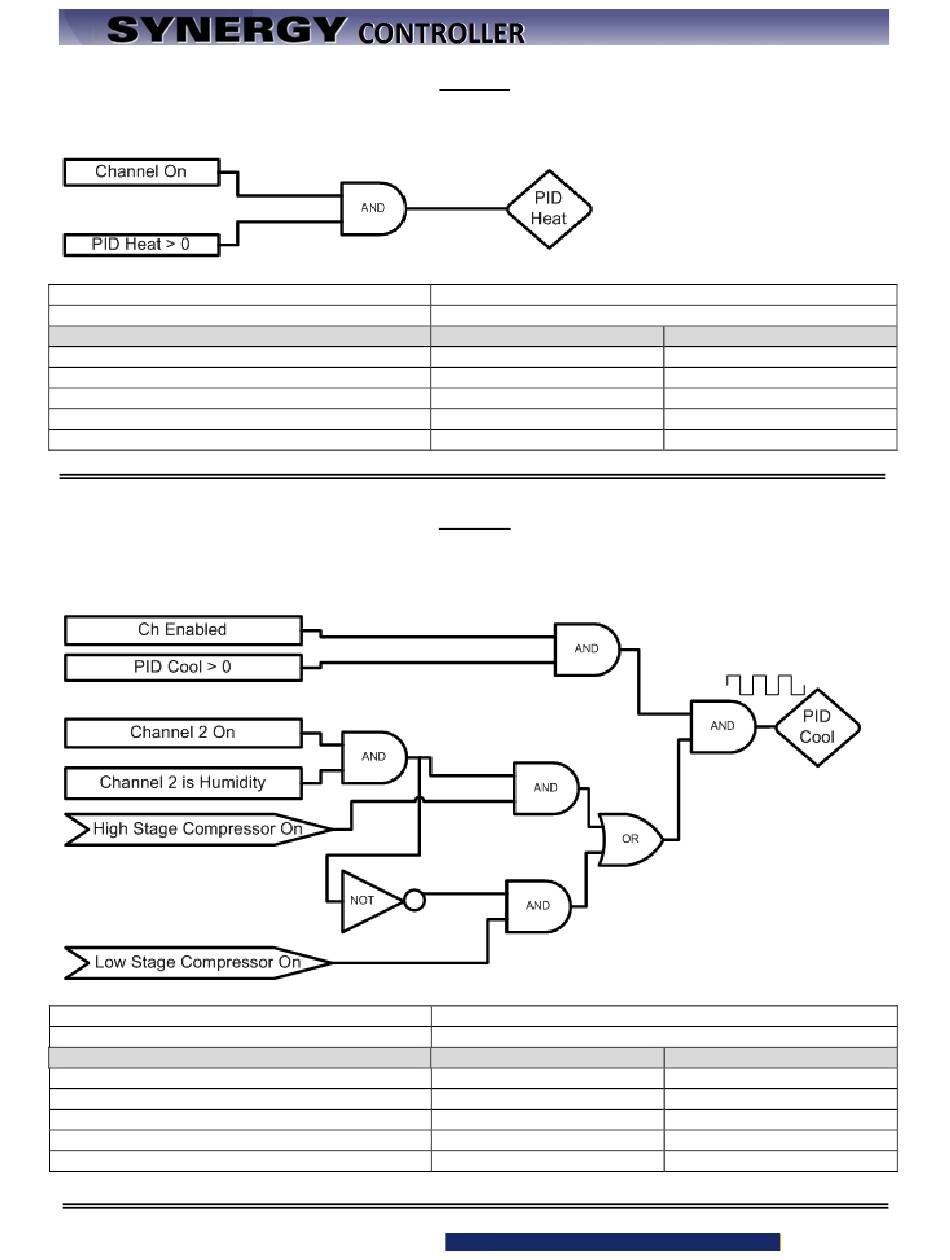

Time Proportioning output that controls the heaters.
Output is Time Proportioning
Control Parameters
Channel 1 Proportional Band
Reset for Channel 1 Heating
Rate for Channel 1 Heating
Cycle Time for Channel 1 Heating
Rate Band for Channel 1 Heating
This is a time proportioning output that energizes the cool solenoid permitting refrigerant flow to the
Evaporator Coil.
Output is Time Proportioning
Control Parameters
Channel 1 Proportional Band
Reset for Channel 1 Cooling
Rate for Channel 1 Cooling
Cycle Time for Channel 1 Cooling
Rate Band for Channel 1 Cooling
Synergy Controller Technical Manual, Revision H
PID Heat
Default Value:
7
0.02
0
5
0
PID Cool
Default Value:
7
0.02
0
5
0
Range:
0 - 50 Degrees C
0 - 9.9 Repeats/minute
0 - 9.9 Minutes
1 - 60 Seconds
0 - 7 Seconds
Range:
0 - 50 Degrees C
0 - 9.9 Repeats/minute
0 - 9.9 Minutes
1 - 60 Seconds
0 - 7 Seconds
Page 197
