6 Mounting
6.4.2.1 Removing assemblies
Maschinenfabrik Reinhausen GmbH 2018
6. Plug the UI assembly plugs into the corresponding slots and engage
them.

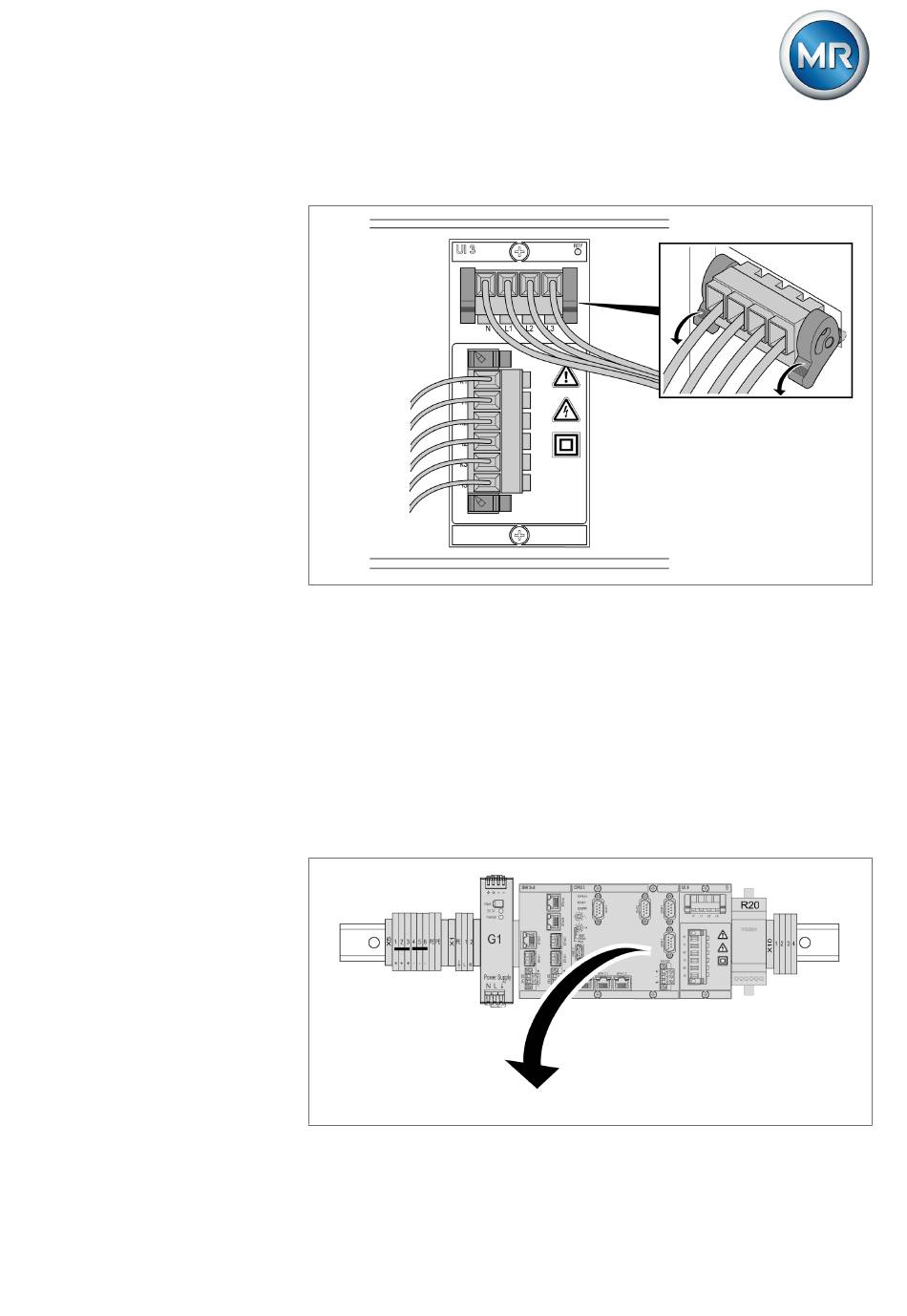

Figure 25: Engaging the plug
6.4.2 Mounting the device on an alternative cap rail
As an alternative, you can mount the device onto a cap rail other than that
included in delivery. When doing so, note the following instructions.
If you would like to mount the device on an alternative cap rail, you must re-
move the individual assemblies from the cap rail included in delivery. When
doing so, observe the schematic in the connection diagram included in deliv-
ery.
Figure 26: Overview of assembly removal
5252433/02 EN
®
®
ECOTAP
VPD
CONTROL PRO
43
