4 Product description
Maschinenfabrik Reinhausen GmbH 2018

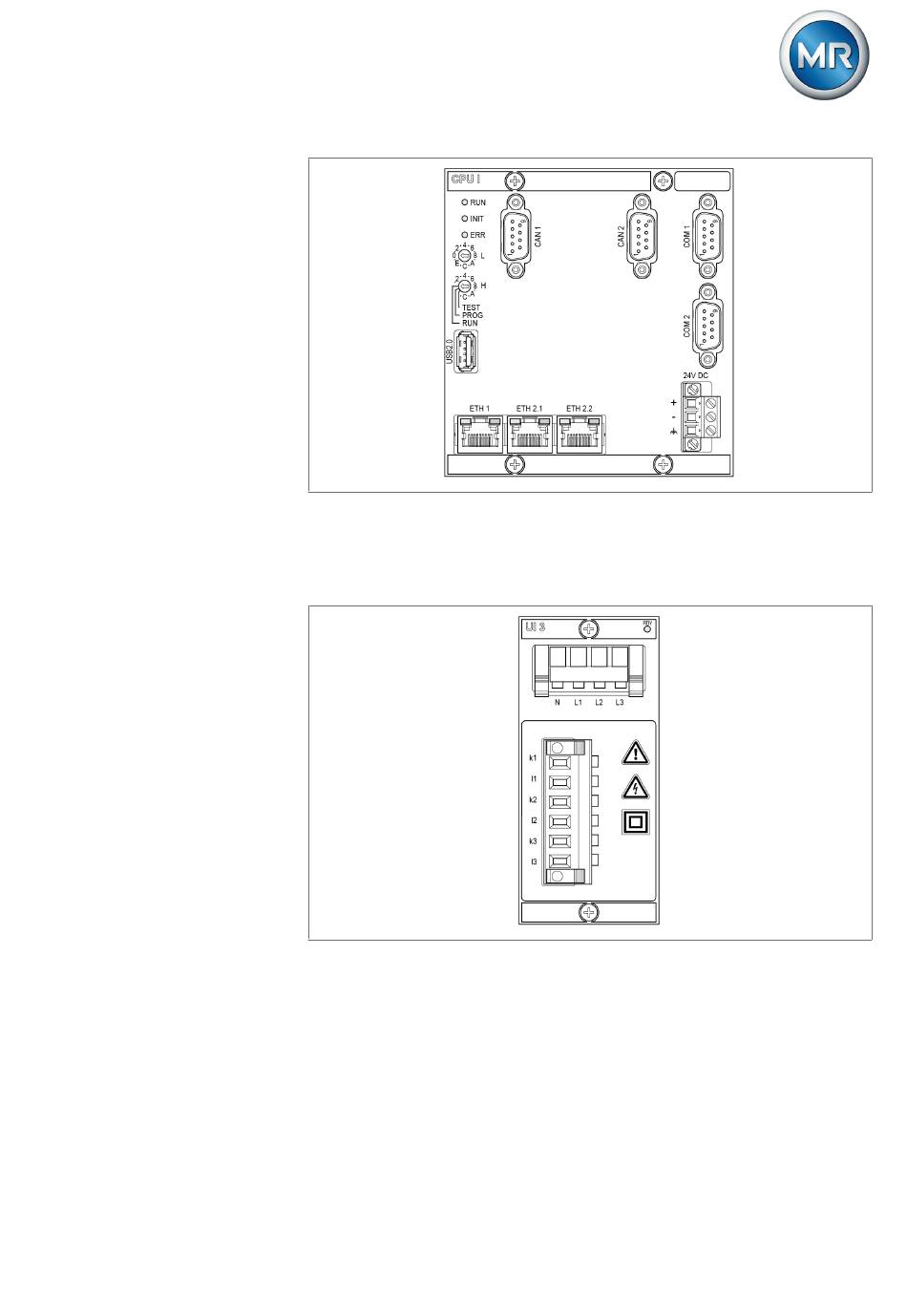

Figure 5: CPU I assembly

4.5.3 Voltage measurement and current measurement

The UI 3 assembly is used for measuring 3-phase voltage and current.
Figure 6: UI 3 assembly
5252433/02 EN
® ®
ECOTAP VPD CONTROL PRO 25
