4 Product description
Maschinenfabrik Reinhausen GmbH 2018

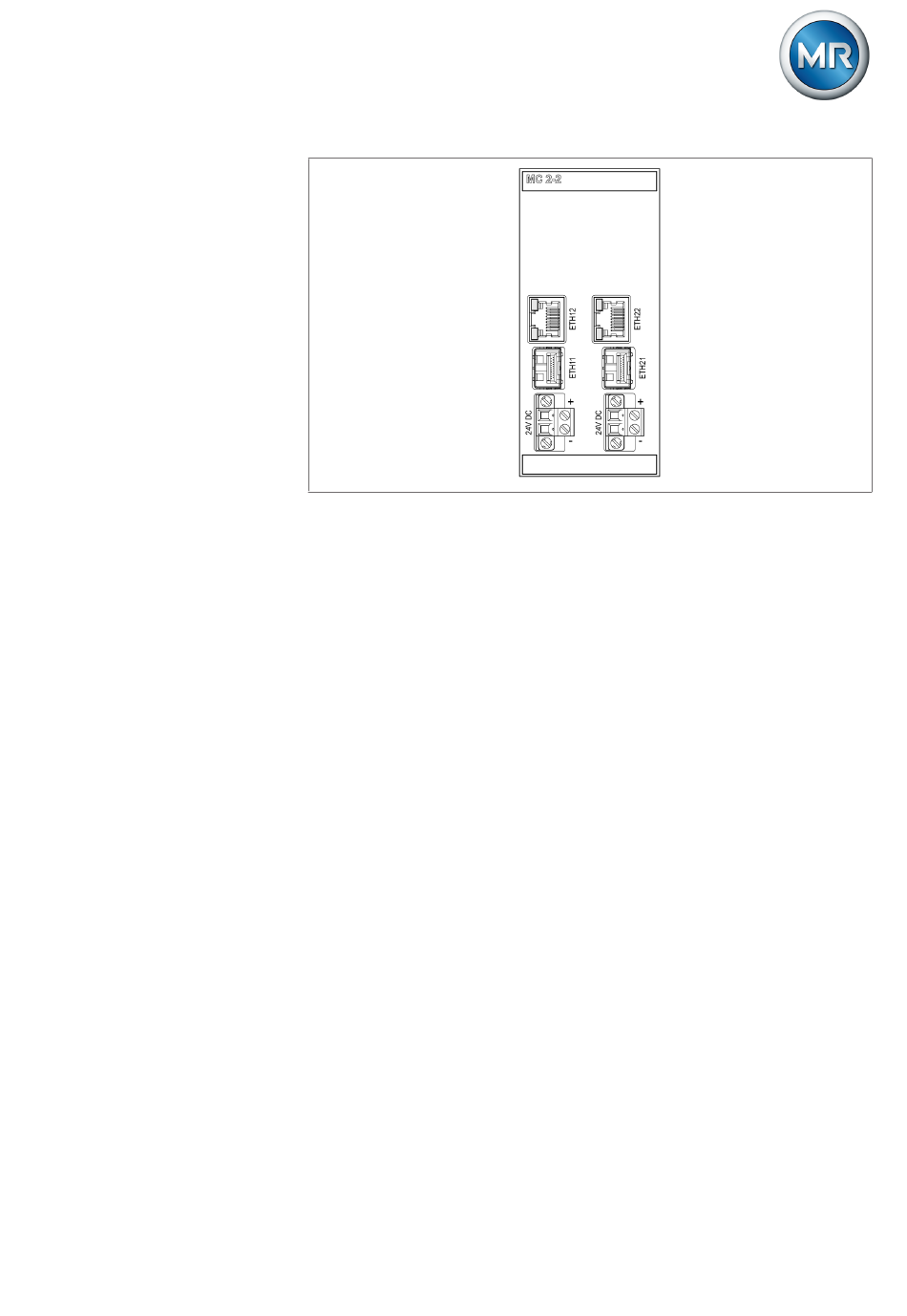

Figure 8: MC 2-2 assembly

4.5.6 Media converter with managed switch

The assembly SW 3-3 is a media converter with managed switch. It com-
bines two independent functions and provides you with the following inter-
faces:
▪ A media converter converts an electric connection (RJ45) into a fiber-optic
cable connection
– RJ45 (ETH12)
– Duplex-LC (SFP module) (ETH11)
▪ Managed switch with redundancy function (PRP or RSTP)
– 2x RJ45 (ETH23, ETH24), device-internal connection
– 2x Duplex-LC (SFP module) (ETH21, ETH22), redundancy connection
The following redundancy functions are available to you according to your
order:
▪ PRP (standard setting)
▪ RSTP
