8.11.6.2 Configuring GOOSE publisher
® ®
130 ECOTAP VPD CONTROL PRO
▪ Subnet mask (if this is not present, the preset one is used)
▪ Gateway IP address (if this is not present, the preset one is used)
▪ Name of IED (IED name)
▪ Name of AccessPoint (AccessPoint attribute name)
▪ Name of logical device (LDevice attribute inst)
OSI-PSEL, OSI-SSEL, and OSI-TSEL cannot be adjusted.
The SCD file may contain no more than 20 IEDs. It may take several min-
utes to import a complete SCD file. The SCD file should only contain the
IEDs needed.
You can import the CID/SCD file via the Import/Export Manager. To do so,
proceed as follows:
1. Go to Settings > Import.
2. Select and import the desired CID/SCD file.
If you configure the device as a GOOSE publisher, you can send all data
points which the device provides via MMS as GOOSE messages. To do this,
you have to configure the data points using DataSets in an SCD/CID file.
SCD/CID file requirements
▪ The GOOSE control block (GSEControl) and the associated DataSet can
only be created in LLN0.
▪ GSE elements for the configuration of the GOOSE message can be cre-
ated under ConnectedAP.
▪ The maximum number of data points per GOOSE message is defined in
Private Element type="MR-MAX-GOOSE-PUBLISH-FCDA". You cannot
adjust this value.
▪ The maximum number of usable GSEControl elements is defined in TEM-
PLATE.icd under Services GOOSE. You cannot adjust this value.
▪ The shortest repeat time is defined in Private Element type="MR-
MINTIME-GOOSE". You cannot adjust this value.

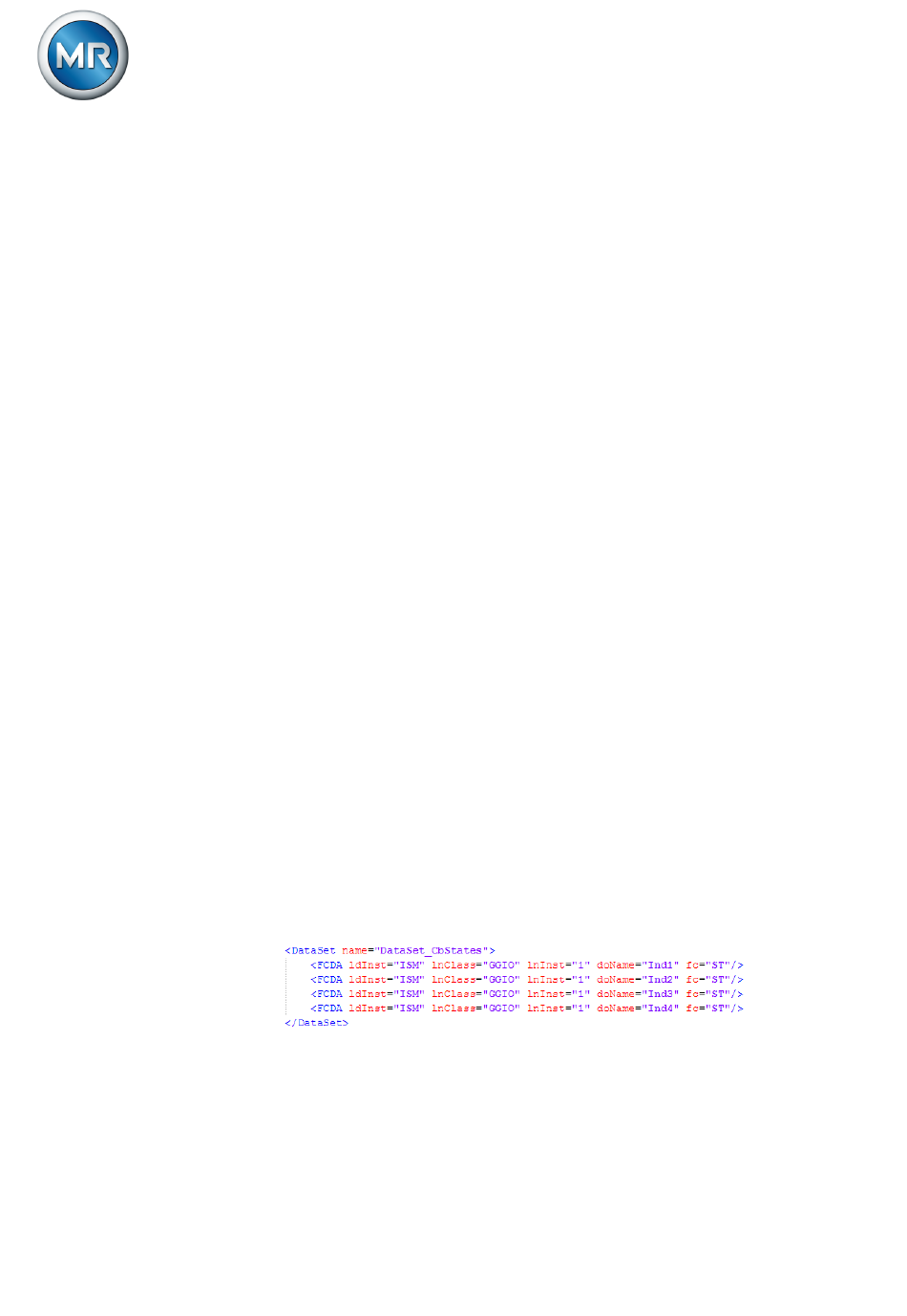

Example:
