42 ECOTAP VPD CONTROL PRO
3. If the device is equipped with the SW3-3 or MC2-2 assembly: Plug the
plug into the corresponding "24V DC" slot and screw it into place.

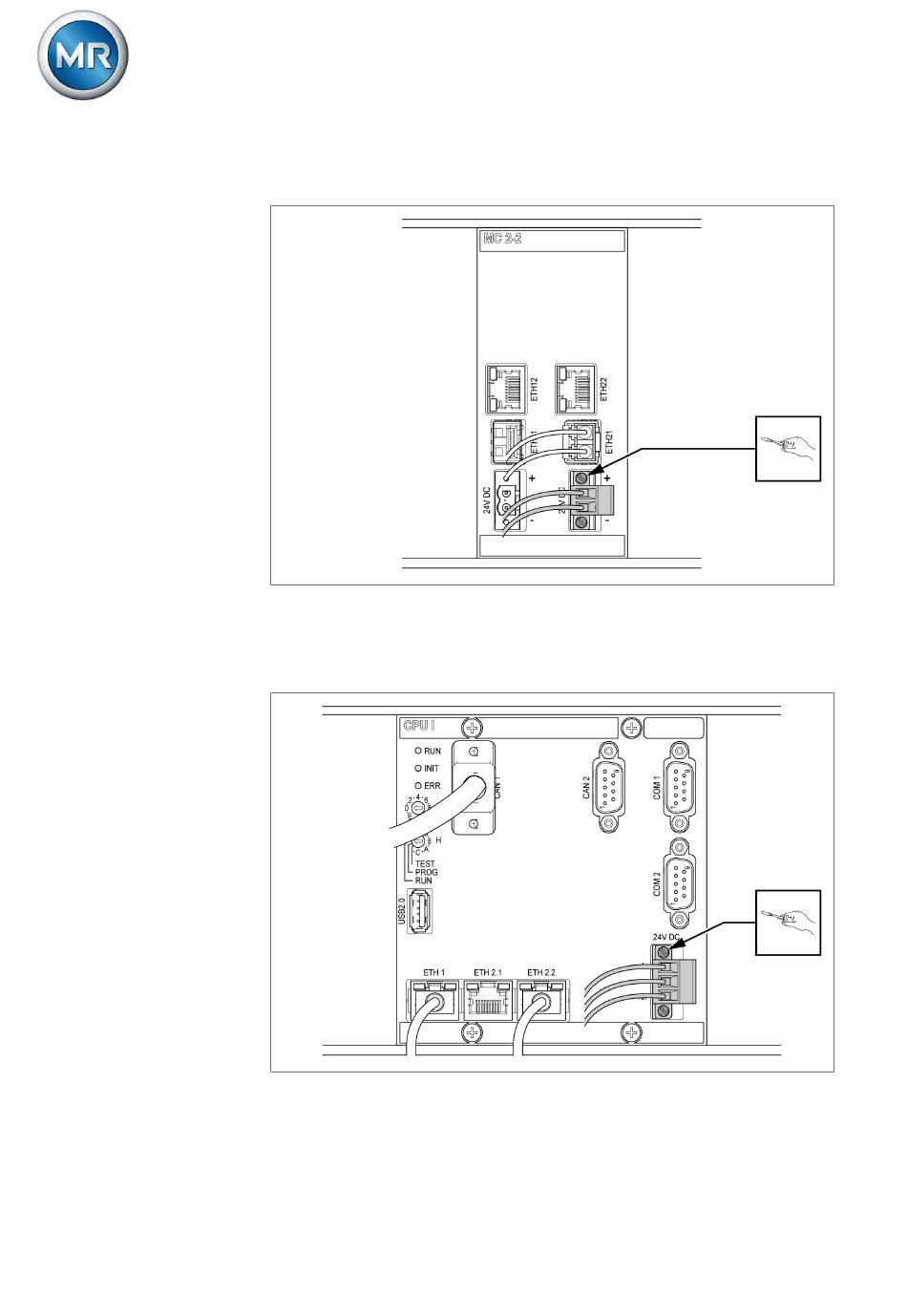

Figure 23: Fastening the 24 V DC plug
4. Connect the connection cable for connecting to ECOTAP VPD MD&C to
connection COM 2 on the CPU assembly.
5. Plug in the "24V DC" plug of the CPU assembly and screw it into place.
Figure 24: Fastening the 24 V DC plug
