8.11.7.5 Configuring DNP3 data points
Column Description
Active You can use the checkbox to set whether the data point is
to be transferred via the control system protocol or not.
OBJGROUP The OBJGROUP column indicates the data point object
group:
▪ AI = Analog Input
▪ AO = Analog Output
▪ BI = Binary Input
▪ BO = Binary Output
▪ CT = Counter
INDEXADDR Data point address.
CLASS Data point class.
▪ 0: Static
▪ 1...3: Event
Notice: You can only set the data point class for data
points of object groups AI, BI, and CT.
® ®
140 ECOTAP VPD CONTROL PRO

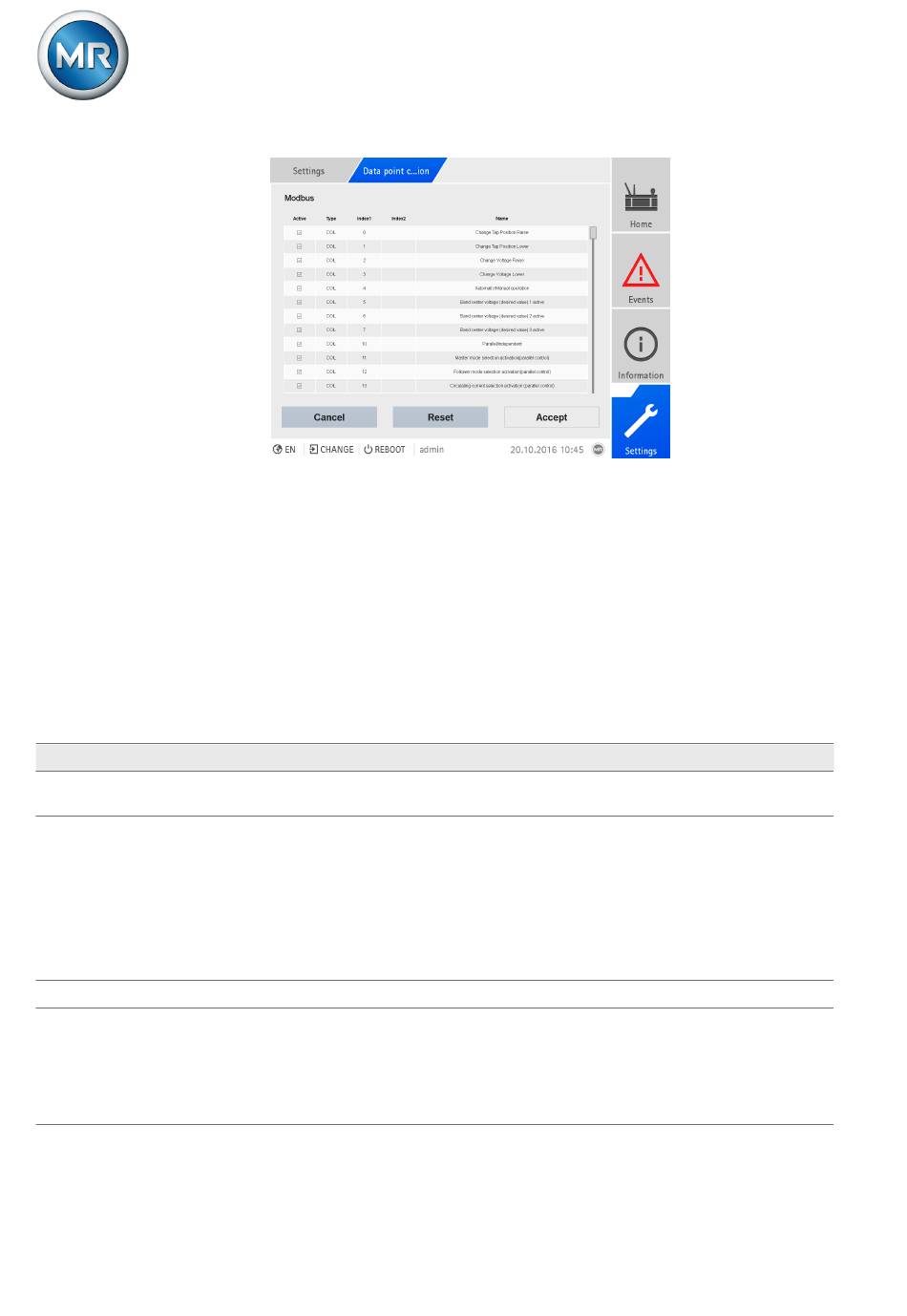

Figure 91: Configuring Modbus data points
Proceed as follows to configure the data points:
1. Go to Settings > Data point configuration.
2. Adjust the data points as required.
3. Press the Accept button to adopt the modified list of data points.
4. Restart the device to activate the modified list of data points.
You can adjust the following data point properties for the DNP3 control sys-
tem protocol:
5252433/02 EN
8 Operation
Modifiable Setting range
Yes Active/inactive
No -
Yes 0...4,294,967,296
Yes 0...3
