6.4.2.2 Fastening the cap rail
WARNING
® ®
48 ECOTAP VPD CONTROL PRO
12. Unhook the voltage divider VD001 from the cap rail.
13. Unhook terminals X1 and X10 from the cap rail.
The cap rail is required to mount a bus bar or a device's remote assemblies
in a control cabinet. Only use the following types of cap rails in accordance
with EN 60715:
▪ TH 35-7.5
▪ TH 35-15
The cap rail may not be painted or lacquered.
Electric shock!
Risk of fatal injury due to electrical voltage if the cap rail is not connected to
the protective ground.
► Connect the cap rail to the protective ground securely (e.g. with a protec-
tive conductor line-up terminal).
► Ensure that the cap rail is connected securely to the protective ground via
a ground test after installation.
► Fasten the cap rail to the rear panel of the switch cabinet using screws
and contact washers or lock washers. The distance between the screws
may be no more than 10 cm (3.94 in).

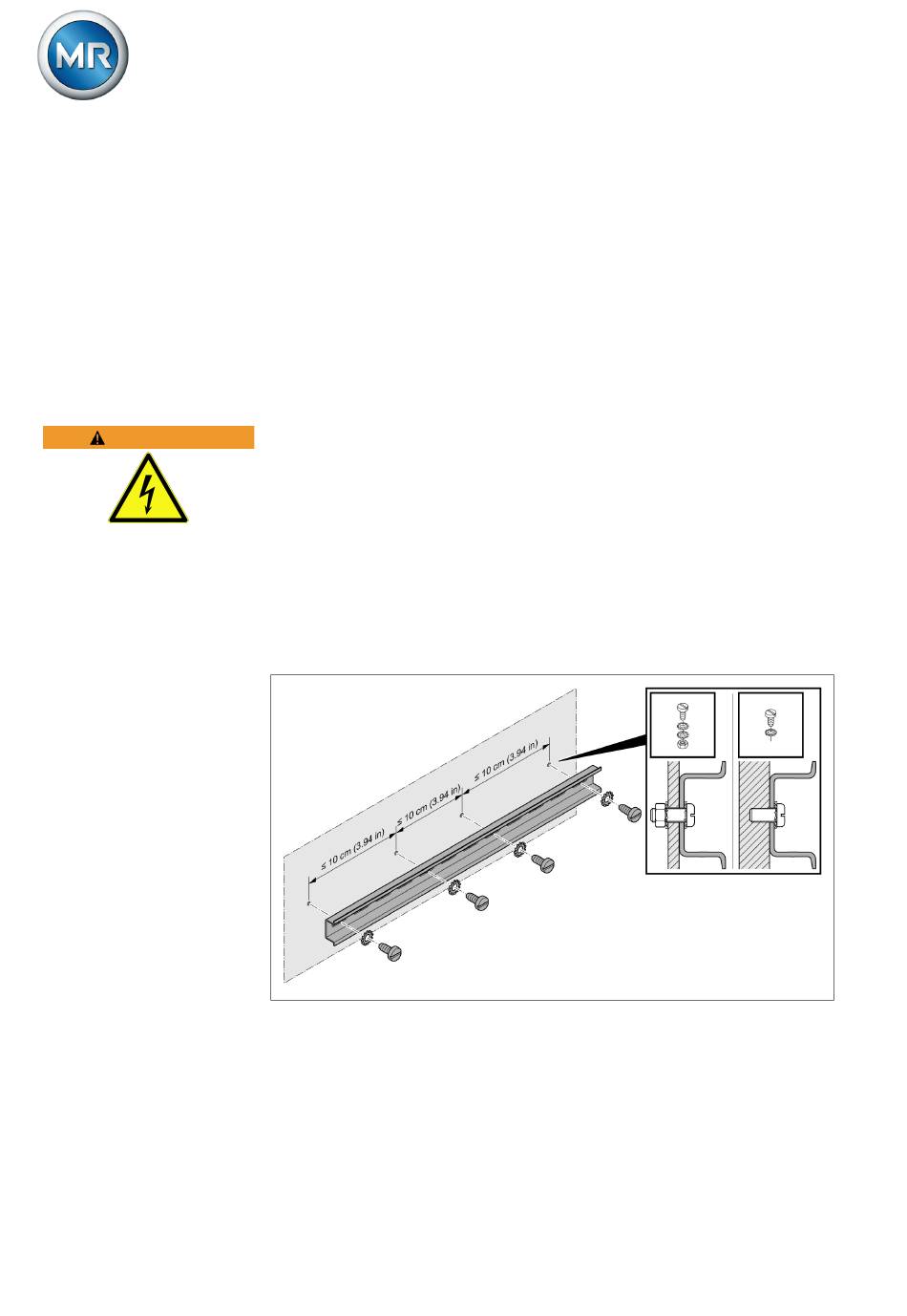

Figure 34: Fastening the cap rail
