8 Operation
Maschinenfabrik Reinhausen GmbH 2018
GOOSE datagram requirements
In order to link GOOSE datagrams of an IED with device functions, the IED
must contain a GOOSE control block (GSEControl) in the LN0 node and a
valid DataSet and GSE block. The referenced DataSet may contain data ob-
jects (DO) or data attributes (DA). The maximum number of usable data
points per GOOSE message is defined in Private Element type="MR-MAX-
GOOSE-SUBSCRIBER-FCDA". You cannot adjust this value.
You can only use data points with bType BOOLEAN (true | false) and Dbpos
(intermediate-state | off | on | bad-state). The functional constraint must be of
type ST.
Value
true | on
false | off
intermediate-state
bad-state
Table 42: Description of values
The device automatically assesses the quality. If the device receives a qual-
ity not equal to 0, the value is also interpreted as invalid. The device then
generates the IEC 61850 GOOSE communication defective event message.

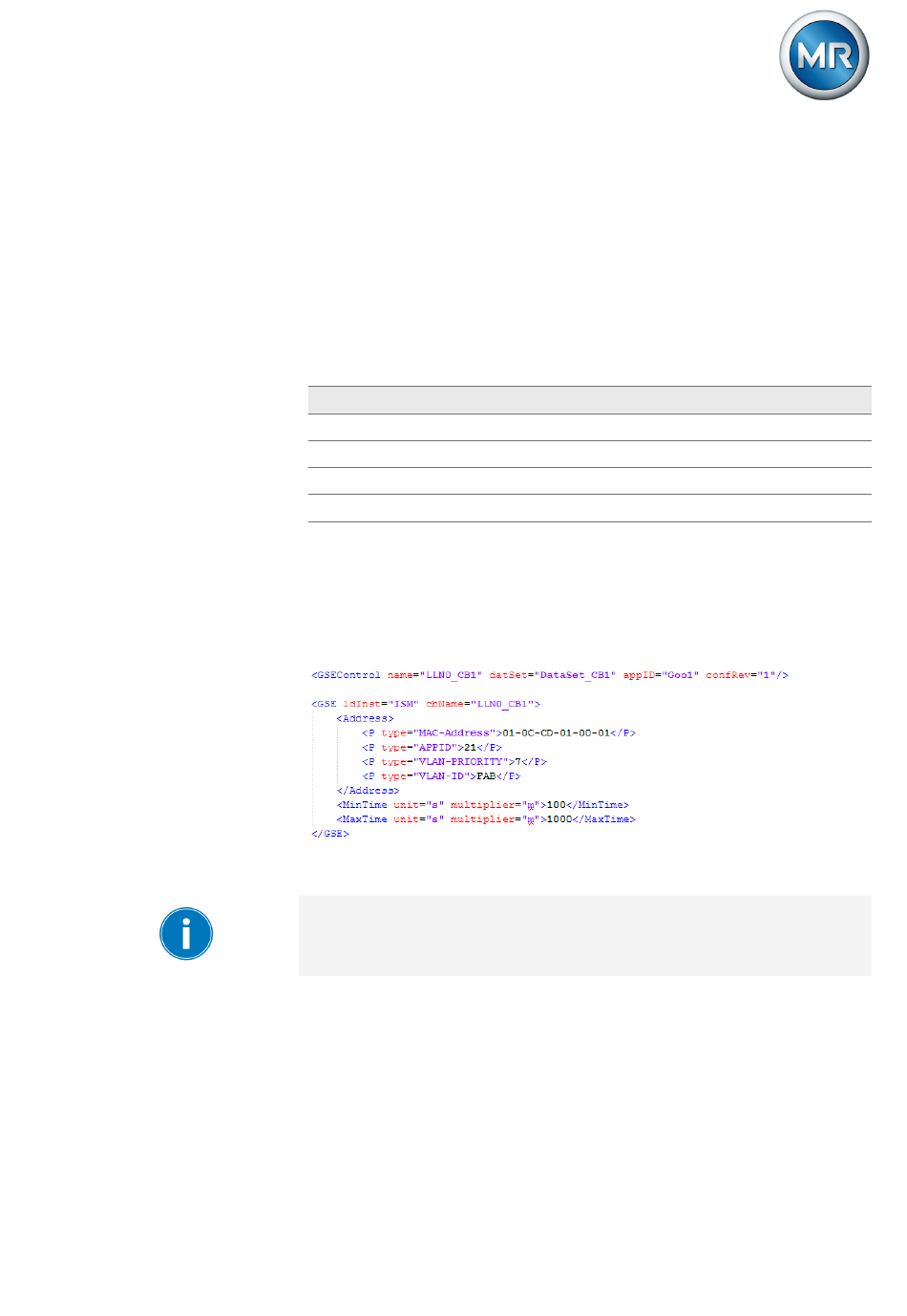

Example:
Configuration
To configure the device as a GOOSE subscriber, you have to call up the vi-
sualization via a PC. You must have a parameter configurator or administra-
tor user role.
5252433/02 EN
Description
Is used as logical value 1
Is used as logical value 0
Last value received is retained
Error status, value is identified as invalid
®
