24 ECOTAP VPD CONTROL PRO

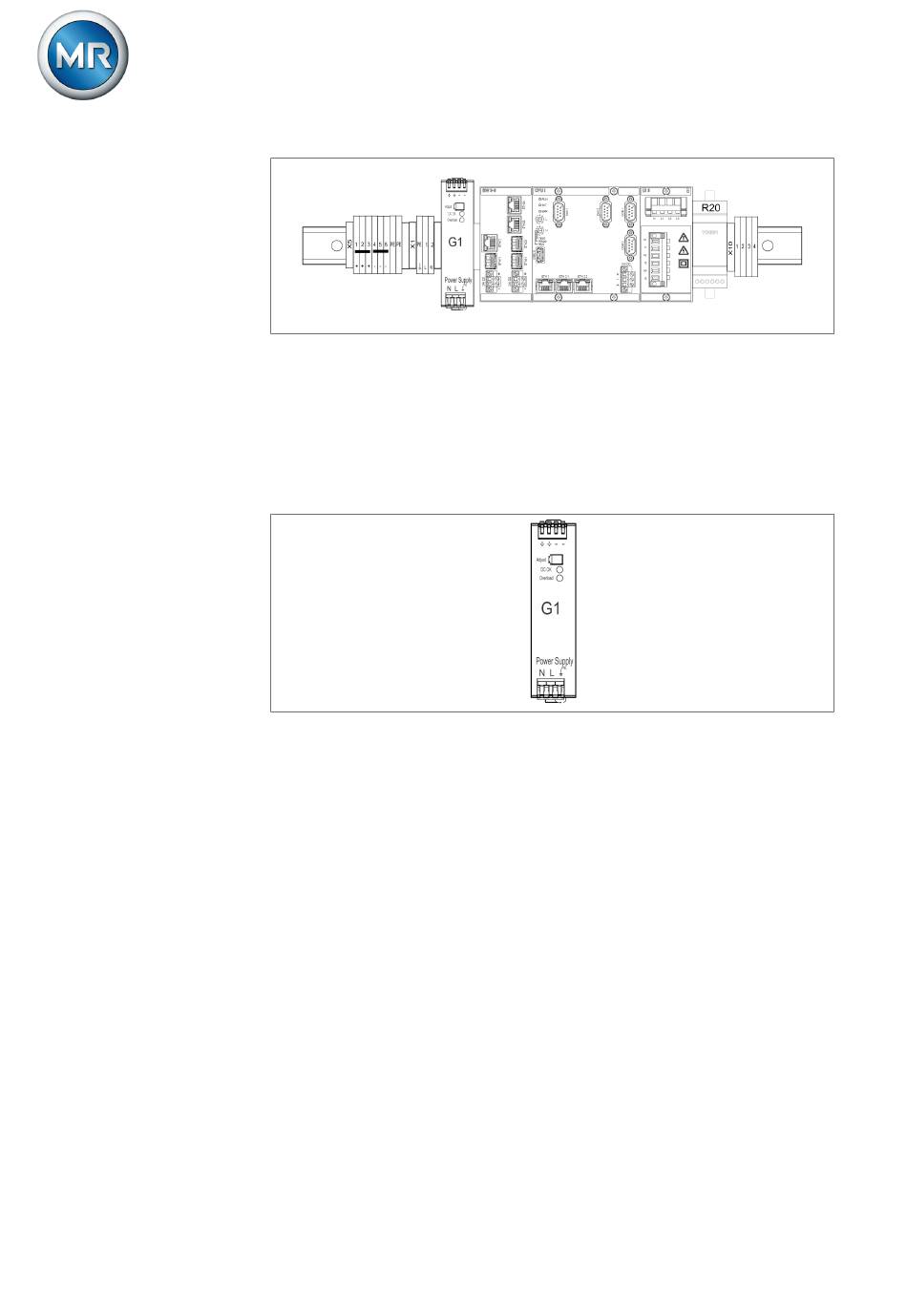

Figure 3: Overview
The individual device assemblies are described in the following section.

4.5.1 Power supply

The G1 PULS DIMENSION QS3.241 assembly supplies power to the de-
vice.
Figure 4: G1 PULS DIMENSION QS3.241 assembly

4.5.2 Central processing unit

The CPU I assembly is the central computing unit for the device. It contains
the following interfaces:
▪ Internal system interface RS232 (COM1)
▪ Serial interface RS232/485 (COM2)
▪ 3x Ethernet (ETH1, ETH 2.1, ETH 2.2)
▪ USB (USB 2.0)
▪ 2x CAN bus (CAN 1, CAN 2)
