6 Mounting
Maschinenfabrik Reinhausen GmbH 2018

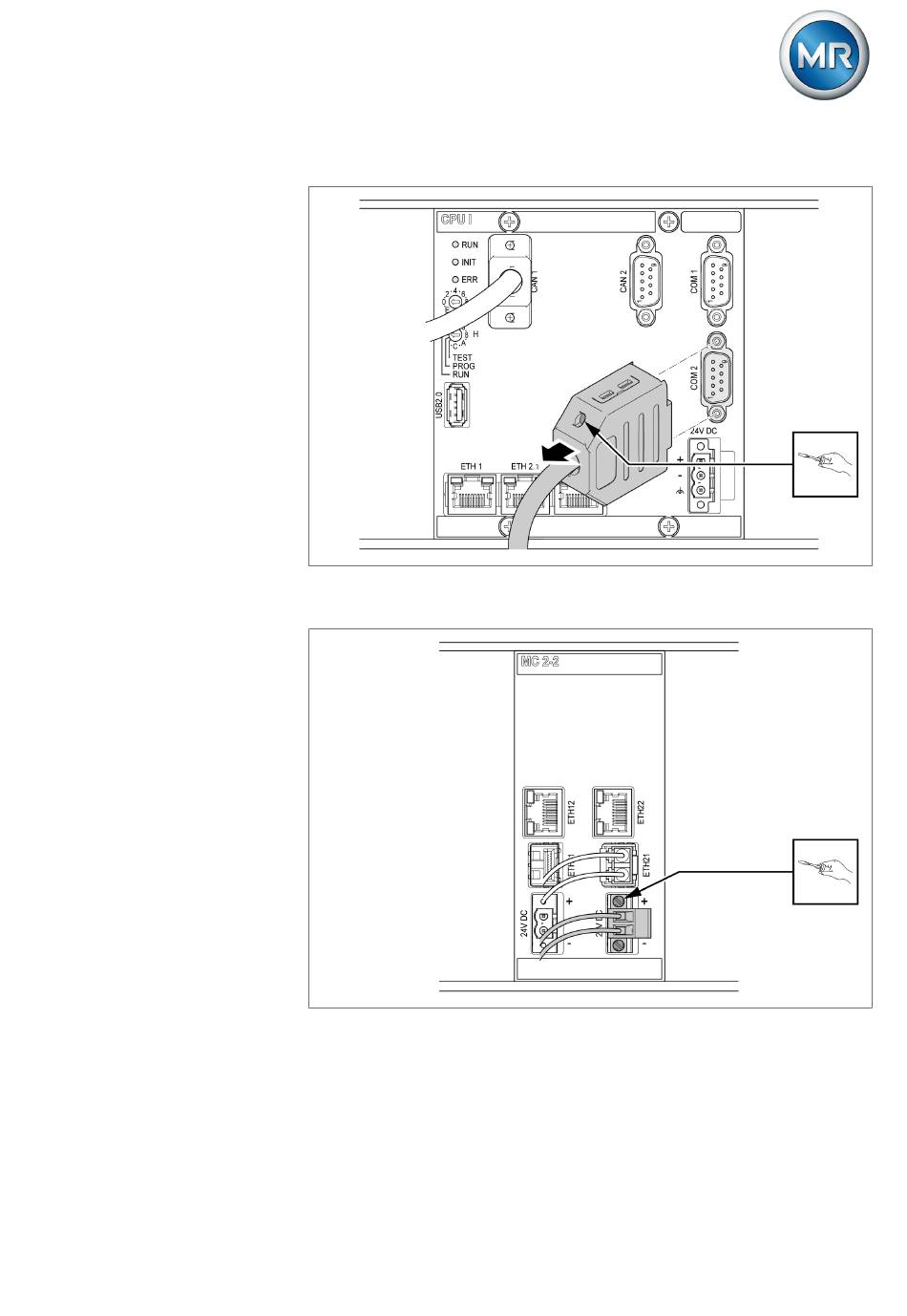

6. CPU assembly: If necessary, remove the data cable (D-Sub 9-pole).
Figure 32: Removing the data cable
7. SW3-3 assembly: Remove the "24V DC" plug.
Figure 33: Removing the plug (voltage supply)
8. Unhook terminal X5 from the cap rail.
9. Unhook the G1 QS3.241 assembly from the cap rail.
10. Optional: Unhook the SW3-3 assembly from the cap rail.
11. Unhook the bus rail with the CPU I and UI 3 assemblies from the cap
rail.
