3 IT security
Maschinenfabrik Reinhausen GmbH 2018

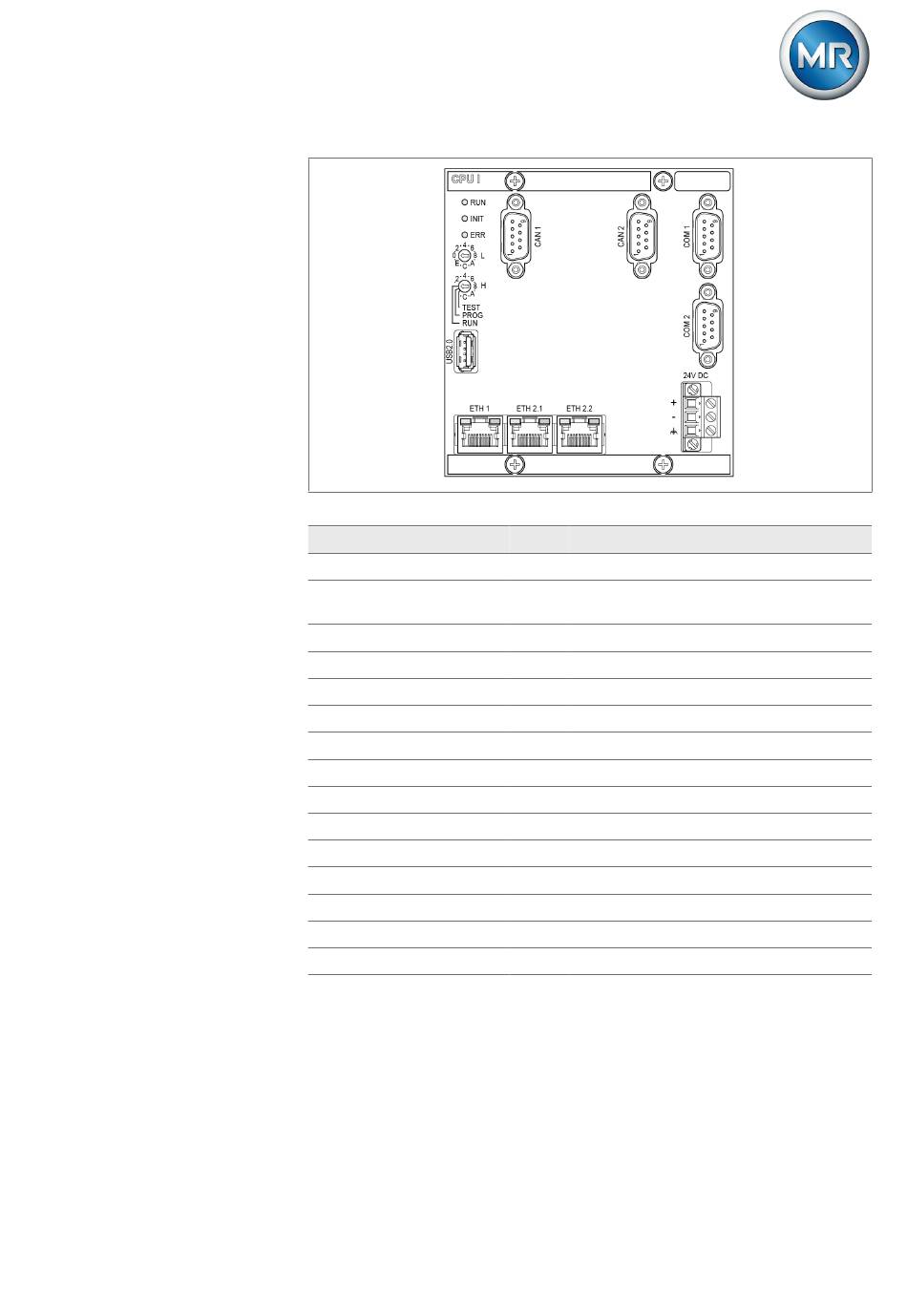

Figure 1: Interfaces of the CPU assembly
Interface Protocol
CAN 1 -
CAN 2 -
COM 1 -
COM 2 -
USB -
ETH 1 TCP
ETH 1 TCP
ETH 1 TCP
ETH 1 UDP
ETH 2.x TCP
ETH 2.x TCP
ETH 2.x TCP
ETH 2.x TCP
ETH2.x TCP
ETH2.x TCP
Table 4: Interfaces and open ports of the CPU assembly
1)
Port is closed if you activate the device's SSL encryption.
2)
Default setting; if you have modified the port for the control system proto-
col, only the set port is opened.
5252433/02 EN
Port Description
- Attachment of the DIO assembly
- Communication with other ISM® devices
(e.g. parallel operation)
- Internal system interface
- Serial interface (SCADA)
- Import or export of data
2)
102 IEC 61850
2)
502 Modbus
2)
20000 DNP3
67 DHCP server
1)
21 FTP (only for MR service)
80 HTTP for web-based visualization
443 HTTPS for web-based visualization
990 FTPS (only for MR service)
8080 HTTP for web-based visualization
8081 HTTPS for web-based visualization
®
ECOTAP VPD
1)
1)
1)
1)
®
CONTROL PRO 19
