6 Mounting

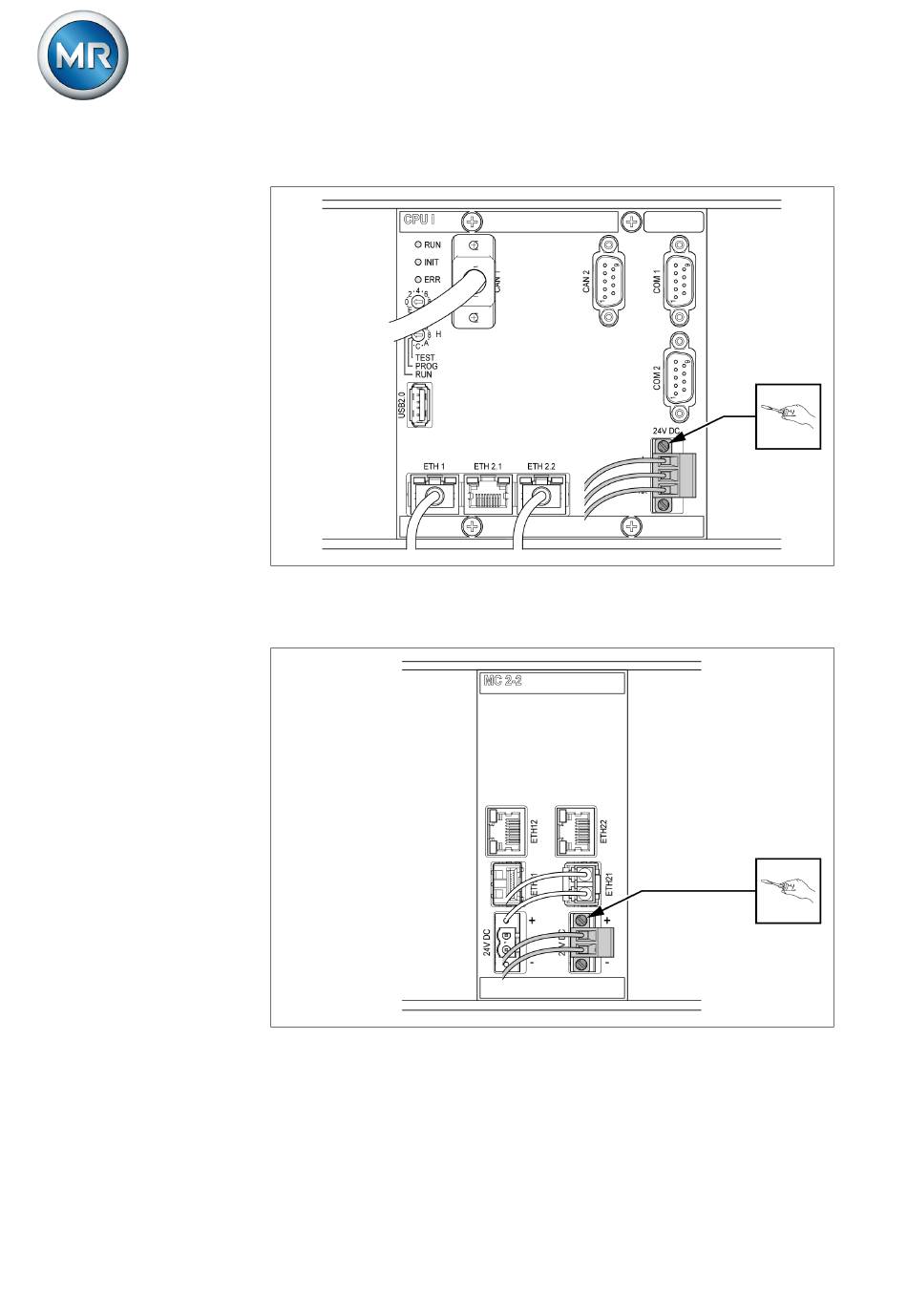

2. Remove the "24V DC" plug from the CPU assembly.
Figure 17: Removing the plug (voltage supply)
3. If the device is equipped with the SW3-3 or MC2-2 assembly: Remove the
"24V DC" plug from the SW3-3 or MC2-2 assembly.
Figure 18: Removing the plug (voltage supply)
®
®
38
ECOTAP
VPD
CONTROL PRO
5252433/02 EN
Maschinenfabrik Reinhausen GmbH 2018
