8.11.2 Displaying IEC 61850 log (optional)

8.11.3 Configuring IEC 60870-5-104 (optional)

® ®
122 ECOTAP VPD CONTROL PRO
Under IEC 61850 log you can display the logbook for the IEC 61850 control
system. You can switch the display between the server and client (only with
GOOSE subscriber).

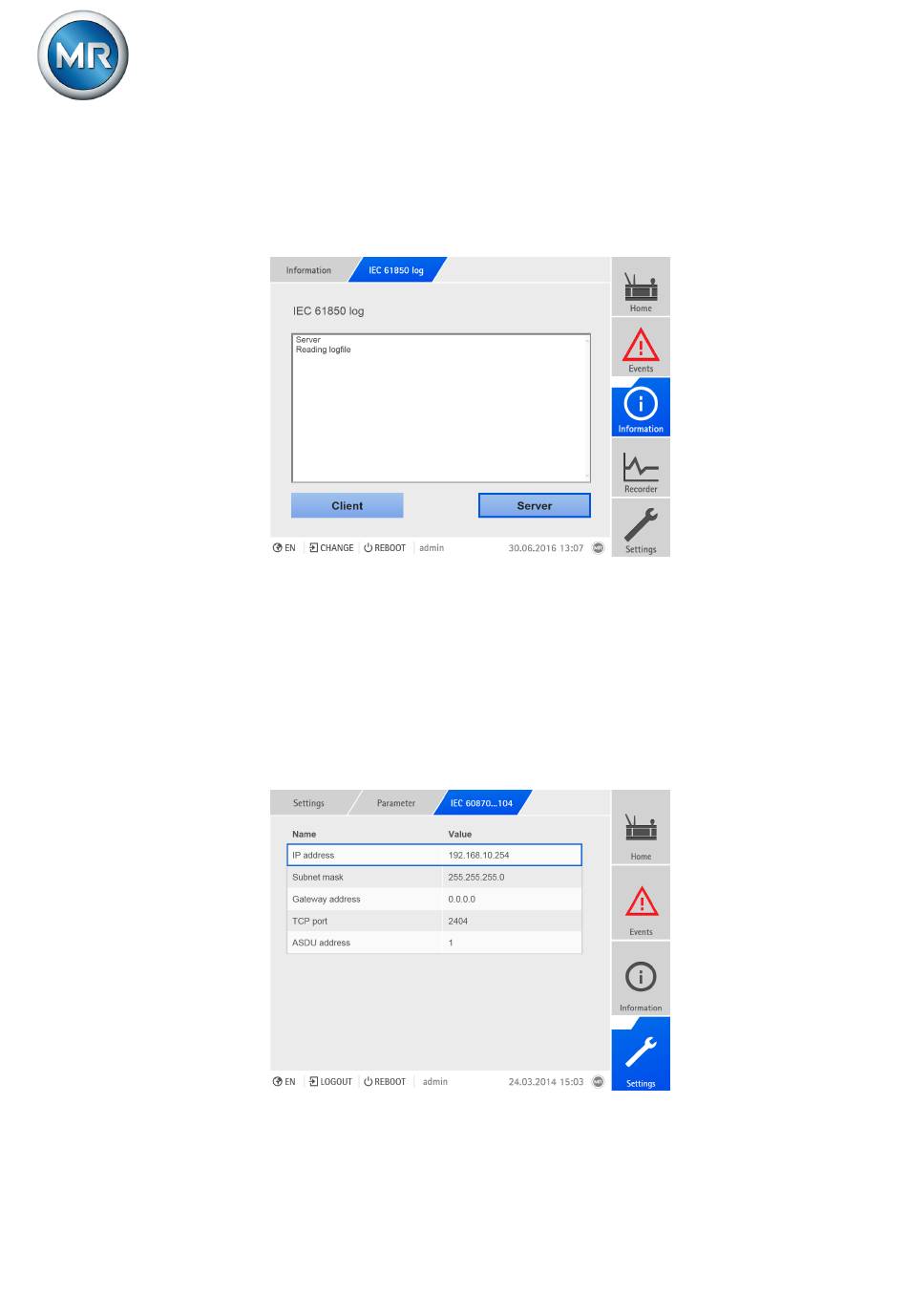

Figure 79: Displaying IEC 61850 log
To call up the IEC 61850 log, proceed as follows:
1. Go to Information > IEC 61850 log.
2. Optional: Press the Server or Client button to change the display.
If you want to use the IEC 60870-5-104 control system protocol, you must
set the following parameters.
Figure 80: Setting parameters for IEC60870-5-104
