Column Description
TH Threshold value for measured values. The data point is
only transferred again if the change of value is greater
than the threshold value.
▪ If you enter the value 0, no threshold value is active.
▪ If you do not enter any value, the device adopts the
▪ Notice: You can only enter a threshold value for data
CT Interval in ms for periodic transmission of the data point. If
you set 0, the data point is not transmitted periodically.
Notice: You can only enter an interval for data points of
type 9, 11 or 13.
Table 43: Configuring IEC 60870-5-101 data points
® ®
136 ECOTAP VPD CONTROL PRO
threshold value defined by the device parameter. If no
device parameter is available for the threshold value,
no threshold value is active either.
points of type 9, 10, 11, 12, 13, 14, 21, 34, 35 or 36.

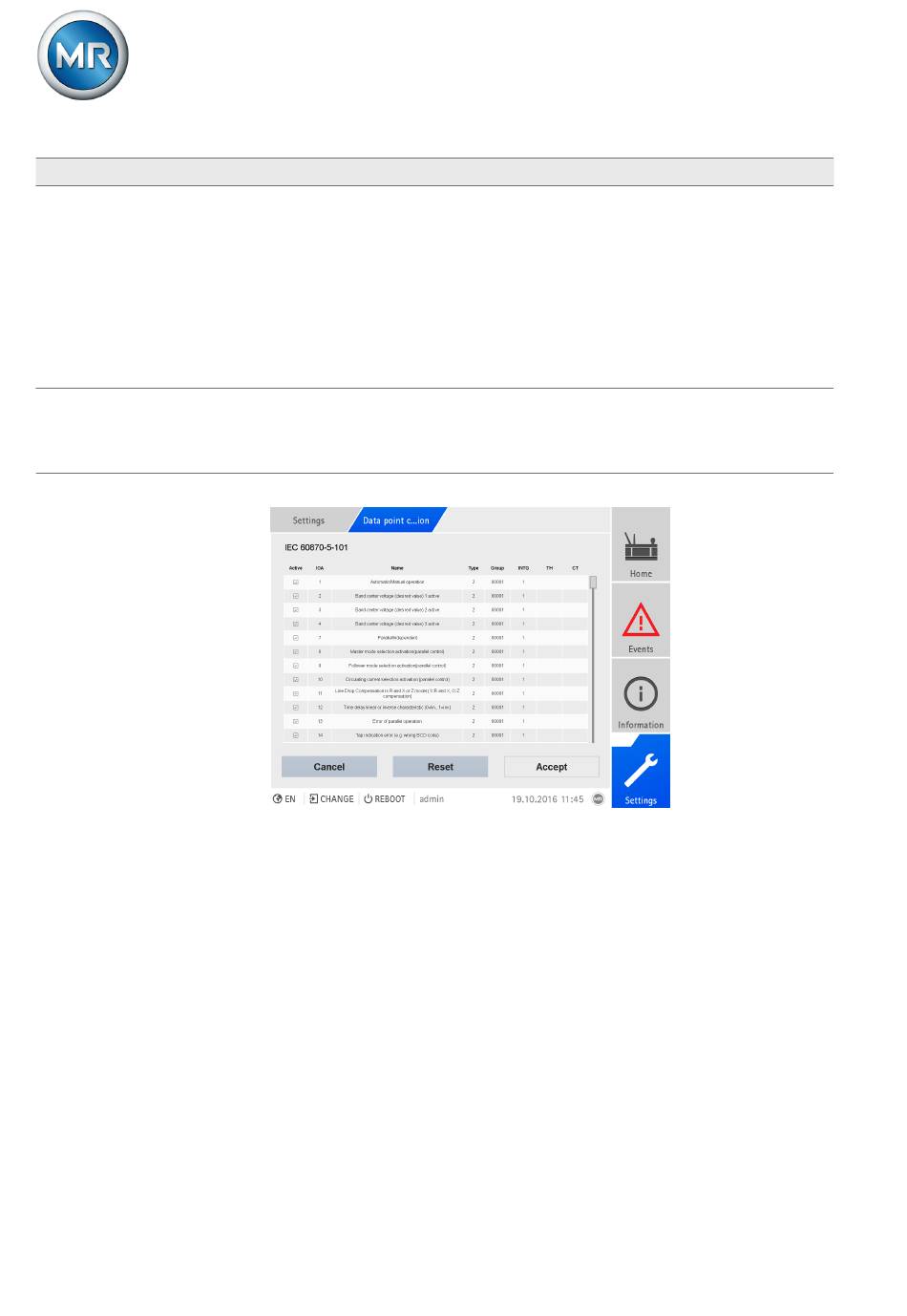

Figure 88: Configuring IEC 60870-5-101 data points
Proceed as follows to configure the data points:
1. Go to Settings > Data point configuration.
2. Adjust the data points as required.
3. Press the Accept button to adopt the modified list of data points.
4. Restart the device to activate the modified list of data points.
