To connect via the ETH2.2 interface on the CPU assembly, proceed as fol-
lows:
1. Connect the PC and device using an Ethernet cable (RJ45 plug) via the
ETH2.2 interface.

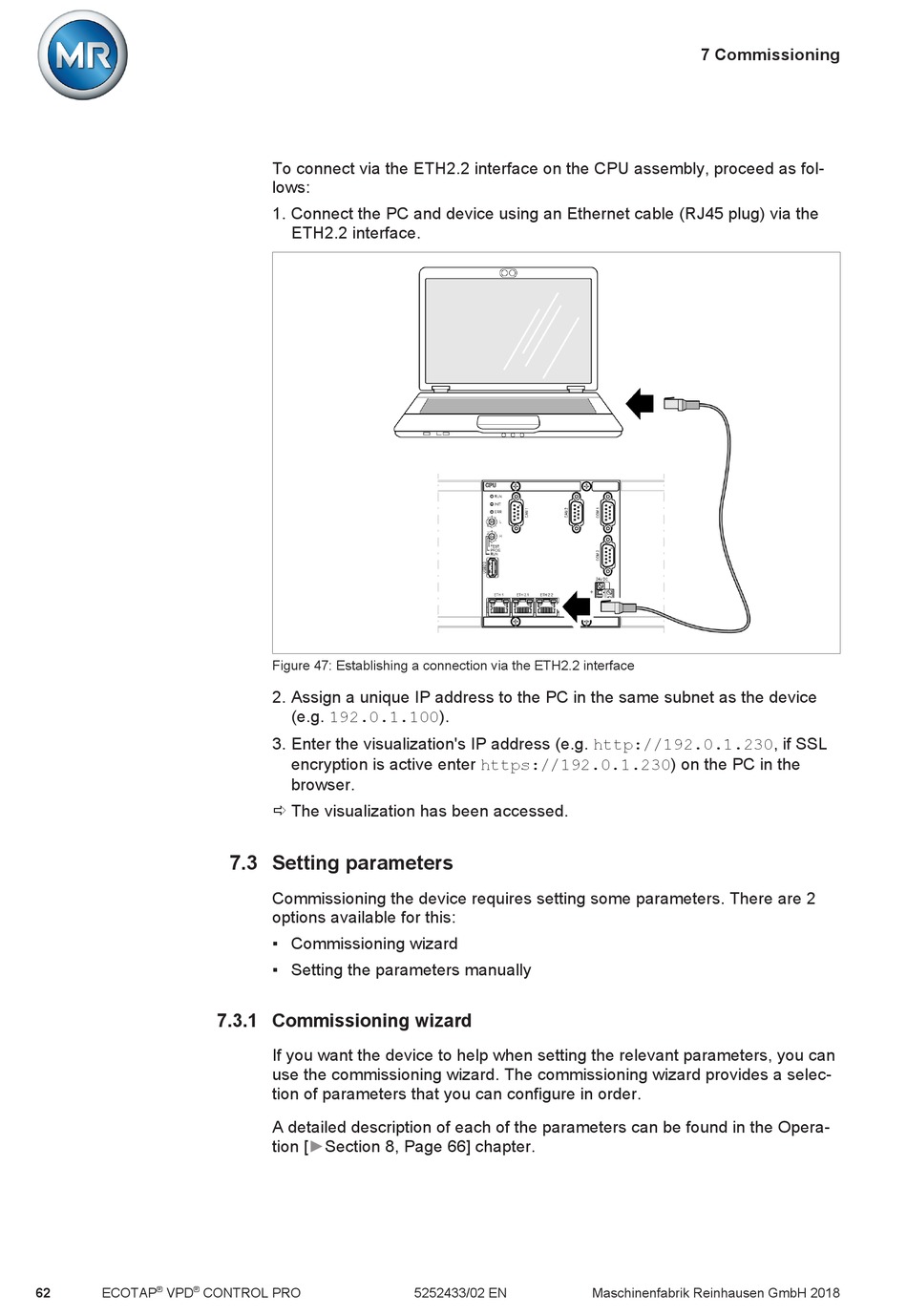

Figure 47: Establishing a connection via the ETH2.2 interface
2. Assign a unique IP address to the PC in the same subnet as the device
(e.g. 192.0.1.100).
3. Enter the visualization's IP address (e.g. http://192.0.1.230, if SSL
encryption is active enter https://192.0.1.230) on the PC in the
browser.
ð The visualization has been accessed.

7.3 Setting parameters

Commissioning the device requires setting some parameters. There are 2
options available for this:

▪ Commissioning wizard

▪ Setting the parameters manually
7.3.1 Commissioning wizard
If you want the device to help when setting the relevant parameters, you can
use the commissioning wizard. The commissioning wizard provides a selec-
tion of parameters that you can configure in order.
A detailed description of each of the parameters can be found in the Opera-
tion [►Section 8, Page 66] chapter.
