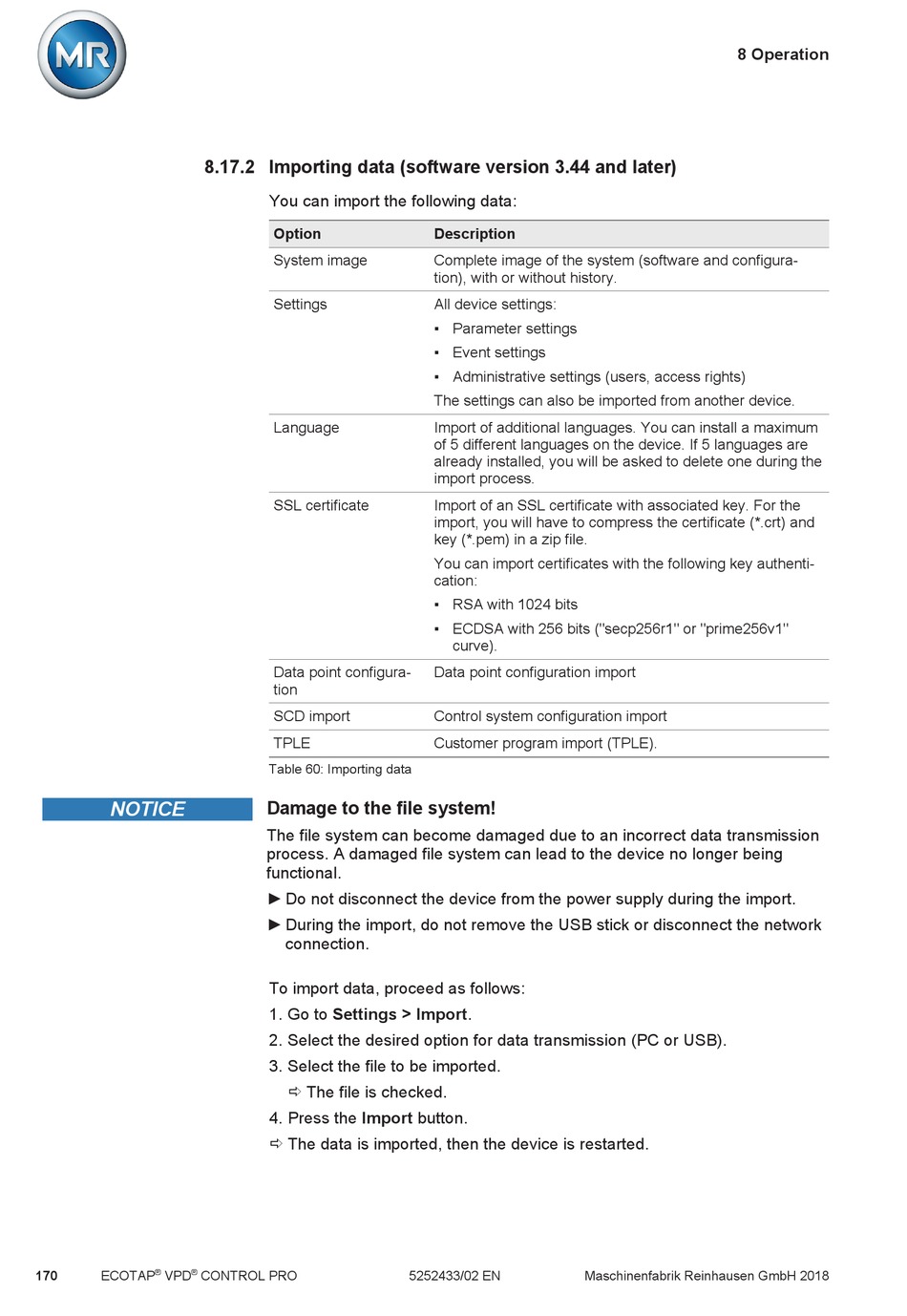

8.17.2 Importing data (software version 3.44 and later)

NOTICE
® ®
170 ECOTAP VPD CONTROL PRO
You can import the following data:
Option Description
System image Complete image of the system (software and configura-
tion), with or without history.
Settings All device settings:
▪ Parameter settings
▪ Event settings
▪ Administrative settings (users, access rights)
The settings can also be imported from another device.
Language Import of additional languages. You can install a maximum
of 5 different languages on the device. If 5 languages are
already installed, you will be asked to delete one during the
import process.
SSL certificate Import of an SSL certificate with associated key. For the
import, you will have to compress the certificate (*.crt) and
key (*.pem) in a zip file.
You can import certificates with the following key authenti-
cation:
▪ RSA with 1024 bits
▪ ECDSA with 256 bits ("secp256r1" or "prime256v1"
Data point configura- Data point configuration import
tion
SCD import Control system configuration import
TPLE Customer program import (TPLE).
Table 60: Importing data
Damage to the file system!
The file system can become damaged due to an incorrect data transmission
process. A damaged file system can lead to the device no longer being
functional.
► Do not disconnect the device from the power supply during the import.
► During the import, do not remove the USB stick or disconnect the network
connection.
To import data, proceed as follows:
1. Go to Settings > Import.
2. Select the desired option for data transmission (PC or USB).
3. Select the file to be imported.
ð The file is checked.
4. Press the Import button.
ð The data is imported, then the device is restarted.
5252433/02 EN
curve).
Maschinenfabrik Reinhausen GmbH 2018
8 Operation
