3.6 Physical Installation/Cooling Clearances

1/L1 3/L2 5/L3
2/T1 4/T2 6/T3
A
READY RUN TRIP LOCAL
Exit Menu
Reset Store
VLT ®
Soft Starter
1/L1 3/L2 5/L3
2/T1 4/T2 6/T3

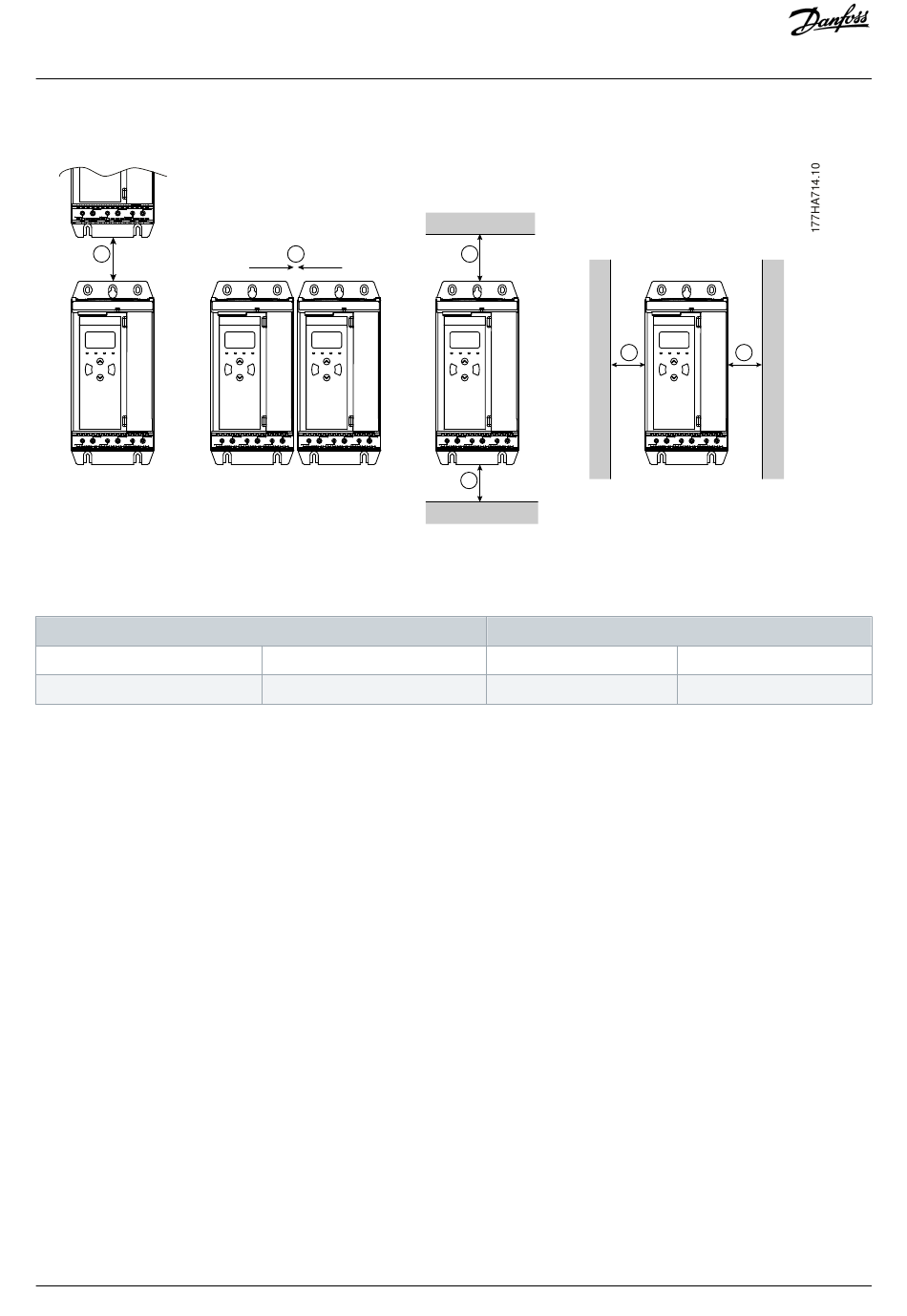

Illustration 4: Clearances
Table 6: Cooling Clearances
Clearance between soft starters
A [mm (in)]
>100 (3.9)

3.7 Accessories

3.7.1 Expansion Cards

The VLT® Soft Starter MCD 600 offers expansion cards for users requiring additional inputs and outputs or advanced functionality. Each
MCD 600 can support a maximum of 1 expansion card.

3.7.1.1 Smart Card

The smart card has been designed to support integration with pumping applications and provides the following additional inputs and
outputs:
• 3 x digital inputs.
• 3 x 4–20 mA transducer inputs.
• 1 x RTD input.
• 1 x USB-B port.
• Remote LCP connector.
Ordering number: 175G0133
Danfoss A/S © 2018.10
B
READY RUN TRIP LOCAL READY RUN TRIP LOCAL
Exit Menu Exit Menu
Reset Store Reset Store
VLT ® VLT ®
Soft Starter Soft Starter
1/L1 3/L2 5/L3 1/L1 3/L2 5/L3
2/T1 4/T2 6/T3 2/T1 4/T2 6/T3
B [mm (in)]
>10 (0.4)
C
READY RUN TRIP LOCAL
Exit Menu
Reset Store
VLT ®
Soft Starter
1/L1 3/L2 5/L3
2/T1 4/T2 6/T3
C
Clearance to solid surfaces
C [mm (in)]
>100 (3.9)
System Design
D D
READY RUN TRIP LOCAL
Exit Menu
Reset Store
VLT ®
Soft Starter
1/L1 3/L2 5/L3
2/T1 4/T2 6/T3
D [mm (in)]
>10 (0.4)
