MCD Soft Starter Remote Operator
■
Introduction
Important User Information .............................................................................. 2
General Description ......................................................................................... 2
Manual Description .......................................................................................... 2
■
Installation
Installation ....................................................................................................... 3
Mounting ........................................................................................................... 3
Connection ...................................................................................................... 3
■
Specifications
General Technical Data .................................................................................... 5
Dimensions ...................................................................................................... 5
■
Operation
Functionality Range .......................................................................................... 6
Operation ......................................................................................................... 6
Trip Codes ....................................................................................................... 6
■
Overview .......................................................................................................... 8
Calibration ....................................................................................................... 8
Programming ................................................................................................... 8
■
Fault Description
General Faults .................................................................................................. 9
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Danfoss MCD Series
Summary of Contents for Danfoss MCD Series
-
Page 1: Table Of Contents
Functionality Range ..................6 Operation ......................6 Trip Codes ....................... 6 ■ 4-20 mA Analogue Output Overview ......................8 Calibration ....................... 8 Programming ....................8 ■ Fault Description General Faults ....................9 MG.17.E2.02 – VLT is a registered Danfoss trademark... -
Page 2: Important User Information
RS485 serial communications network using Modbus RTU or standard AP ASCII communications protocol. For details, please contact Danfoss and request a copy of the Modbus Module Operating Instructions. MG.17.E2.02 – VLT is a registered Danfoss trademark... -
Page 3: Installation

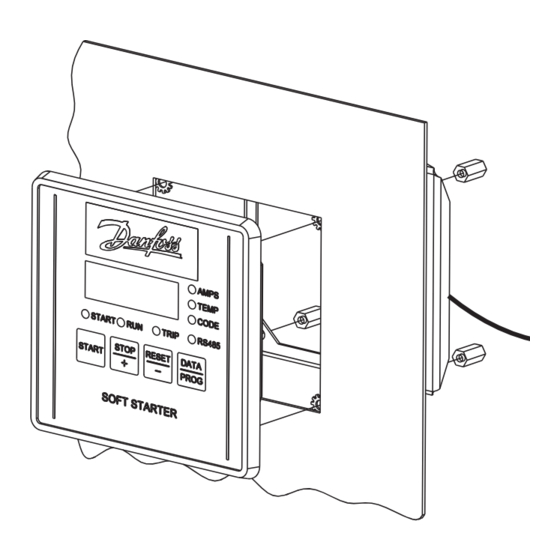

Fasteners (x 4) Mounting Bracket Universal Panel Cutout (92 x 92 mm) Remote Operator For use on a flat surface of a NEMA 1 or NEMA 12 enclosure. MG.17.E2.02 – VLT is a registered Danfoss trademark... - Page 4 ANALOGUE OUTPUT 18 ~ 30 VAC / VDC (MOTOR CURRENT) For the Remote Operator to operate correctly, a link must also be made between A1 and N2 on the MCD 200. MG.17.E2.02 – VLT is a registered Danfoss trademark...
-
Page 5: General Technical Data
Standards Approvals ..............................IEC 60947-4-2 UL / C-UL ..............................UL 508 CE ..............................IEC 60947-4-2 Dimensions AMPS TEMP CODE START TRIP RS485 DATA STOP RESET START PROG SOFT STARTER 37.5 MG.17.E2.02 – VLT is a registered Danfoss trademark... -
Page 6: Functionality Range
Any soft stop settings are ignored. Invalid Motor Connection CPU Error Data/Prog Pushbutton: Selects the parameter to be Incorrect Main Control shown on the display (Motor Current or Motor Module Temperature). MG.17.E2.02 – VLT is a registered Danfoss trademark... - Page 7 Trip Codes C (Communications Failure), L (FLC Out of Range) and Y (Incorrect Main Control Module) are displayed as 1– on the Remote Operator. These trip codes are displayed correctly on the soft starter front panel. MG.17.E2.02 – VLT is a registered Danfoss trademark...
-
Page 8: Overview
Programming Mode will automatically close if no input is registered for 20 seconds. Any changes already Programming Mode is exited when the Data/Prog made will be saved. Pushbutton is pressed after Parameter 8. MG.17.E2.02 – VLT is a registered Danfoss trademark... -
Page 9: General Faults
The motor cannot be started. • Check that control voltage is connected to the starter. • If connected to an MCD 200 starter, check that terminals A1 and N2 are linked. MG.17.E2.02 – VLT is a registered Danfoss trademark... - Page 10 MCD Soft Starter Remote Operator MG.17.E2.02 – VLT is a registered Danfoss trademark...
- Page 11 MCD Soft Starter Remote Operator MG.17.E2.02 – VLT is a registered Danfoss trademark...
- Page 12 MCD Soft Starter Remote Operator MG.17.E2.02 – VLT is a registered Danfoss trademark...
