Processing details

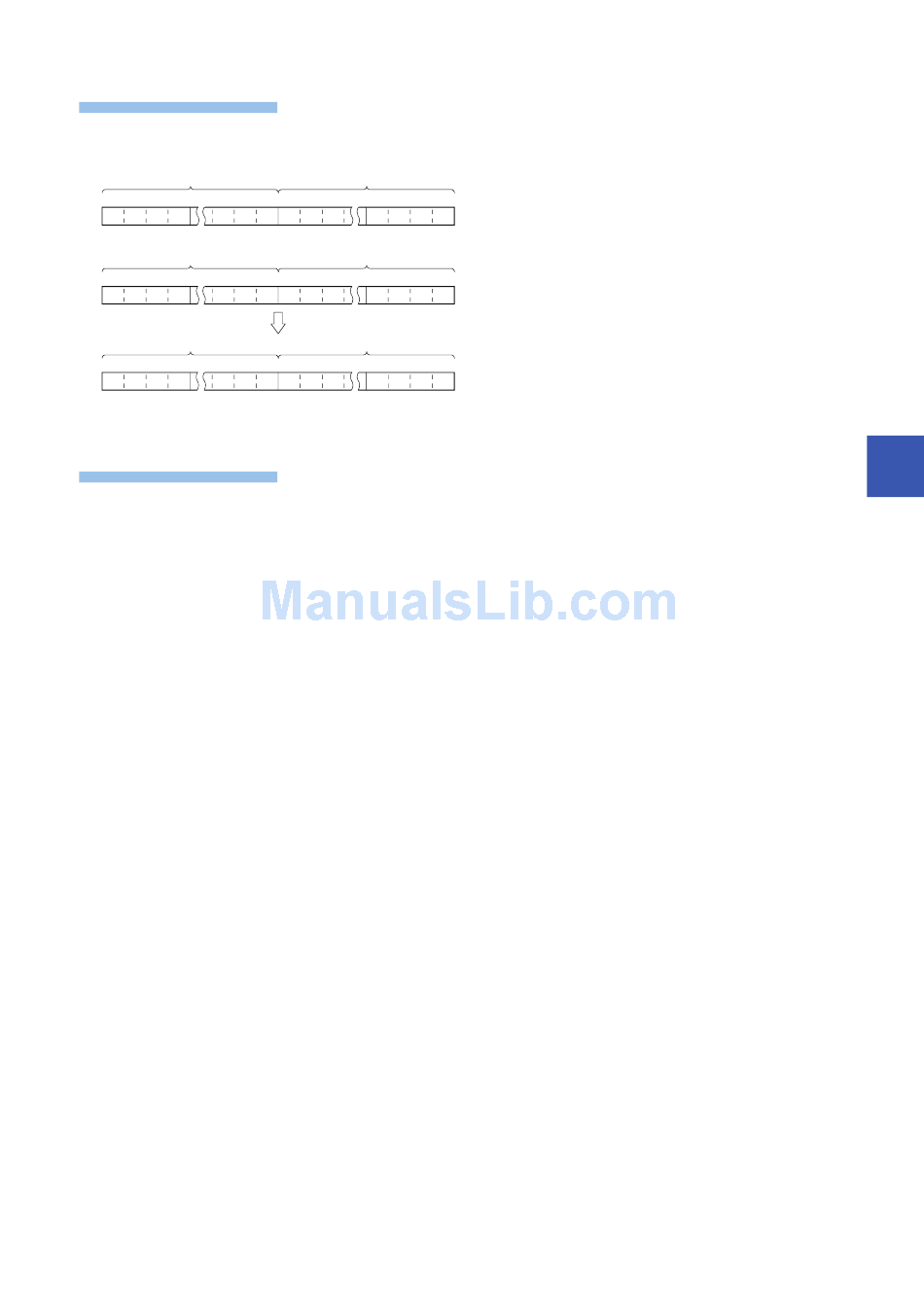

• These instructions perform an OR operation (bit-by-bit) on the 32-bit binary data in the device specified by (s1) and the 32-
bit binary data in the device specified by (s2), and store the operation result in the device specified by (d).
(s1)+1
b31 ∙∙∙
(s1)
0 0 1 1 0 0
(s2)+1
∙∙∙
b31
(s2)
0 0 1 0 1 1
(d)+1
∙∙∙
b31
(d) 0 0 1 1 1 1
• When a bit device is specified, the instruction performs an operation by assuming that the ones after the number of digit-
specified points are 0.
Operation error
There is no operation error.
(s1)
b16 b15 ∙∙∙
1 1 0 0 1 1 0
OR
(s2)
∙∙∙
b16 b15
0 0 0 0 1 1 1
(d)
∙∙∙
b16 b15
1 1 0 0 1 1 1
b0
0
b0
1
b0
1
