Parameter
Web: Tone Index Table
EMS: Analog Gateway Provisioning >
Tone Index
[ToneIndex]
44.11.7.2

Tone Detection Parameters

The signal tone detection parameters are described in the table below.
Parameter
EMS: DTMF Enable
[DTMFDetectorEnable]
EMS: MF R1 Enable
[MFR1DetectorEnable]
EMS: User Defined Tone Enable
[UserDefinedToneDetectorEnable]
EMS: SIT Enable
[SITDetectorEnable]
Version 6.6
This table parameter configures the Tone Index table, which
allows you to define distinctive ringing and call waiting tones
per FXS endpoint (or for a range of FXS endpoints).
The format of this parameter is as follows:
[ToneIndex]
FORMAT ToneIndex_Index = ToneIndex_FXSPort_First,
ToneIndex_FXSPort_Last, ToneIndex_SourcePrefix,
ToneIndex_DestinationPrefix, ToneIndex_PriorityIndex;
[\ToneIndex]
For example, the configuration below plays the tone Index #3
to FXS ports 1 and 2 if the source number prefix of the
received call is 20.
ToneIndex 1 = 1, 2, 20*, , 3;
Note: For a detailed description of this table, see Configuring
FXS Distinctive Ringing and Call Waiting Tones per
Source/Destination Number.

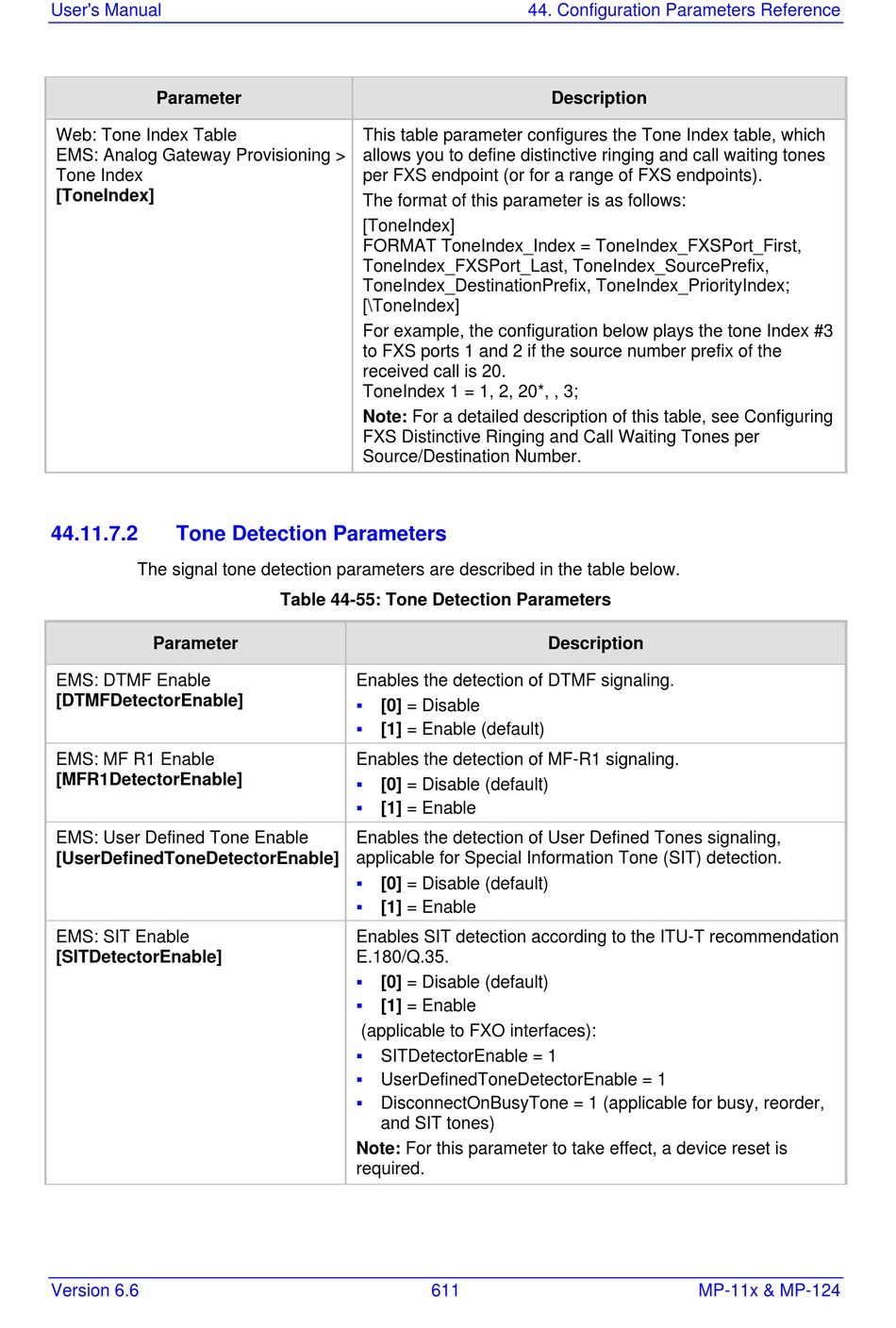

Table 44-55: Tone Detection Parameters
Enables the detection of DTMF signaling.

[0] = Disable

[1] = Enable (default)
Enables the detection of MF-R1 signaling.

[0] = Disable (default)

[1] = Enable
Enables the detection of User Defined Tones signaling,
applicable for Special Information Tone (SIT) detection.

[0] = Disable (default)

[1] = Enable
Enables SIT detection according to the ITU-T recommendation
E.180/Q.35.

[0] = Disable (default)

[1] = Enable
(applicable to FXO interfaces):

SITDetectorEnable = 1

UserDefinedToneDetectorEnable = 1

DisconnectOnBusyTone = 1 (applicable for busy, reorder,
and SIT tones)
Note: For this parameter to take effect, a device reset is
required.
