6. Enabling the Voice Ports (Channels)
The MP-124 ports are enabled by assigning them a phone number.
To enable MP-124 ports:
1. Open the 'Endpoint Phone Number Table' page (Configuration tab > VoIP menu >
GW and IP to IP > Hunt Group > Endpoint Phone Number).
2. In the 'Channel(s)' column, enter the port number of the FXS port that you want to
enable.
3. In the 'Phone Number' column, enter the port's phone number (e.g. 401, typically
provided by your VoIP provider), and then click Submit.

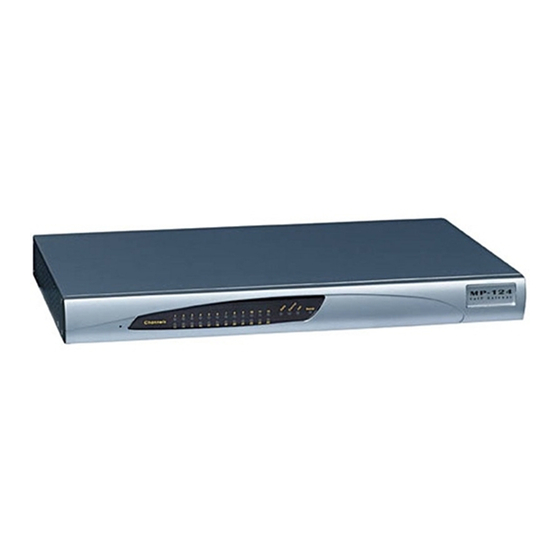

This Fast Track Guide describes the quick setup for AudioCodes MediaPack MP-124 AC
powered, Voice-over-IP (VoIP) SIP media gateway.
Information contained in this document is believed to be accurate and reliable at the time
of printing. However, due to ongoing product improvements and revisions, AudioCodes
cannot guarantee accuracy of printed material after the Date Published nor can it accept
responsibility for errors or omissions.
Updates to this document and other documents as well as software updates for the
MP-124 gateway can be viewed by registered customers on the AudioCodes
Web site at www.audiocodes.com/downloads.
© Copyright 2010 AudioCodes Ltd. All rights reserved.
This document is subject to change without notice.
Date Published: December-16-2010
Document #: LTRT-53207
Notice
AudioCodes CPE & Access Gateway Products
MP-124 AC Powered
SIP
Fast Track Guide
1. Before Installing
Ensure that your MP-124 is supplied with the following items:
AC power cord Two brackets and screws for 19-inch mounting
You'll also need the following (not supplied):
RJ-45 Ethernet crossover cable
Internet connection
PSTN telephone provider
2. Physical Description

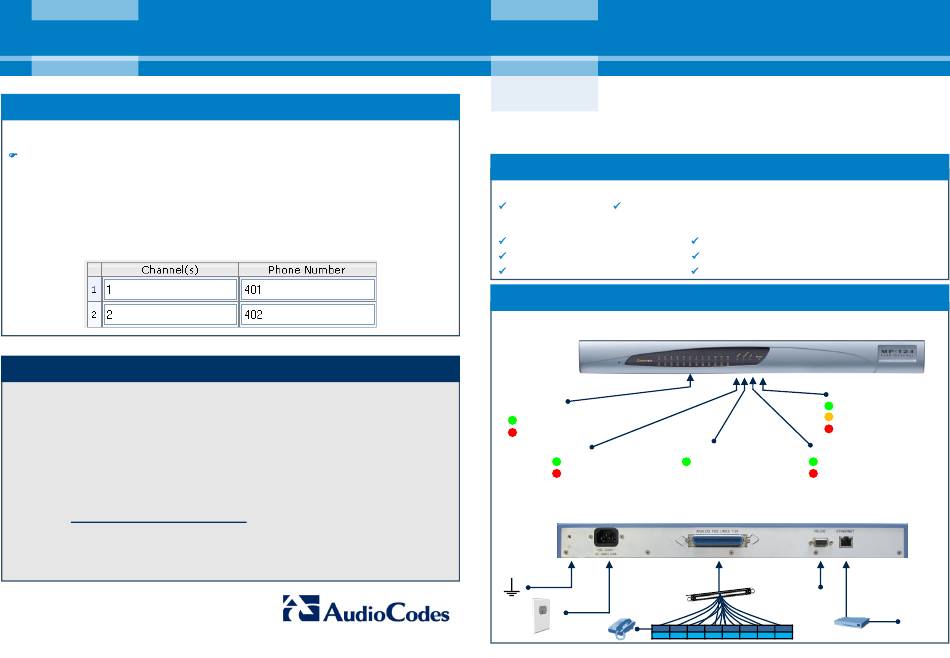

The MP-124 front panel provides operating status LEDs, as shown below:
Channels
On: Off-Hook
On: Line Malfunction
Data
Flash: Transmitting RTP
Flash: Receiving RTP
Off: No Traffic
The MP-124 rear panel provides ports, as shown below:
Grounding
50-Pin Telco
Lug
(24 FXS Interfaces)
AC Power
MDF
RJ-45 Ethernet straight-through cable
VoIP provider
PC running a Web browser
Ready
On: Power On
Flash: Initialization
On: Malfunction
Control Lan
On: Sending/Receiving On: 10/100BaseTX Link
SIP Messages On: Malfunction
Off: No Traffic
RJ-45 Ethernet
(10/100BaseTX)
RS-232
Serial
Switch
WAN
