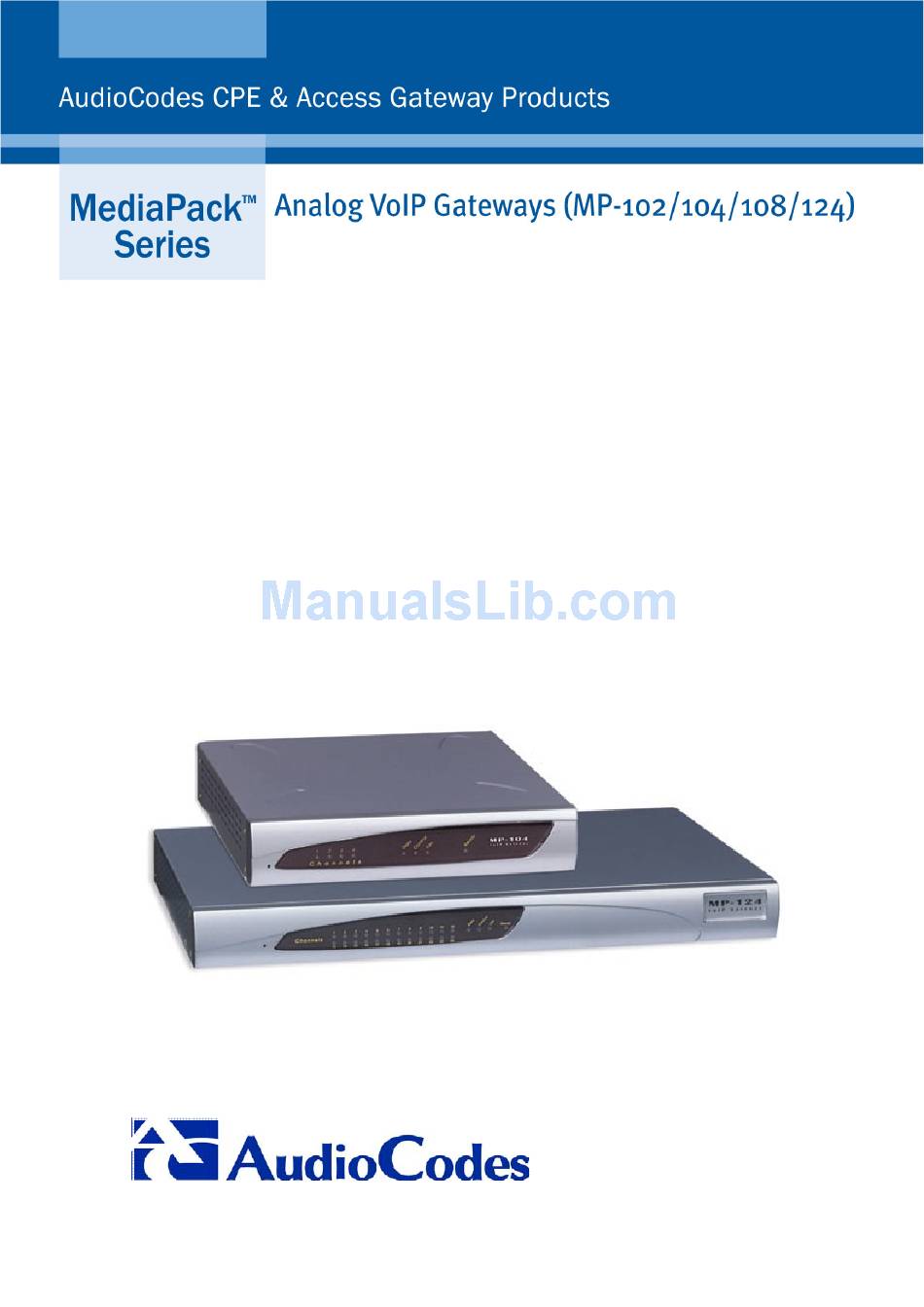

- Page 1 MP-1xx Fast Track Installation Guide MGCP, H.323 & SIP Version 4.4 Document #: LTRT-61405...
- Page 3 MP-1xx Fast Track Installation Guide MGCP, H.323 & SIP Version 4.4 Document #: LTRT-61405 Published March 2005...
- Page 4 Notice This Fast Track Installation Guide describes the installation of the AudioCodes MP-1xx MediaPack Series VoIP gateways applying to MGCP, H.323 and SIP versions. Information contained in this document is believed to be accurate and reliable at the time of printing. However, due to ongoing product improvements and revisions, AudioCodes cannot guarantee the accuracy of printed material after the Date Published nor can it accept responsibility for errors or omissions.
-
Page 5: Table Of Contents
Fast Track Installation Guide Contents Table of Contents Quick Start ..............................7 Installing the MP-1xx ..........................8 2.1 Unpacking ............................8 2.2 Package Contents ..........................8 2.3 Mounting the MP-1xx ..........................9 2.3.1 Mounting the MP-1xx on a Desktop ..................9 2.3.2 Installing the MP-10x in a 19-inch Rack................9 2.3.3 Installing the MP-124 in a 19-inch Rack ................ - Page 6 MP-1xx List of Figures Figure 1-1: Required Steps to Install the MP-1xx....................7 Figure 2-1: Desktop Mounting ........................... 9 Figure 2-2: MP-108 with Brackets for Rack Installation .................. 10 Figure 2-3: MP-124 with Brackets for Rack Installation .................. 11 Figure 2-4: MP-102 Wall Mount........................11 Figure 2-5: MP-104/FXS Rear Panel Connectors ...................
-
Page 7: Customer Support
Trademarks AC logo, Ardito, AudioCoded, AudioCodes, AudioCodes logo, IPmedia, Mediant, MediaPack, MP- MLQ, NetCoder, Stretto, TrunkPack, VoicePacketizer and VoIPerfect, are trademarks or registered trademarks of AudioCodes Limited. All other products or trademarks are property of their respective owners. Customer Support Customer technical support and service are provided by AudioCodes’... -
Page 8: Related Documentation
MP-1xx Disconnect the MP-1xx from the mains and from the Telephone Network Warning: Voltage (TNV) before servicing. Where “network” appears in this manual, it means LAN, WAN, etc. accessed Note: via the gateway’s Ethernet interface. Related Documentation Document # Manual Name LTRT-714xx (e.g., LTRT-71401) MP-1xx MGCP User’s Manual LTRT-616xx... -
Page 9: Quick Start
Fast Track Installation Guide 1. Quick Start Quick Start This Fast Track Installation Guide helps you to set up the MP-1xx gateway for the first time. Prior knowledge of IP networks is required. Refer to Figure 1-1 for the quick setup flow. For detailed information on how to fully configure the gateway, refer to the MP-1xx User’s Manuals. -
Page 10: Installing The Mp-1Xx
Remove the MP-1xx gateway from the carton. Check that there is no equipment damage. Check, retain and process any documents. Notify AudioCodes or your local supplier of any damage or discrepancies. Retain any diskettes or CDs. Package Contents Ensure that in addition to the MP-1xx, the package contains: •... -
Page 11: Mounting The Mp-1Xx
Fast Track Installation Guide 2. Installing the MP-1xx Mounting the MP-1xx The MP-1xx can be mounted on a desktop or on a wall (only MP-10x), or installed in a standard 19-inch rack. 2.3.1 Mounting the MP-1xx on a Desktop No brackets are required. Simply place the MP-1xx on the desktop in the position you require. Figure 2-1 on the next page shows the MP-108. -
Page 12: Installing The Mp-124 In A 19-Inch Rack
MP-1xx Insert the peg on the short bracket into the third air vent down on the column of air vents nearest the front panel. Swivel the bracket until the holes in the bracket line up with the two empty screw holes on the device. -
Page 13: Mounting The Mp-10X On A Wall
Fast Track Installation Guide 2. Installing the MP-1xx Figure 2-3: MP-124 with Brackets for Rack Installation 2.3.4 Mounting the MP-10x on a Wall The MP-10x is mounted on a wall by the addition of two short (equal-length) supplied brackets. The MP-102 with brackets for wall mount is shown in Figure 2-4. -
Page 14: Cabling The Mp-1Xx
MP-1xx Cabling the MP-1xx Refer to Table 2-3 on page for the cabling procedure for the MP-1xx. 2.4.1 MP-1xx Rear Panel Connectors MP-10x (FXS/FXO) gateways feature almost identical rear panel connectors Note 1: and LEDs, located slightly differently from one device to the next. The RJ-45 port (Eth 1) on the MP-10x/FXO rear panel is inverted on the MP- Note 2: 1xx/FXS. -
Page 15: Cables And Cabling Procedure
Fast Track Installation Guide 2. Installing the MP-1xx 2.4.2 Cables and Cabling Procedure Verify that you have the cables listed under column ‘Cable’ in Table 2-3 before beginning to cable the MP-1xx according to the column ‘Cabling Procedure’. Table 2-3: Cables and Cabling Procedure Cable Cabling Procedure When initializing (connecting the MP-1xx to the network for the first time) use a... -
Page 16: Figure 2-7: Rj-45 Ethernet Connector Pinout
MP-1xx Figure 2-7: RJ-45 Ethernet Connector Pinout RJ-45 Connector and Pinout 1 2 3 4 5 6 7 8 1 - Tx+ 4, 5, 7, 8 2 - Tx- 3 - Rx+ connected 6 - Rx- Figure 2-8: RJ-11 Phone Connector Pinout RJ-11 Connector and Pinout 1 2 3 4 Not connected... -
Page 17: Figure 2-11: Dc Power Supply On The Mp-124
Fast Track Installation Guide 2. Installing the MP-1xx Table 2-4: Pin Allocation in the 50-pin Telco Connector Phone Channel Connector Pins Phone Channel Connector Pins 1/26 13/38 2/27 14/39 3/28 15/40 4/29 16/41 5/30 17/42 6/31 18/43 7/32 19/44 8/33 20/45 9/34 21/46... -
Page 18: Cabling The Lifeline Phone
MP-1xx 2.4.3 Cabling the Lifeline Phone The Lifeline provides a wired analog POTS phone connection to any PSTN or PBX FXS port when there is no power, or when the network fails. Users can therefore use the Lifeline phone even when the MP-1xx is not powered on or not connected to the network. With the MP-108/FXS and MP-104/FXS the Lifeline connection is provided on port #4 (refer to Figure 2-13). -
Page 19: Figure 2-13: Mp-104/Fxs Lifeline Setup
Fast Track Installation Guide 2. Installing the MP-1xx Figure 2-13: MP-104/FXS Lifeline Setup Table 2-6: MP-104/FXS Lifeline Setup Component Descriptions Item # Component Description B: To PSTN wall port. Phone to Port 1. Lifeline to Port 4. PSTN to Splitter (B). Phone to Port 1. -
Page 20: Configuring The Mp-1Xx
MP-1xx Configuring the MP-1xx The MP-1xx is supplied with application software already resident in its flash memory (with factory default parameters). Section below describes how to assign an IP address to the MP-1xx, while Section page describes how to set up the MP-1xx with basic parameters using a standard Web browser (such as Microsoft Internet Explorer). -
Page 21: Assigning An Ip Address Using Bootp
Fast Track Installation Guide 3. Configuring the MP-1xx Record and retain the IP address and subnet mask you assign the MP-1xx. Tip: Do the same when defining new username or password. If the Embedded Web Server is unavailable (for example, if you’ve lost your username and password), use the BootP/TFTP configuration utility to access the device, “reflash”... -
Page 22: Assigning An Ip Address Via The Rs-232 Port
MP-1xx Figure 3-1: Client Configuration Screen with Blank Parameters 3.1.3 Assigning an IP Address via the RS-232 Port To assign an IP address via the RS-232, take these 6 steps: Connect the MP-1xx RS-232 port to either COM1 or COM2 RS-232 communication port on your PC with a standard RS-232 straight cable (not a cross-over cable). -
Page 23: Restoring Networking Parameters To Their Initial State
Fast Track Installation Guide 3. Configuring the MP-1xx Restoring Networking Parameters to their Initial State You can use the ‘Reset’ button to restore the MP-1xx networking parameters to their factory default values (described in Table 3-1) and to reset the username and password. Note that the MP-1xx returns to the software version burned in flash. -
Page 24: Configuring The Mp-1Xx Basic Control Protocol Parameters
MP-1xx Configuring the MP-1xx Basic Control Protocol Parameters To configure the MP-1xx basic control protocol parameters use the Embedded Web Server’s ‘Quick Setup’ screen. • For MGCP refer to Section 3.4.1 on page • For H.323, refer to Section 3.4.2 on page •... -
Page 25: Configuring Basic Mgcp Parameters
Fast Track Installation Guide 3. Configuring the MP-1xx 3.4.1 Configuring Basic MGCP Parameters After accessing the Embedded Web Server (refer to Section on page 21) the MGCP ‘Quick Setup’ screen is displayed, shown in Figure 3-3. Figure 3-3: MP-1xx MGCP Quick Setup Screen To configure basic MGCP parameters, take these 9 steps: If your network features a DNS server, in the fields ‘DNS Primary Server IP’... -
Page 26: Configuring Basic H.323 Parameters
MP-1xx In the ‘Endpoint Name’ field, enter an intuitive endpoint name. Ensure that the endpoint name you choose is the one that the Call Agent works with. Click the Reset button and click OK in the prompt; The MP-1xx applies the changes and restarts. - Page 27 Fast Track Installation Guide 3. Configuring the MP-1xx Select the coder (i.e., vocoder) that best suits your VoIP system requirements. The default coder is: G.7231 30 msec. To program the entire list of coders you want the MP-1xx to use, click the button on the left side of the ‘1 Coder’...
-
Page 28: Configuring Basic Sip Parameters
MP-1xx 3.4.3 Configuring Basic SIP Parameters After accessing the Embedded Web Server (refer to Section on page 21) the SIP ‘Quick Setup’ screen is displayed, shown in Figure 3-5. Figure 3-5: MP-1xx SIP Quick Setup Screen To configure basic SIP parameters, take these 9 steps: If the MP-1xx is behind a router with NAT enabled, take the following procedures: Determine the “public”... - Page 29 Fast Track Installation Guide 3. Configuring the MP-1xx Select the coder (i.e., vocoder) that best suits your VoIP system requirements. The default coder is: G.7231 30 msec. To program the entire list of coders you want the MP-1xx to use, click the button on the left side of the ‘1 Coder’...
-
Page 30: Example Of Connecting Two Mp-108 Devices
MP-1xx 3.4.4 Example of Connecting Two MP-108 Devices This example applies to H.323 and SIP. Figure 3-6 below shows an example of two MP-108/FXS devices’ internal routing tables. The phone ‘2001’ is connected to the first channel of gateway 10.2.222.108, and phone ‘2101’ is connected to the first channel of gateway 10.2.222.107. To make a call between two gateways, lift the receiver of phone ‘2001’;... -
Page 31: Changing The Mp-1Xx Username And Password
Fast Track Installation Guide 4. Changing the MP-1xx Username and Password The following Sections from here, up to the end of this Fast Track Guide, Note: apply equally to MGCP, H.323 and SIP. Changing the MP-1xx Username and Password To prevent unauthorized access to the MP-1xx, it is recommended that you change the username and password (both are case-sensitive) that are used to access the Embedded Web Server. -
Page 32: Restoring And Backing Up The Mp-1Xx Configuration
MP-1xx Restoring and Backing Up the MP-1xx Configuration The ‘Configuration File’ screen enables you to restore (load a new ini file to the gateway) or to back up (make a copy of the VoIP gateway ini file and store it in a directory on your computer) the current configuration the gateway is using. -
Page 33: Monitoring The Mp-1Xx
Fast Track Installation Guide 6. Monitoring the MP-1xx Monitoring the MP-1xx The MP-1xx provides several ways of monitoring the status of the gateway: • Monitoring the MP-1xx front panel LEDs (refer to Section below). • Monitoring the MP-1xx rear panel LEDs (refer to Section on page 32). -
Page 34: Rear Panel Leds
MP-1xx Rear Panel LEDs The LEDs on the rear panel are located within the RJ-45 socket. Table 6-2 describes the meaning of each state of the LEDs on the rear panel. Table 6-2: Definition of MP-1xx Rear Panel LED Indicators Label Type Color... -
Page 35: Software Update
Fast Track Installation Guide 7. Software Update Software Update The ‘Software Update’ menu enables users to upgrade the MP-1xx software by loading a new cmp file along with the ini and a suite of auxiliary files, or to update the existing auxiliary files. The ‘Software Update’... -
Page 36: Figure 7-2: Load A Cmp File Screen
MP-1xx Click the Start Software Upgrade button; the ‘Load a cmp file’ screen appears (Figure 7-2). When in the Wizard process, the rest of the Web application is unavailable and Note: the background Web screen is disabled. After the process is completed, access to the full Web application is restored. -
Page 37: Figure 7-4: Load An Ini File Screen
Fast Track Installation Guide 7. Software Update Figure 7-4: Load an ini File Screen In the ‘Load an ini File’ screen, you can now choose to either: Click Browse and navigate to the ini file; the check box ‘Use existing configuration’, by default checked, becomes unchecked. -
Page 38: Figure 7-6: Finish Screen
MP-1xx In the ‘FINISH’ screen (refer to Figure 7-6), the Next button is disabled. Complete the upgrade process by clicking Reset or Cancel . Button Result The MP-1xx ‘burns’ the newly loaded files to flash memory. The ‘Burning files to flash Reset memory’... -
Page 39: Updating The Auxiliary Files
Fast Track Installation Guide 7. Software Update Updating the Auxiliary Files The auxiliary files are configuration dat files that are loaded to the gateway (in addition to the ini file) to enable enhanced gateway provisioning. The following auxiliary files are available: coefficient, Voice Prompts, Call Progress Tones (CPT) and Prerecorded Tones (PRT). -
Page 40: Figure 7-8: Auxiliary Files Screen
MP-1xx Figure 7-8: Auxiliary Files Screen To save the loaded auxiliary files to flash memory, take these 2 steps: Click the Save Configuration button on the main menu bar; the ‘Save Configuration to the Flash Memory’ screen is displayed. Saving an auxiliary file to flash memory may disrupt traffic on the MP-1xx. To Note: avoid this, disable all traffic on the device before saving to flash memory. -
Page 41: Mp-1Xx Ip<->Pbx Test Example
AudioCodes’ MP-104/FXO mediating between the PBX/PSTN world and the IP network. is an enterprise User in Europe with its own PBX and AudioCodes’ MP-104/FXO connected to analog lines. is a SOHO (Small Office, Home Office) User in the USA, without a PBX, but with AudioCodes’... -
Page 42: Regulatory Information
Undertegnede [AudioCodes Ltd] erklærer herved, at følgende udstyr [MP-1xx/FXS Series] overholder de væsentlige krav og øvrige relevante krav i direktiv 89/336/EEC, 73/23/EEC. Dutch Hierbij verklaart [AudioCodes Ltd] dat het toestel [MP-1xx/FXS Series] in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 89/336/EEC, 73/23/EEC English Hereby, [AudioCodes Ltd], declares that this [MP-1xx/FXS Series] is in compliance with the essential requirements and other relevant provisions of Directive 89/336/EEC, 73/23/EEC. -
Page 43: Mp-11X Fxo
(including amendments A1: 1998, A2: 1998, A14: 2000) EN61000-3-3: 1995 EN60950: 2000 TBR-21: 1998 Manufacturer’s Name : AudioCodes Ltd. Manufacturer’s Address : 1 Hayarden Street, Airport City, Lod 70151, Israel. Type of Equipment : Analog VoIP System. Model Numbers :... -
Page 44: Industry Canada Notice
Undertegnede [AudioCodes Ltd] erklærer herved, at følgende udstyr [MP-1xx/FXO] overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF Dutch Hierbij verklaart [AudioCodes Ltd] dat het toestel [MP-1xx/FXO] in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG English Hereby, [AudioCodes Ltd], declares that this [MP-1xx/FXO] is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. -
Page 45: Mp-124
Undertegnede [AudioCodes Ltd] erklærer herved, at følgende udstyr [MP-124] overholder de væsentlige krav og øvrige relevante krav i direktiv 89/336/EEC, 73/23/EEC. Dutch Hierbij verklaart [AudioCodes Ltd] dat het toestel [MP-124] in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 89/336/EEC, 73/23/EEC English Hereby, [AudioCodes Ltd], declares that this [MP-124] is in compliance with the essential requirements and other relevant provisions of Directive 89/336/EEC, 73/23/EEC. -
Page 46: Safety Notice
Šiuo [AudioCodes Ltd] deklaruoja, kad šis [MP-124 Series] atitinka esminius reikalavimus ir kitas 89/336/EEC, 73/23/EEC Direktyvos nuostatas. Spanish Por medio de la presente [AudioCodes Ltd] declara que el (MP-124 Series) cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 89/336/EEC, 73/23/EEC Swedish Härmed intygar [AudioCodes Ltd] att denna [MP-124 Series] står I överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som... - Page 48 AudioCodes Ltd, 1 Hayarden Street, Airport City Lod 70151, Israel. Tel: +972-3-976 4000 Fax: +972-3-976 4040 USA Headquarters AudioCodes Inc, 2890 Zanker Road, Suite # 200 San Jose, CA 95134 Tel: +1-408-577-0488 Fax: +1-408-577-0492 AudioCodes Offices Worldwide Beijing, Boston (MA), Chicago (IL), London Mexico City, Paris, Raleigh (NC), Somerset (NJ), Tokyo info@audiocodes.com...
