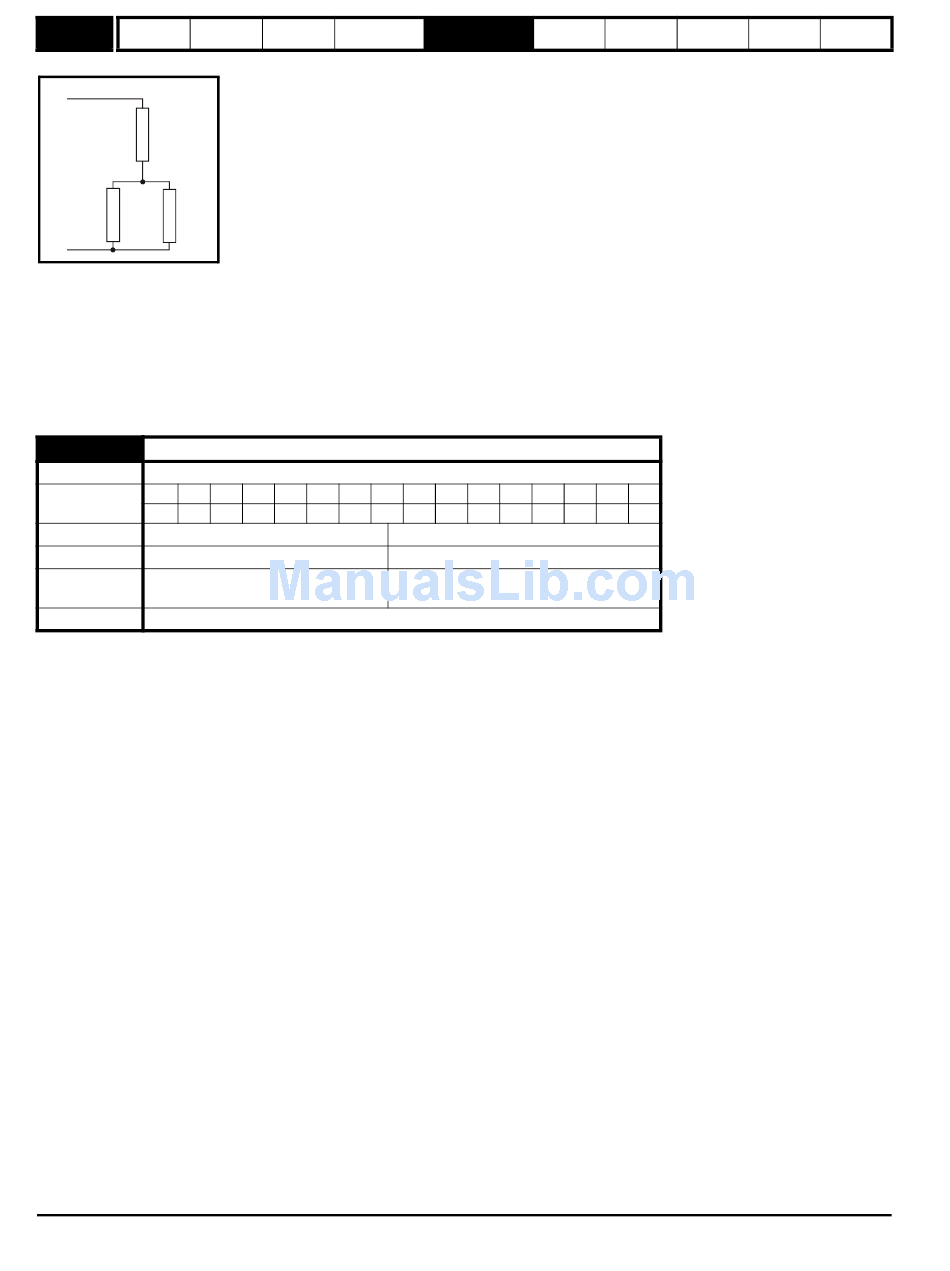

The encoder can be aligned statically by connecting the motor to a DC power supply as shown:
+
U
W
V
_
The motor will move to one of a number of positions defined by the number of motor pole pairs (i.e. 3 positions for a six pole motor, etc.). The encoder
should be adjusted so that the U commutation signal is high, W is low and V is toggling in one of these positions.
Any other feedback device
The alignment required between the no-load motor voltages and the commutation signals for Pr 3.25 = 0 is shown in the diagram below for a 2 or 4
pole motor. For higher numbers of poles 0o should still be aligned as shown, but one electrical cycle shown corresponds to 360o / (Number of poles /
2). The encoder can be aligned statically by connecting the motor to a DC power supply as already shown. The motor will move to one of a number of
positions defined by the number of motor pole pairs (i.e. 3 positions for a six pole motor, etc.). The encoder should be adjusted so that the position
displayed by the drive is n x 65536 / (Number of poles / 2), where n = 0, 1, ... (Number of poles / 2)

Speed feedback selector

3.26
Drive modes Closed-loop vector, Servo
Bit SP
Coding
Range Closed-loop vector, Servo
Default Closed-loop vector, Servo
Second motor
Closed-loop vector, Servo
parameter
Update rate Background read (Only has any effect when the drive is disabled)
0, drv: Drive encoder
The position feedback from the encoder connected to the drive itself is used to derive the speed feedback for the speed controller and to calculate
the motor rotor flux position.
1, Slot1: Solutions Module in slot 1
The position feedback from the Solutions Module in Solutions Module slot 1 is used to derive the speed feedback for the speed controller and to
calculate the motor rotor flux position. If a position feedback category Solutions Module is not fitted in slot 1 the drive produces an EnC9 trip.
2, Slot2: Solutions Module in slot 2
3, Slot3: Solutions Module in slot 3
