Cable Management Devices

Depending on your server configuration and the number of installed PCIe cards, you
will route multiple cables and power cords either up to overhead cable trays or down
under the floor.

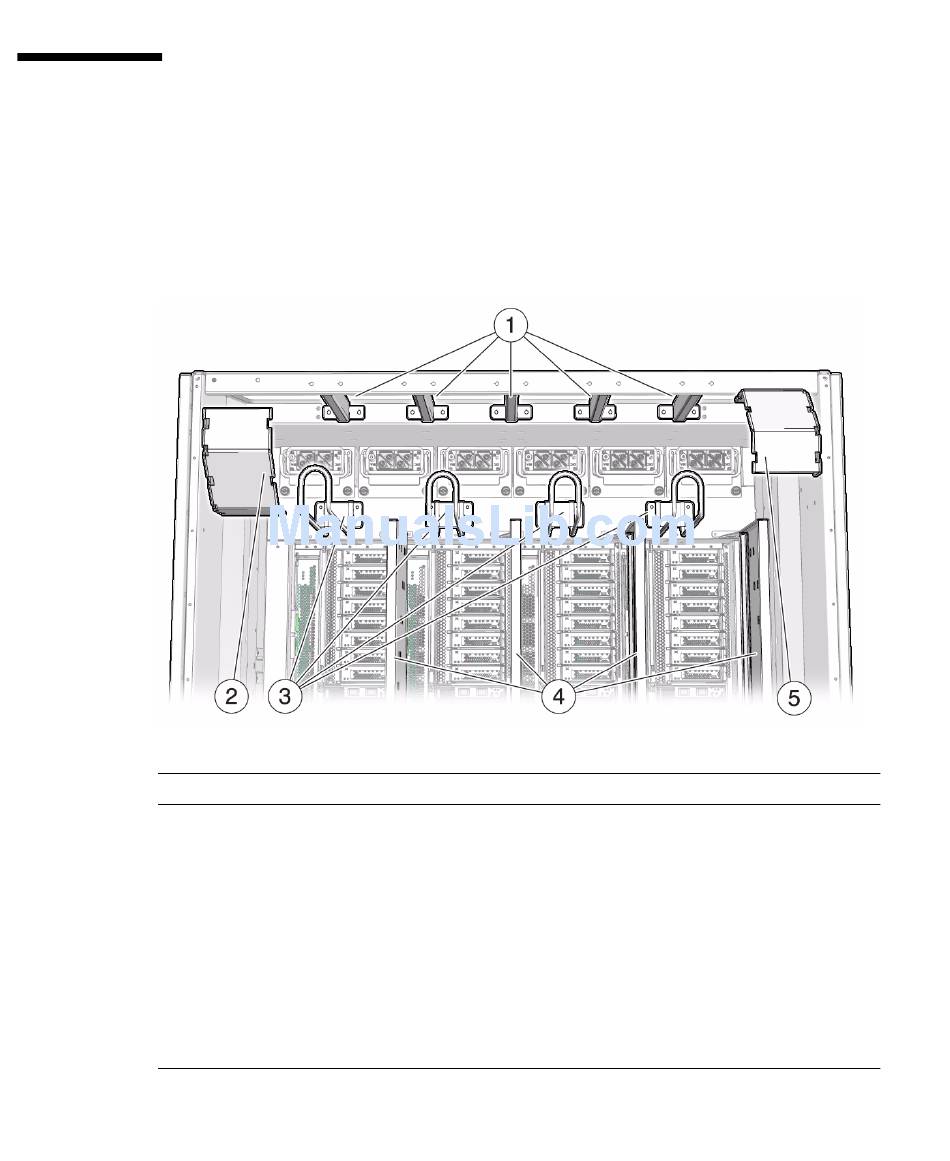

The server provides various cable brackets, hooks, and supports that enable you to
securely route the cables through the server.
No.
1
2
3
4
5
122 SPARC M5-32 and SPARC M6-32 Servers Installation Guide • December 2014
Management Device
Power cord supports
Left cable bracket
Cable hooks
Cable partitions
Right cable bracket
Description
Use tie-wraps to secure power cords to these supports.
Use this bracket to direct the data cables either upward or
downward. This illustration shows the bracket installed
upward to direct the cables up through the top of the server.
Use these hooks to support the weight of the data cables.
Use tie-wraps to secure the data cables to these partitions
when routing the cables up to the cable hooks.
Use this bracket only when routing the power cords down
through the bottom of the server. This bracket directs the
power cords downward.
