3. Route the right two SP cables connected to SP1 down and out of the server.
When installed, the kick plate will secure these cables to the server. There are two
slots in the kick plate, one on the top of the kick plate and one on the bottom, that
enable the cables to exit the server.

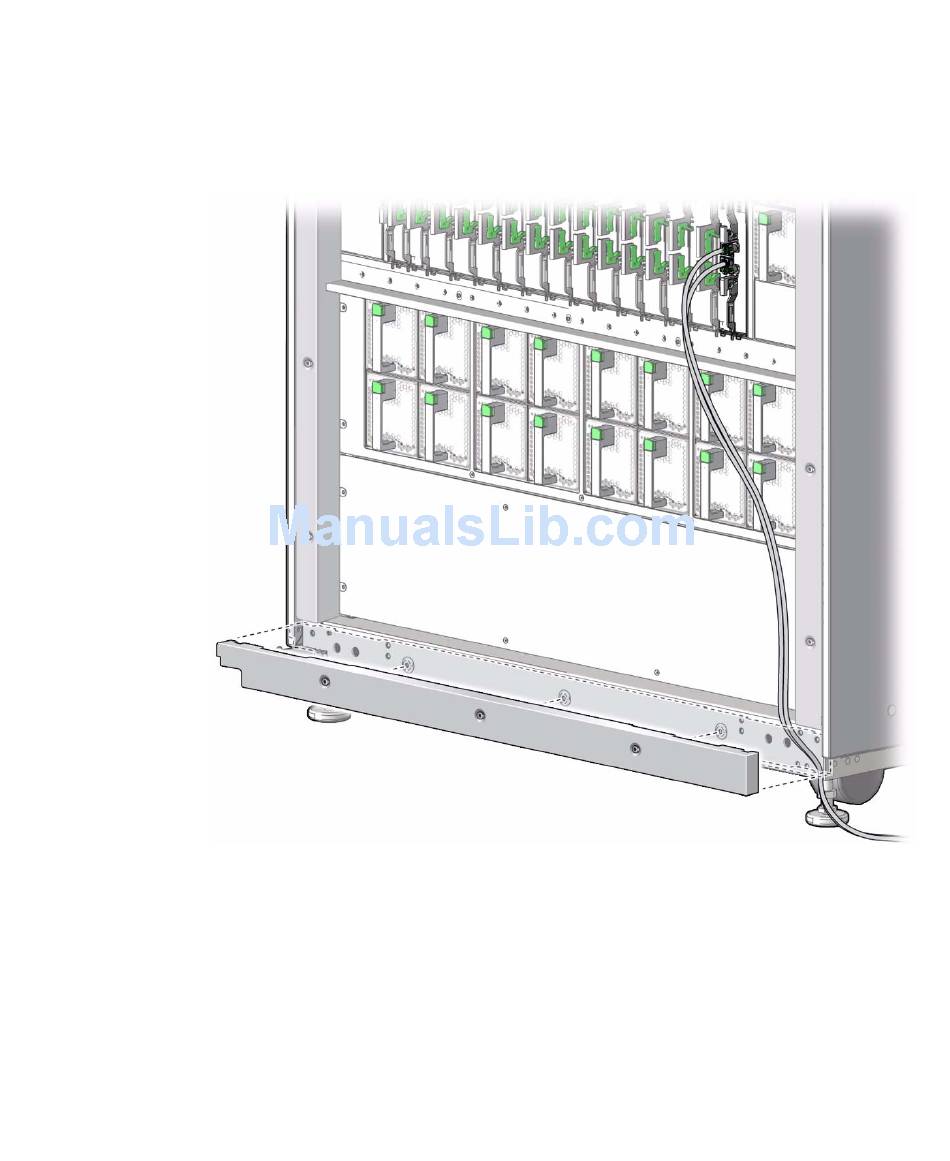

The illustration shows how to route the right two SP cables of the server.
4. Use a T20 Torx screwdriver to secure the kick plate to the front of the server.
Do not pinch or bend the SP cables when installing the kick plate. The four SP
cables should pass freely out of the server on the right and left sides.
Connecting the Front SP Cables
105
