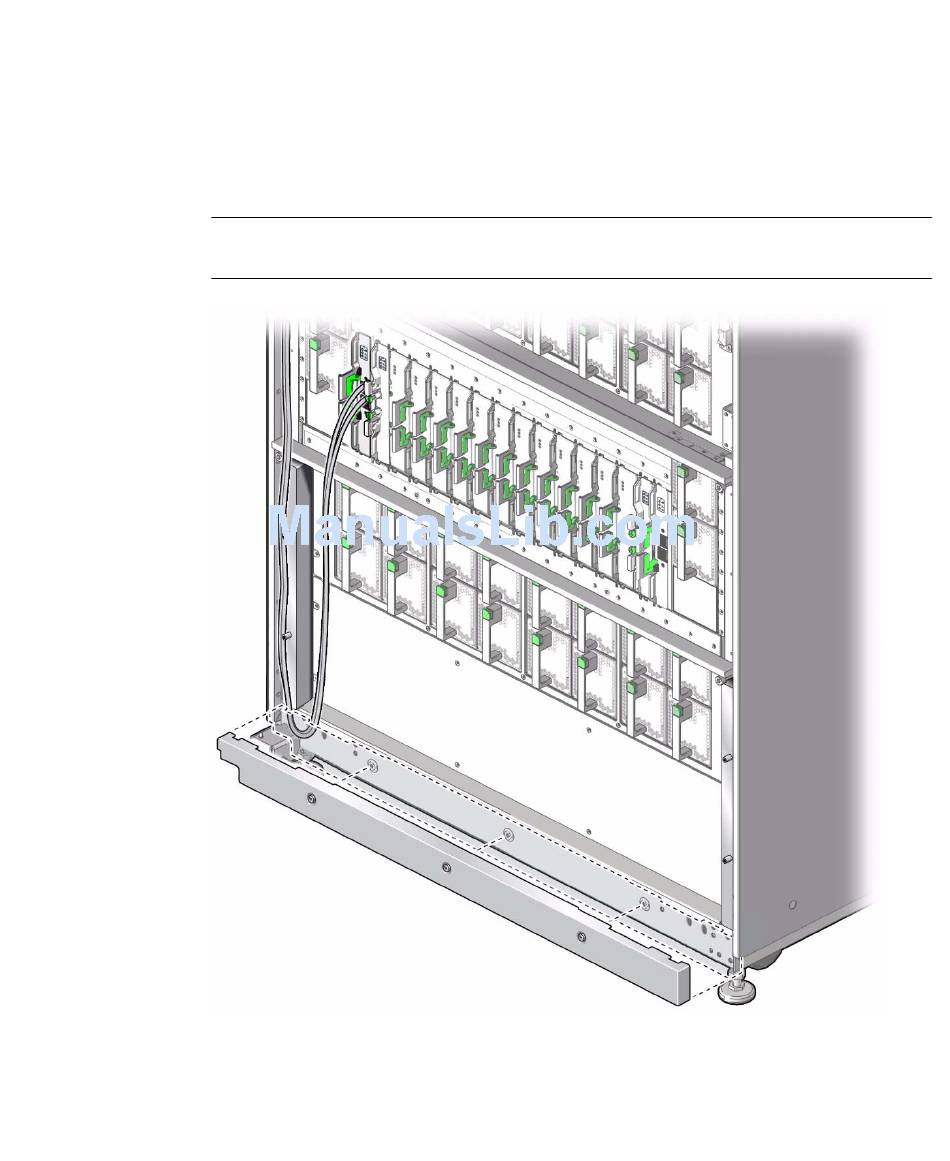

3. Route the two left SP cables from SP0 down to the lower left corner of the
server and then up the left channel.
There are two slots on the top left of the kick plate that enable you to route the
cables down and then bend them up the channel secured by the left trim panel.
When installed, the kick plate and the left trim panel will secure the SP cables to
the server.
Note – Do not kink the cables when bending them up the left channel, and ensure
that the cables are on the left side of the screw stand-offs.
Connecting the Front SP Cables
109
