Install a Storage Drive Filler Panel (CRU)

For information about component filler panels, see
1. Verify that the release lever on the storage drive filler panel is fully opened.
To open the lever, push the release button on the front of the filler panel.
2. Slide the storage drive filler panel into the drive slot until it is fully seated.
3. Close the latch to lock the filler panel in place.
"Storage Drive Reference" on page 113
See Also ■

Storage Drive Reference

This section shows the location and explains the functions of the storage drive status indicators.

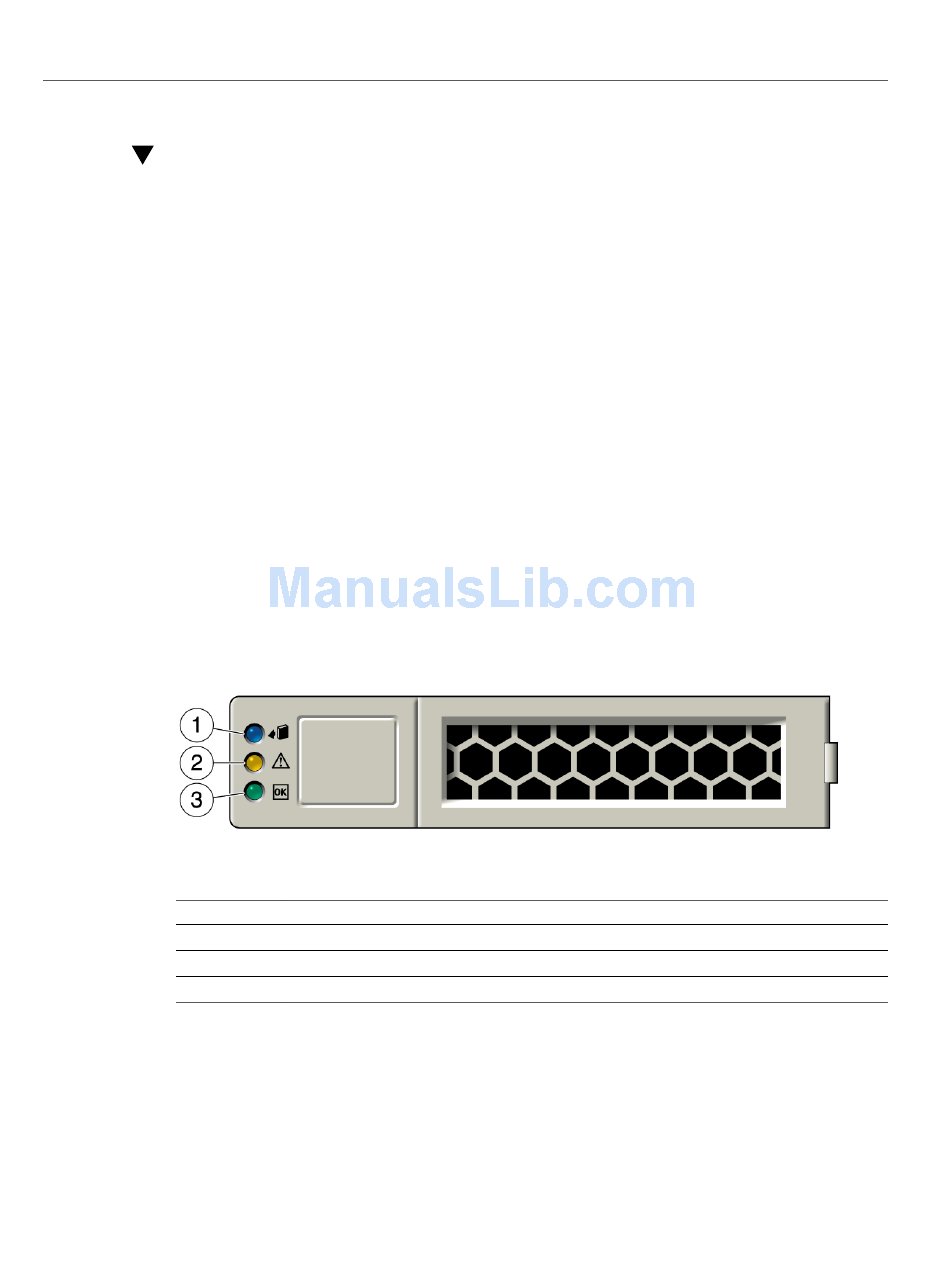

Figure Legend
1
2
3
The functions of the drive status indicators are described below.
For indicator blink rate information, see
Description
OK to Remove indicator
Service Action Required indicator
OK/Activity indicator

Install a Storage Drive Filler Panel (CRU)

"Component Filler Panels" on page
"Indicator Blink Rates" on page
76.
43.
Servicing CRU Components 113
