Replace the Power Supply Backplane Board (FRU)

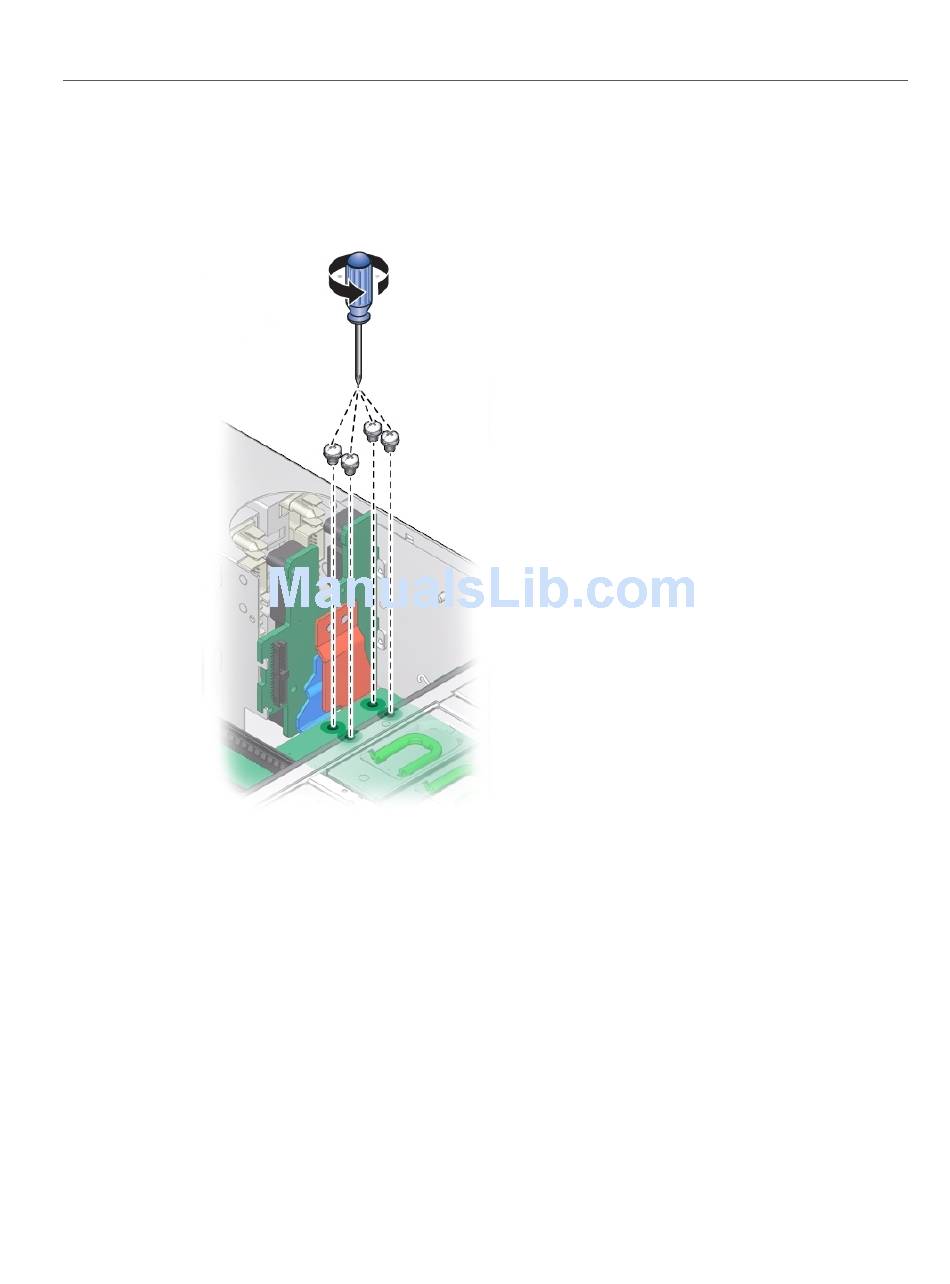

The backplane board rests on the two support flanges. The bus bars are attached at contact pads
underneath the motherboard.
13.
Loosen the green captive screw that secures the motherboard to the chassis.
200
Sun Server X4-4 Service Manual • October 2015
