Oracle Sun Server X4-4 Service Manual page 119

The fan modules are keyed to ensure that they are installed in the correct orientation.

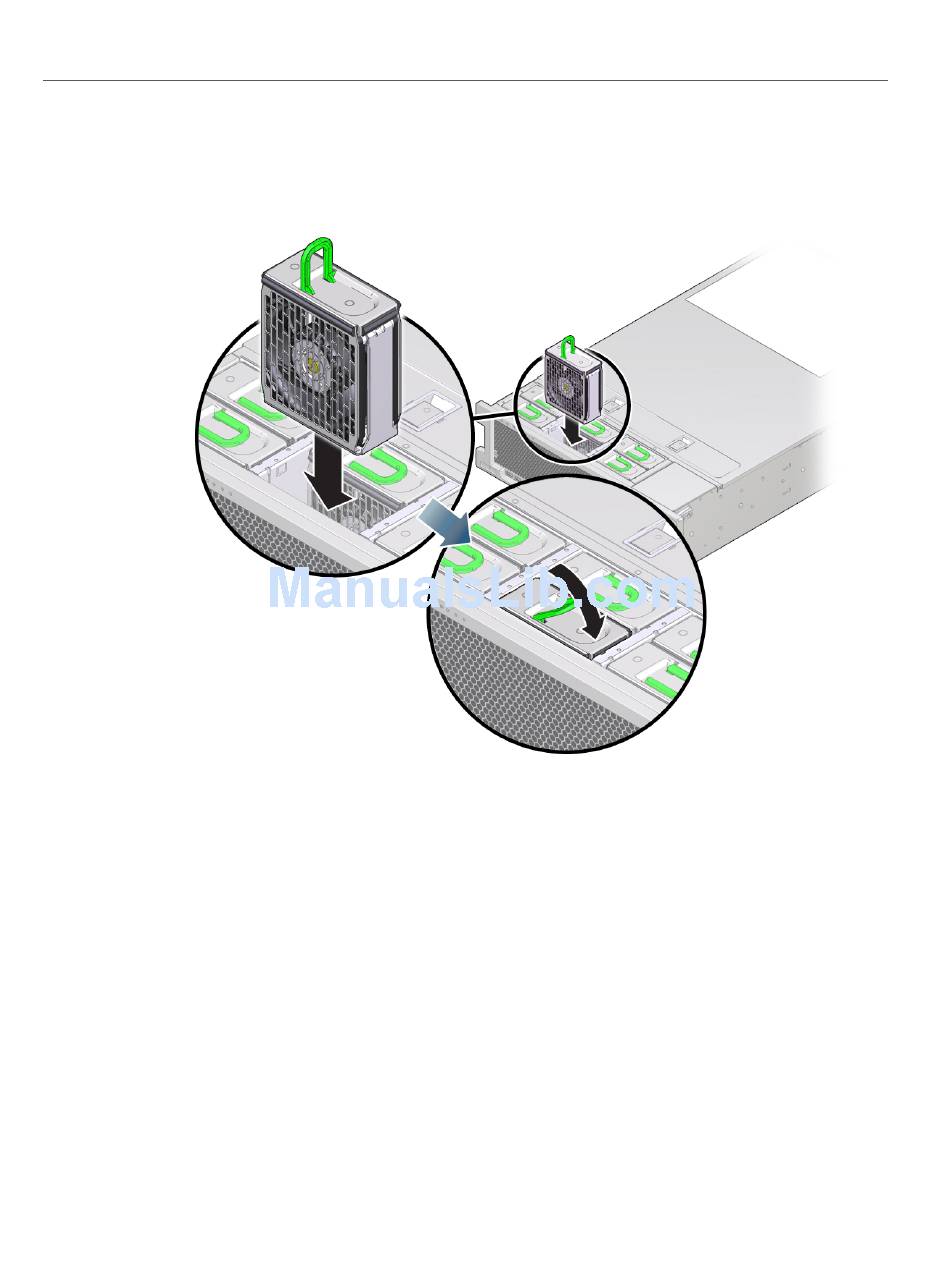

3. Slide the fan module into the slot until is stops.
4. Press downward on the top of the fan module at the Press Here to Latch label
until the fan module is fully seated.
Verify that the green OK indicator is lit.
5.
Verify that the Top Fan indicator and the Service Action Required indicator on
6.
the server front panel are not lit.
See "Server Front Panel Features" on page 19
locations of system indicators.
If necessary, return the server to the normal rack position.
7.
a. Ensure the cables are free from binding and pinching.
and "Server Back Panel Features" on page 20
Servicing CRU Components
Install a Fan Module
for
119
