Oracle Sun Server X4-4 Service Manual page 218

Install the SP Card (FRU)

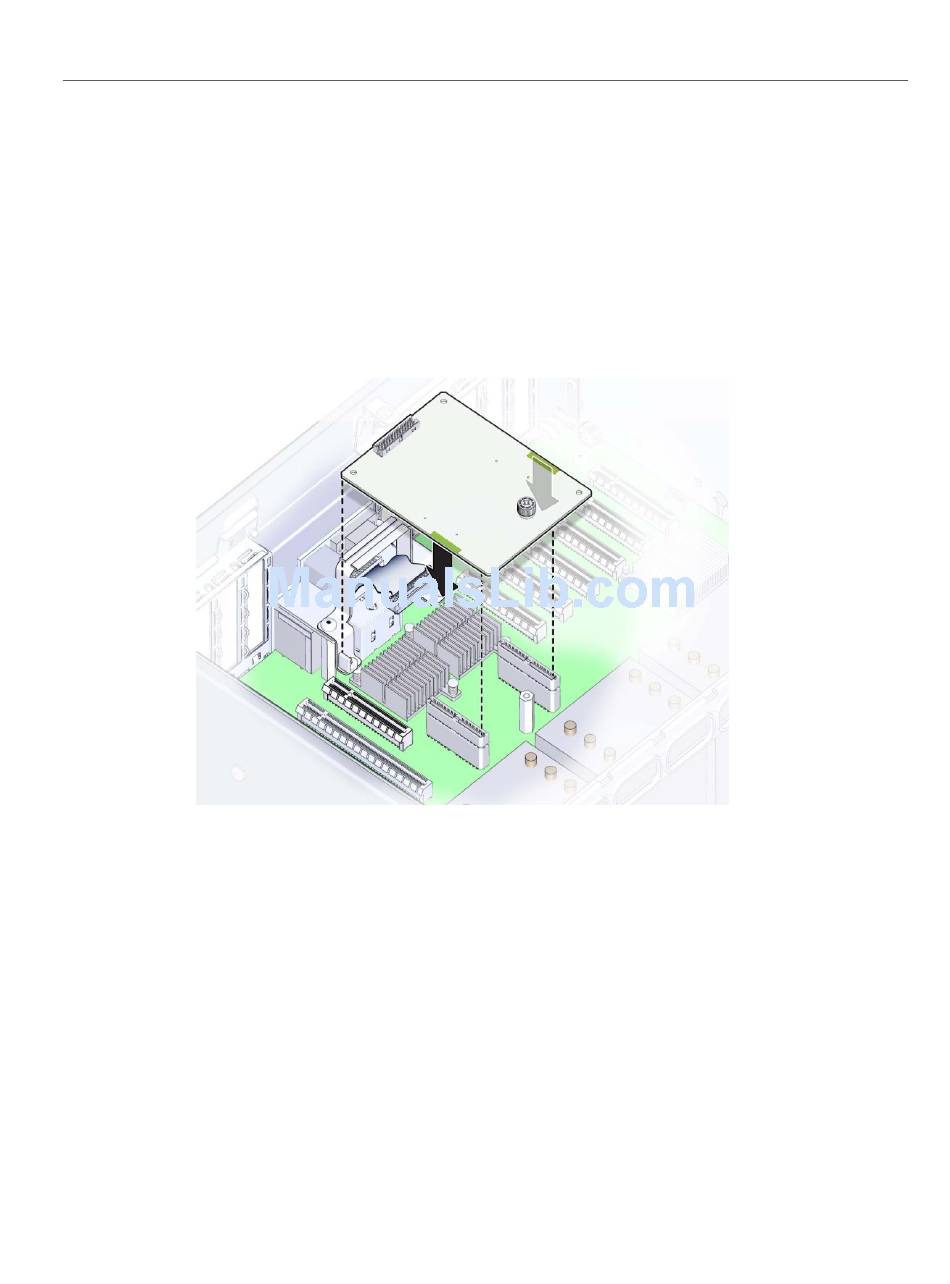

1. Position the SP card with the two motherboard connectors facing downward.
The green captive screw head faces upward.
2. Align the connectors on the bottom of the SP card with the connectors on the
motherboard.
Use the screw hole and card mounting bracket to assist with the alignment. When correctly
positioned, the mounting bracket cradles the edges of the card.
3. To engage the two connectors, gently push the card downward at the two green
pressure points on the edges of the card.
218 Sun Server X4-4 Service Manual • October 2015
