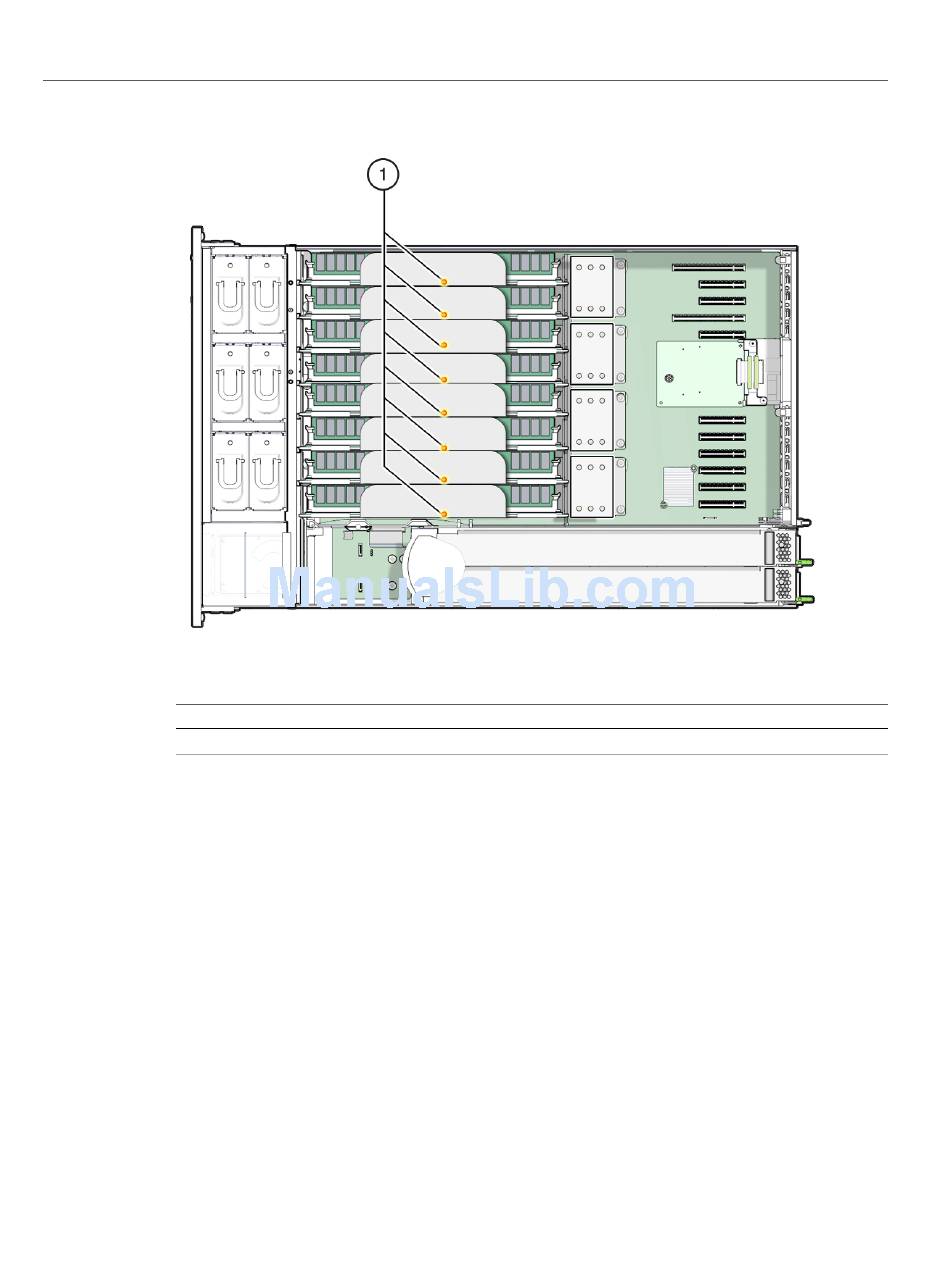

Figure Legend
Description
1
Memory riser card Fault indicators
CPU Fault Indicators
The CPU Fault indicator LEDs are located on the motherboard between the memory riser
cards and the CPU. To see a lit CPU Fault indicators, look down from the top of the server
and sight through the memory riser cards and the support bracket near the CPU. The following
illustration shows the location of the CPU Fault indicators.
Locating a Failed Memory Riser Card, DIMM, or CPU
Servicing the Server
79
